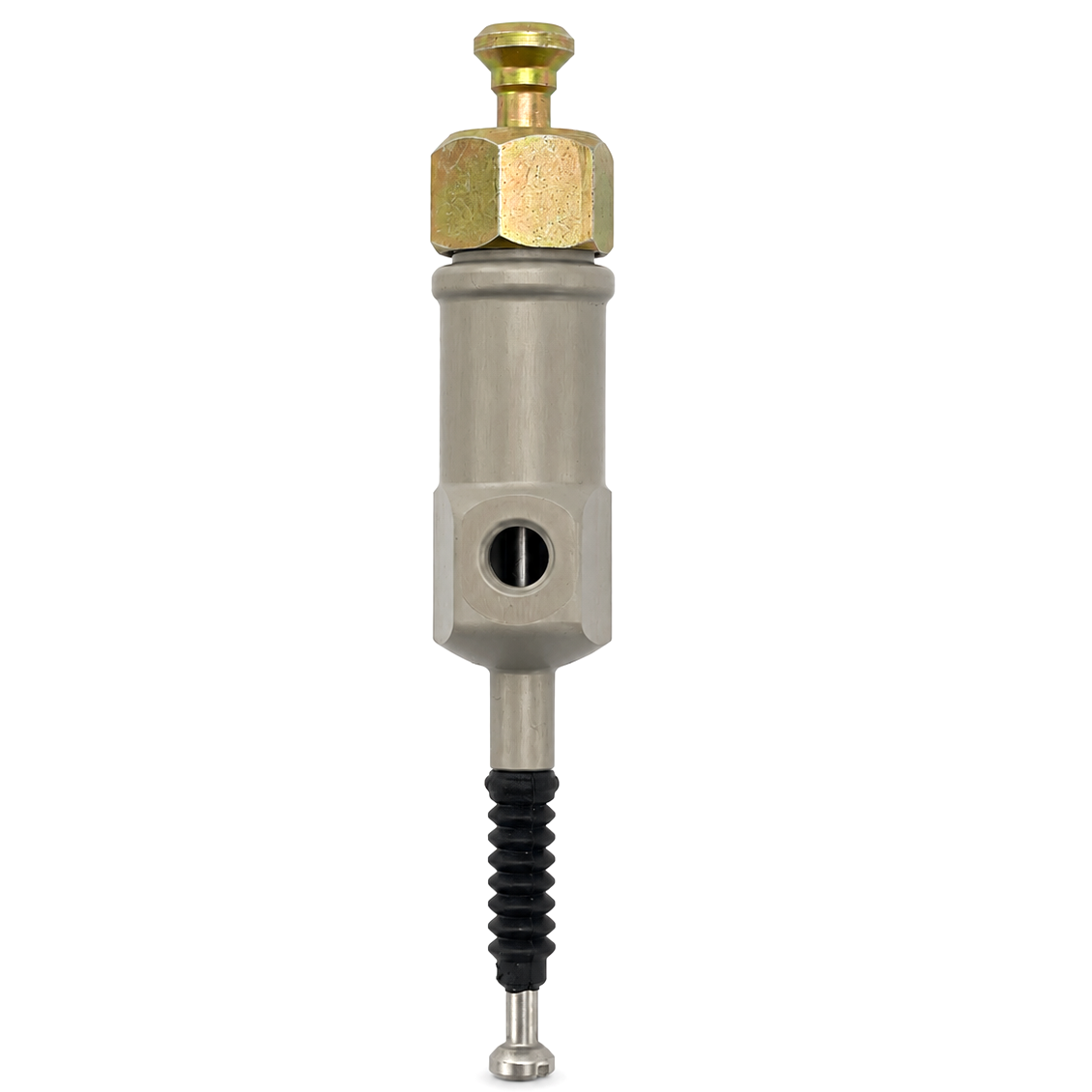

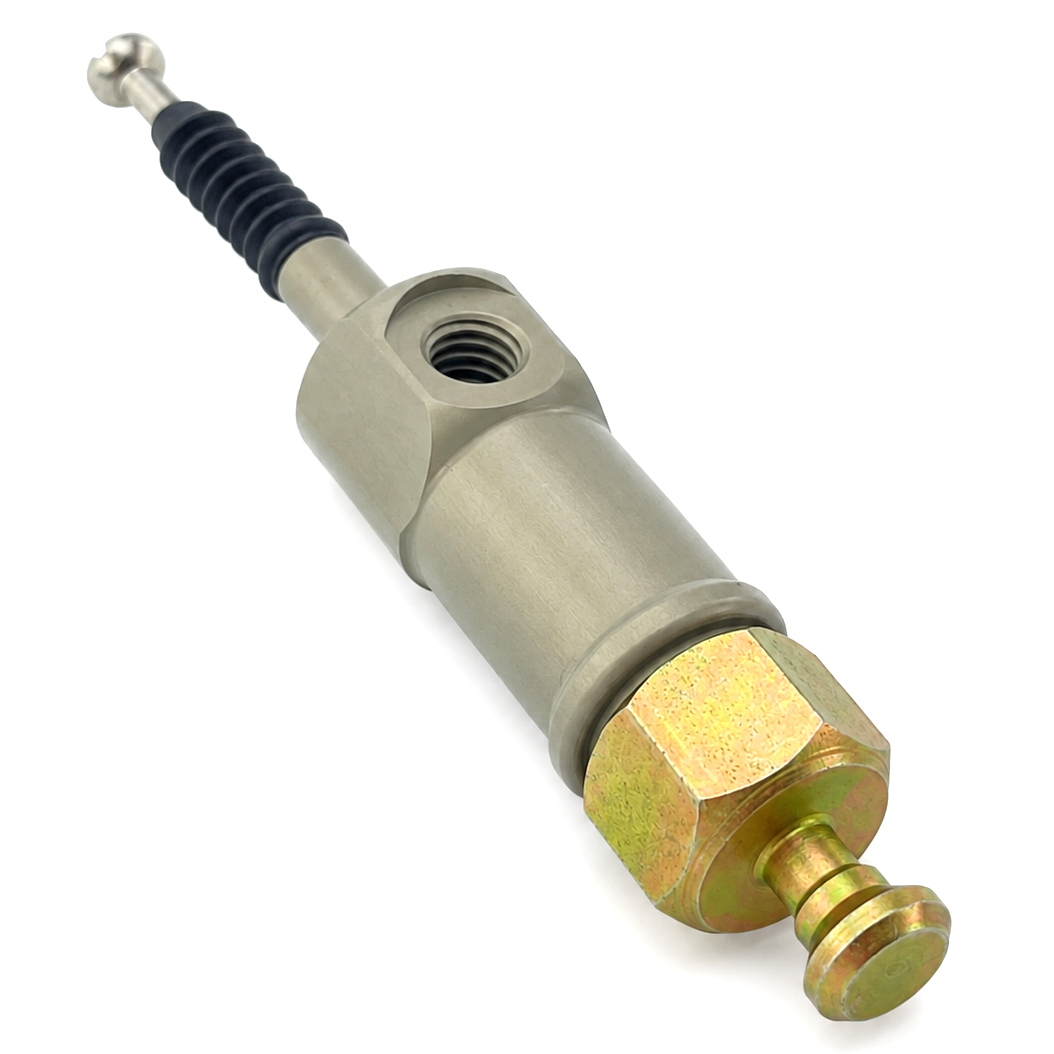

SLAVE CYLINDER CR250 31/47mm, MAGURA 0120648
Magura Hymec Slave Cylinder 10.5 x 31/47mm. Withdrawn length 31mm, activated length 46-48mm. Does not come with locating collet. 10.5mm piston diameter. Fully withdrawn length 31mm. Stroke when bled correctly. Part No. 13-053.47. Cross reference numbers: 0430985, 0488255.
- SKU
- 13-053.47
- Brand
- Magura
- Availability
- Out of Stock
FULL DESCRIPTION
Magura Hymec Slave Cylinder 10.5 x 31/47mm
This is a high-quality slave cylinder designed for motorcycle clutch systems. Engineered by Magura, a renowned leader in hydraulic clutch technology, this slave cylinder ensures smooth and reliable operation of your clutch.
Key Features:
- Piston Diameter: 10.5mm
- Fully Withdrawn Length: 31mm
- Activated Length: 46-48mm
- Brand: Magura
- Part Number: 0120648
- Note: Does not include the locating collet.
To measure the fully withdrawn length, remove the slave cylinder from the clutch arm. Carefully activate the master cylinder until the slave cylinder activation rod is fully withdrawn into the slave cylinder body. Measure the distance from the shoulder of the sleeve where the rod protrudes from the slave cylinder to the nipple at the end of the rod. If the slave cylinder is dry, manually push the rod into the cylinder until the piston touches the bronze cap.
Cross Reference Numbers: 0430985, 0488255
