PISTON KIT LTZ400 94.00, FORGED WOSSNER 8563D400
Wossner forged piston kit with a 94mm bore (93.94mm actual) features an elliptical design for even load distribution, reducing localized pressure and preventing piston collapse. Engineered for strength and optimal heat transfer, this piston maintains OEM compression specifications. Manufactured in Germany. Bore Size: 94mm (93.94mm actual), Displacement: 398 cm³, Stroke: 62.60mm, Clearance: 0.06mm, Compression Ratio: OEM specification (12.20:1), Dome Volume: -2.00 cm³, Compression Height: 25.30mm. Kit includes piston, lock (CW20), pin (WP038), ring set (940XSY), and rod (P4009). Piston Kit part number: 8563D400.
- SKU
- 56-W4713_400.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit 94.00mm for Suzuki LT-Z400 / DRZ400
This Wossner forged piston kit features a 94mm bore (93.94mm actual) and is engineered for high performance and durability. Manufactured in Germany, this piston kit is designed to meet OEM compression specifications while offering enhanced strength and heat transfer capabilities.
Key Features:
- Forged Construction: Provides superior strength and longevity compared to cast pistons, ideal for demanding applications.
- Optimized Heat Transfer: Designed for efficient heat dissipation to the cylinder walls, promoting better engine performance and reliability.
- Elliptical Piston Design: Ensures uniform bearing surface distribution, reducing localized pressure and preventing piston collapse under extreme conditions.
- German Engineering: Manufactured to stringent quality standards for consistent and dependable performance.
- OEM Compression Ratio: Maintains the original equipment manufacturer's compression ratio for seamless integration and predictable power output.
Specifications:
- Bore Size: 94.00mm (93.94mm actual)
- Displacement: 398 cm³
- Stroke: 62.60mm
- Piston Clearance: 0.06mm
- Compression Ratio: 12.20:1 (OEM Specification)
- Dome Volume: -2.00 cm³
- Compression Height: 25.30mm

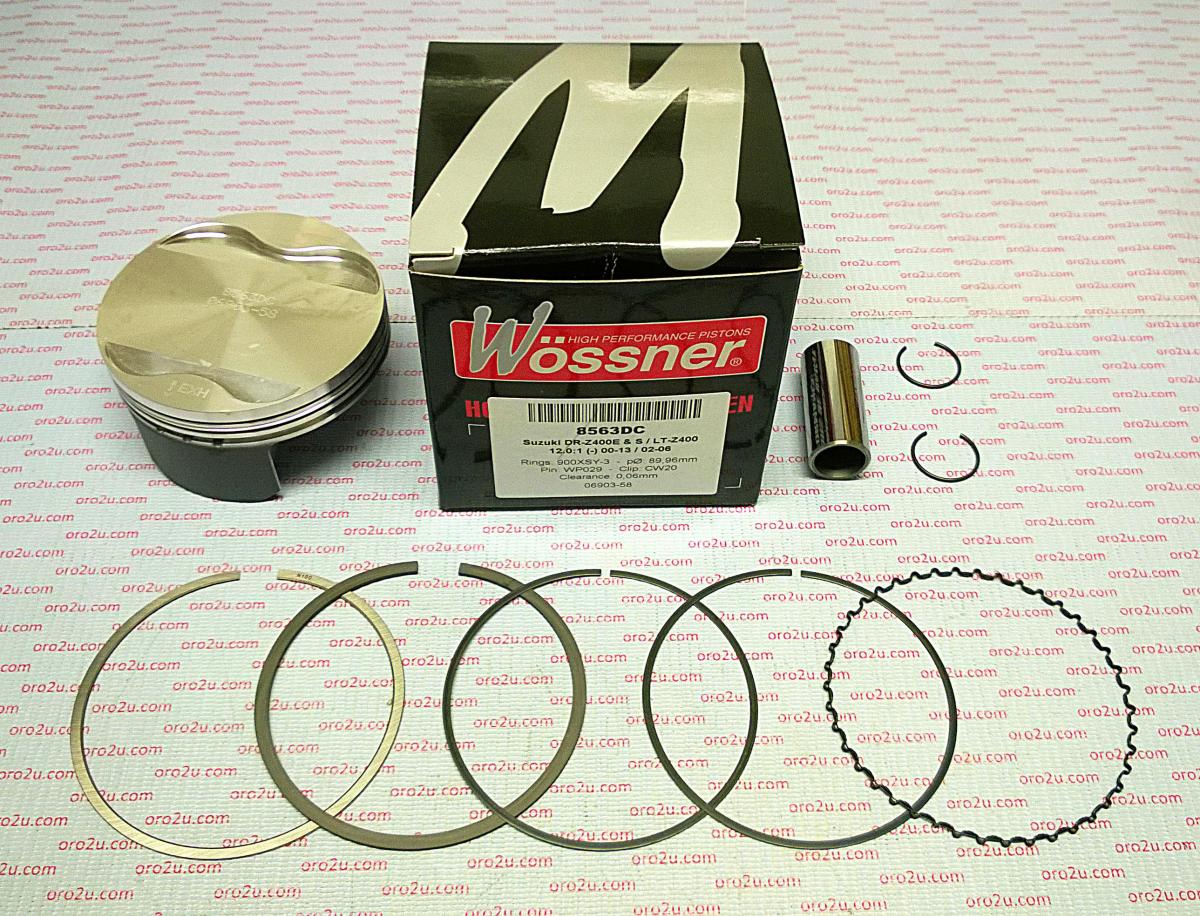

Kit Components:
- Piston
- Piston Pin
- Piston Rings
- Circlips
