CONNECTING ROD KIT 76-81 YAMAHA DT MX 175 VINTCO KR2076
CONNECTING ROD KIT 76-81 YAMAHA DT MX 175 VINTCO KR2076. This complete connecting rod kit for 1976-1981 Yamaha DT175 and 1979-1981 Yamaha MX175 models includes a heavy duty forged steel connecting rod, crank pin, big end bearing, wrist pin bearing, and two thrust washers. It is intended for connecting rod replacement and engine rebuild applications. VintCo Part Number KR2076. Connecting rod material is forged steel. Crank pin size is 12 x 22 x 54.5 mm. Big end bearing size is 22 x 28 x 15.8 mm. Wrist pin bearing size is 16 x 20 x 22.5 mm. Thrust washer size is 22.25 x 37.1 x 1.0 mm. Weight is 541 grams.
- SKU
- VIN-KR2076
- Brand
- Vintco
- Availability
- In Stock (1)
FULL DESCRIPTION
Connecting Rod Kit for Yamaha DT175 and MX175
This comprehensive connecting rod kit provides the essential components for servicing or rebuilding the connecting rod assembly on select Yamaha DT175 and MX175 models. Ensure your engine's internal components are functioning optimally with this high-quality replacement kit.
Key Features:
- Heavy duty forged steel connecting rod for increased durability and performance.
- Complete kit includes all necessary parts for a full connecting rod service.
- Designed for direct replacement and engine rebuild applications.

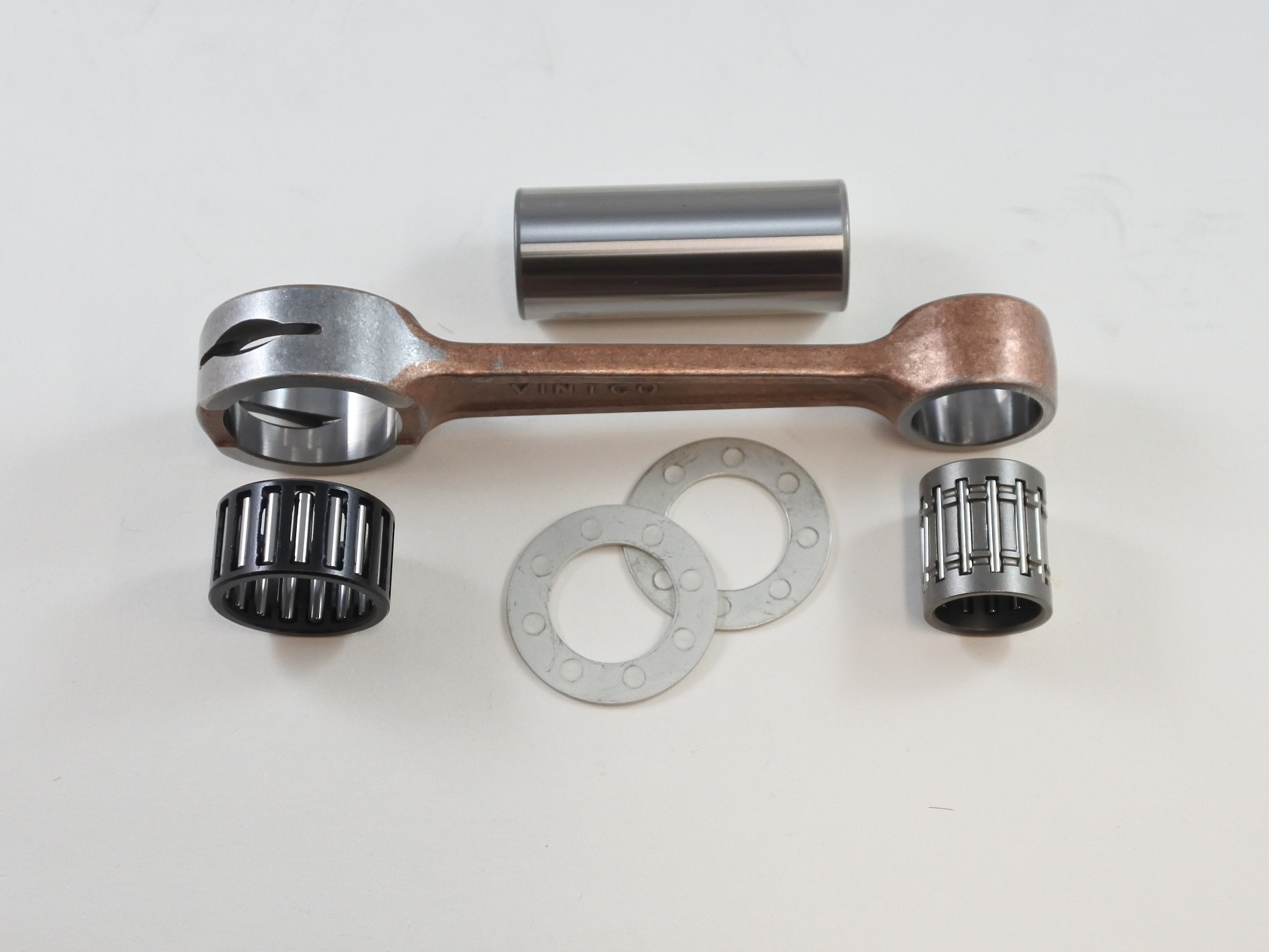

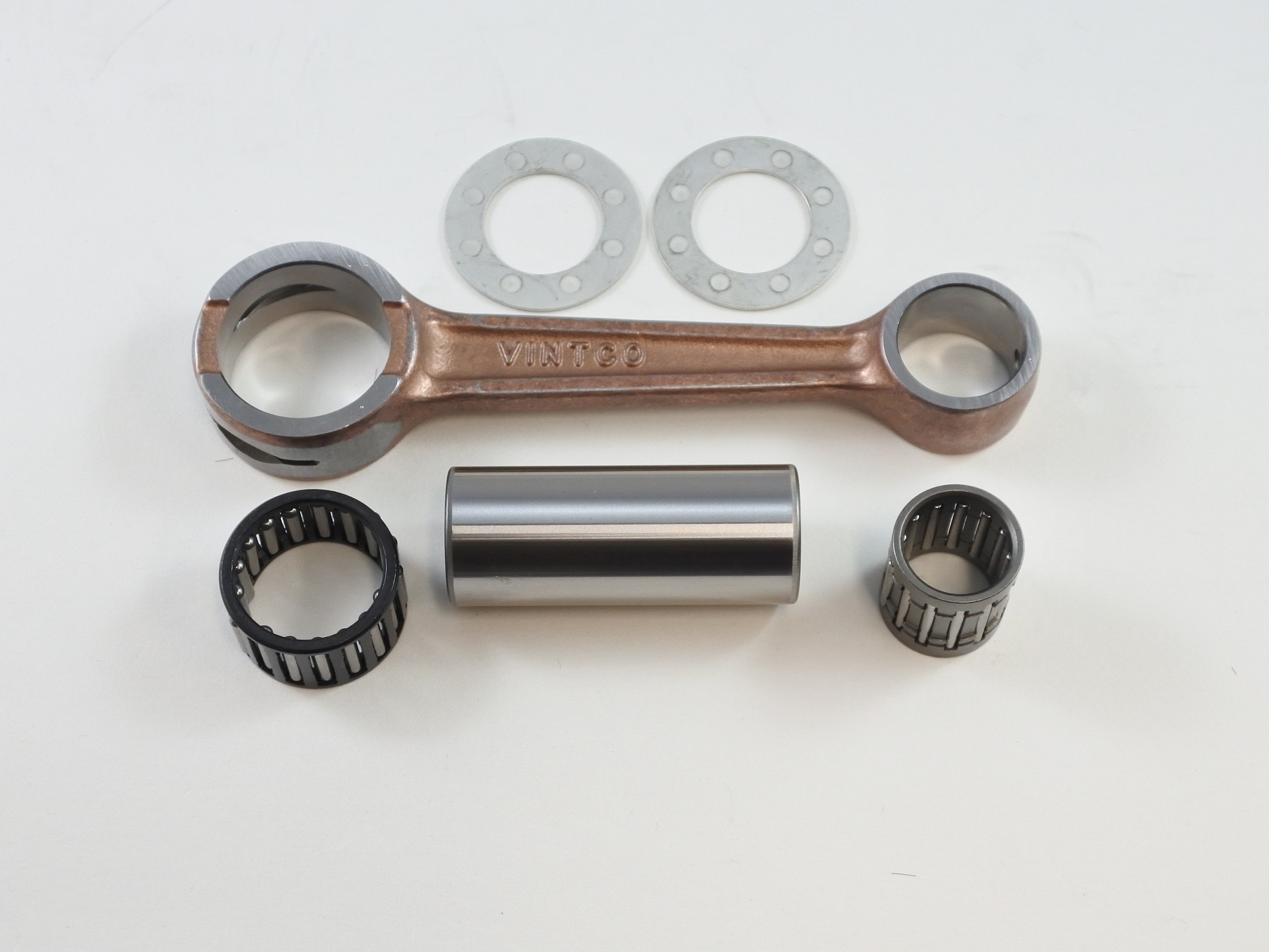

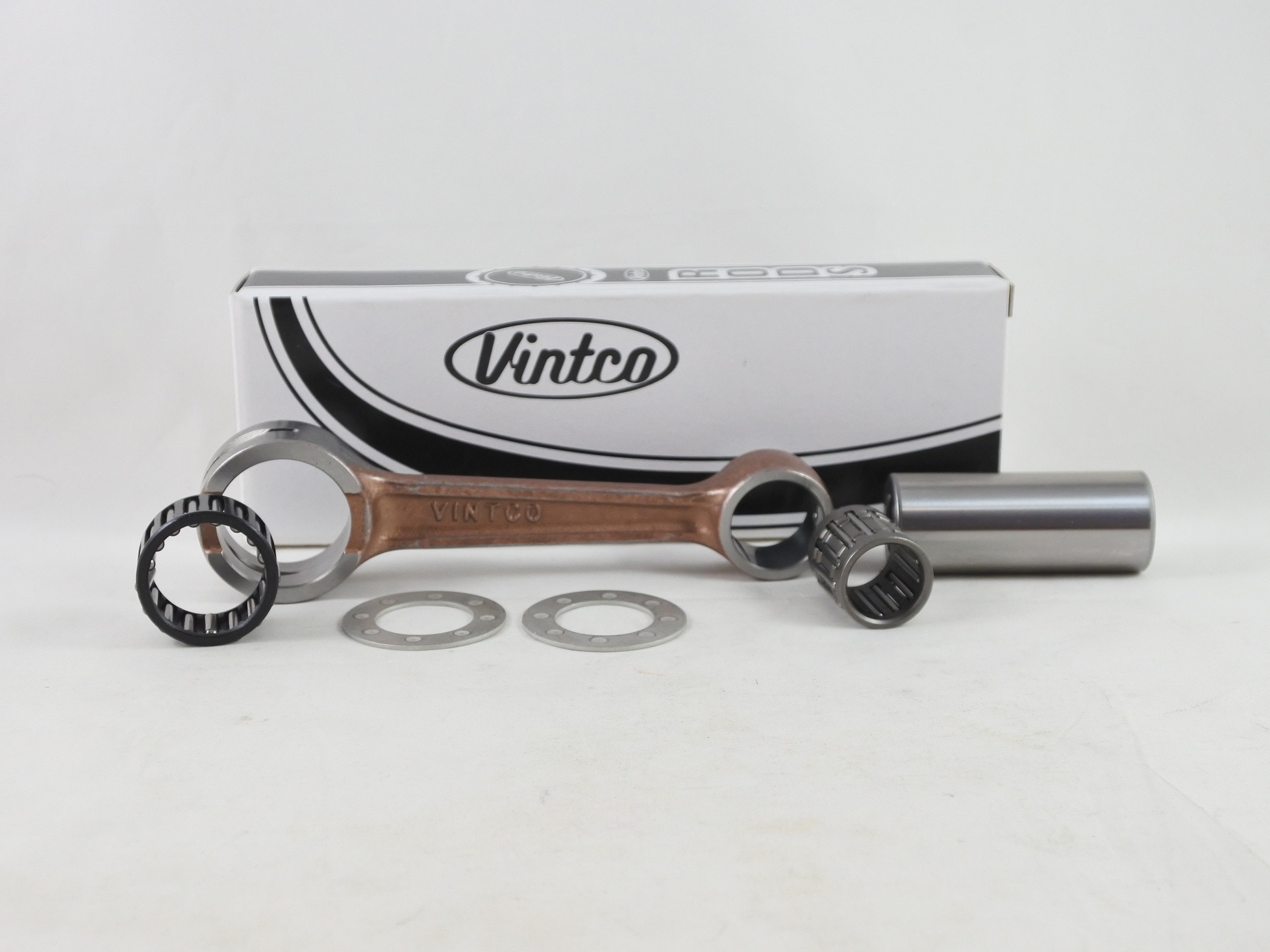

Kit Components:
- Heavy duty forged steel connecting rod
- Crank pin
- Big end bearing
- Wrist pin bearing
- Two thrust washers
Specifications:
- Connecting Rod Material: Forged Steel
- Crank Pin Dimensions: 12 x 22 x 54.5 mm
- Big End Bearing Dimensions: 22 x 28 x 15.8 mm
- Wrist Pin Bearing Dimensions: 16 x 20 x 22.5 mm
- Thrust Washer Dimensions: 22.25 x 37.1 x 1.0 mm
- Manufacturer: Vintco
