TOP END PISTON KIT 88-88 SUZUKI RM 125 55.5mm 1.5mm OVER VINTCO KTS20-1.5
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days

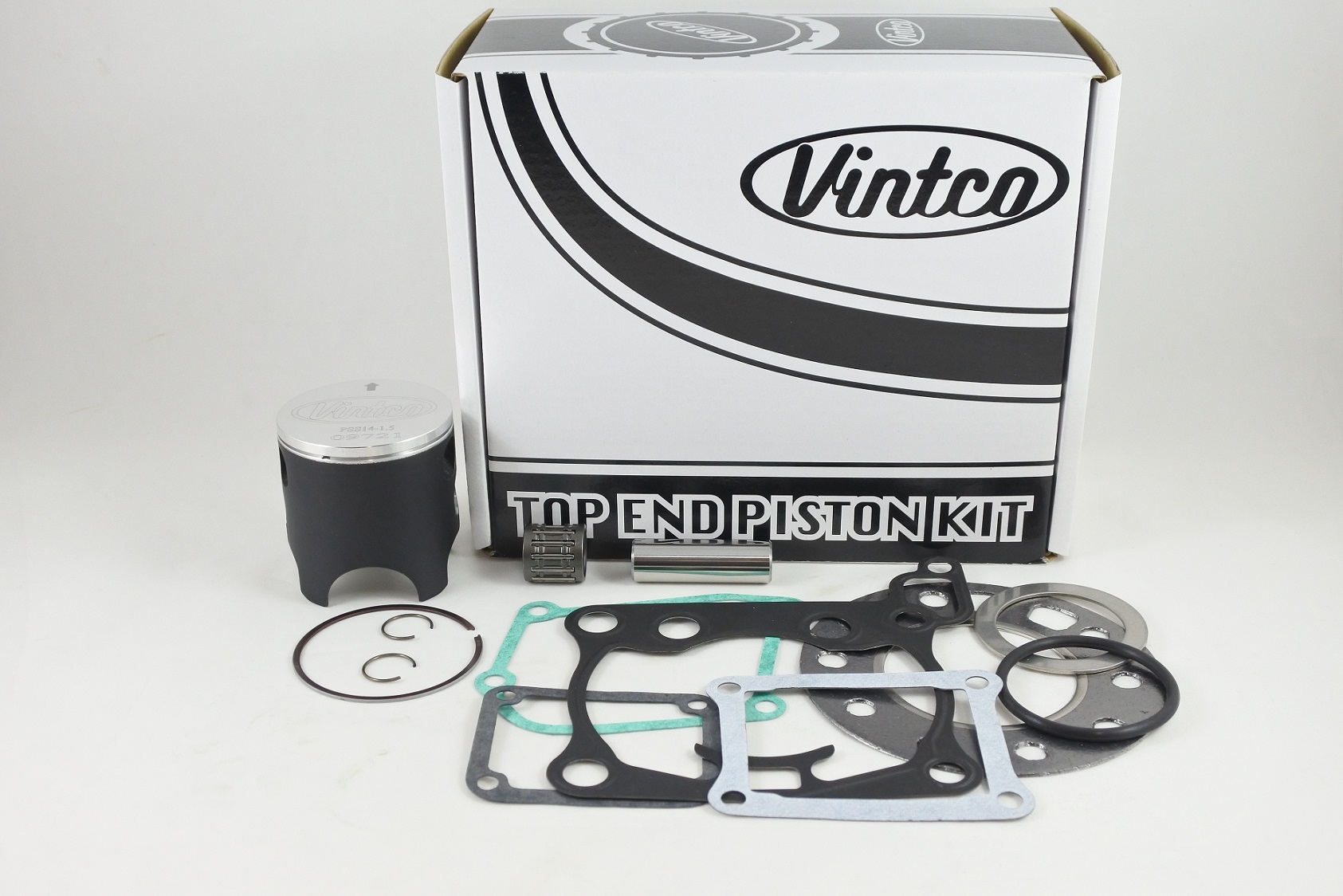

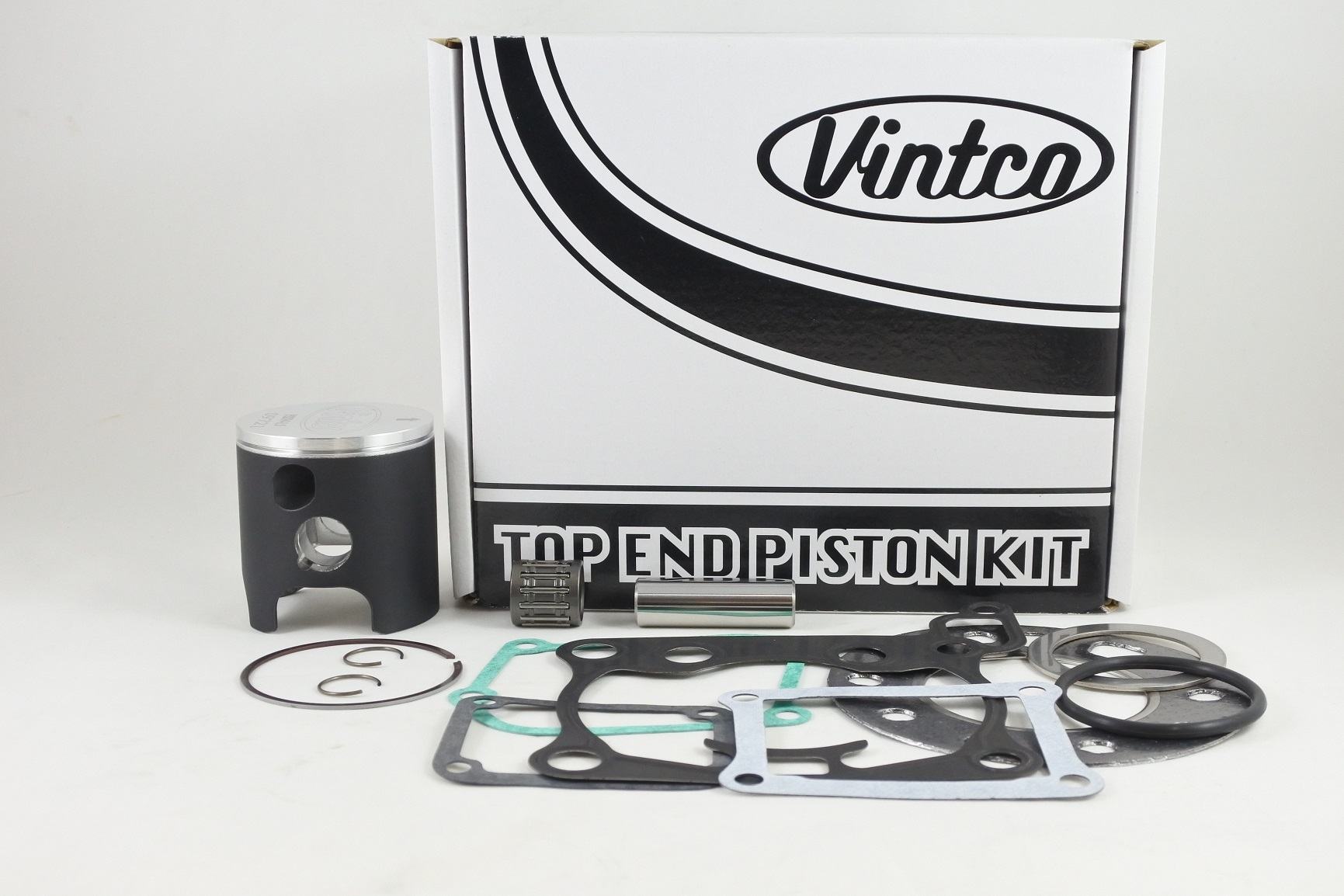

VintCo top end piston kit KTS20-1.5 includes a forged piston, rings, pin and clips, a top end bearing, and a full top-end gasket kit. The kit covers the head, base, intake, and exhaust areas. Components are produced using modern materials and manufacturing methods for OEM-equivalent or better fit and performance. The piston is MOS2 coated for running-in and is made in Germany. Kit size designation is 55.5 mm with an oversize of +1.5 mm. Piston diameter is 55.44 mm, piston-to-cylinder clearance is 0.06 mm, and wrist pin bearing dimensions are 15 x 19 x 19.5 mm. Cross-reference OEM part numbers include: Cylinder Head Cover Gasket: 11141-01B32, Cylinder Base Gasket: 11241-01B20-H17, Reed Valve Gasket: 13156-03D10, Cylinder Cover Gasket: 11233-01B30-H17, Cylinder Cover Gasket: 11238-01B30-H17, Exhaust Pipe Gasket: 14171-01B21, Exhaust Pipe Gasket: 14172-01B21.
- SKU
- VIN-KTS20-1.5
- Brand
- Vintco
- Availability
- Out of Stock
Fitments (1)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM 125 | 1988 |
- SKU
- VIN-KTS20-1.5
- Brand
- Vintco
- Availability
- Out of Stock
FULL DESCRIPTION
VintCo Top End Piston Kit for Suzuki RM 125 (1988) - 55.5mm
Restore your 1988 Suzuki RM 125's performance with this comprehensive VintCo top end piston kit. Designed for an optimal rebuild, this kit provides all the essential components needed to refresh your engine's upper end.
Crafted using modern materials and advanced manufacturing techniques, VintCo ensures that each part meets or exceeds original equipment specifications for reliable fit and enhanced performance. This kit offers a cost-effective solution compared to purchasing individual components.
Key Features:
- Complete top-end rebuild solution for simplified installation.
- Includes a high-quality forged piston with MOS2 coating for efficient break-in.
- Comes with piston rings, wrist pin, and clips.
- Features a top-end bearing for smooth operation.
- Includes a full top-end gasket kit for cylinder head, base, intake, and exhaust sealing.
- Manufactured in Germany to exacting standards.
- Engineered for OEM-equivalent or superior fit and performance.
- Additional oversized options are available to suit specific needs.
Specifications:
- Kit Size Designation: 55.5 mm
- Oversize: +1.5 mm
- Piston Diameter: 55.44 mm
- Piston to Cylinder Clearance: 0.06 mm
- Wrist Pin Bearing Dimensions: 15 mm x 19 mm x 19.5 mm
