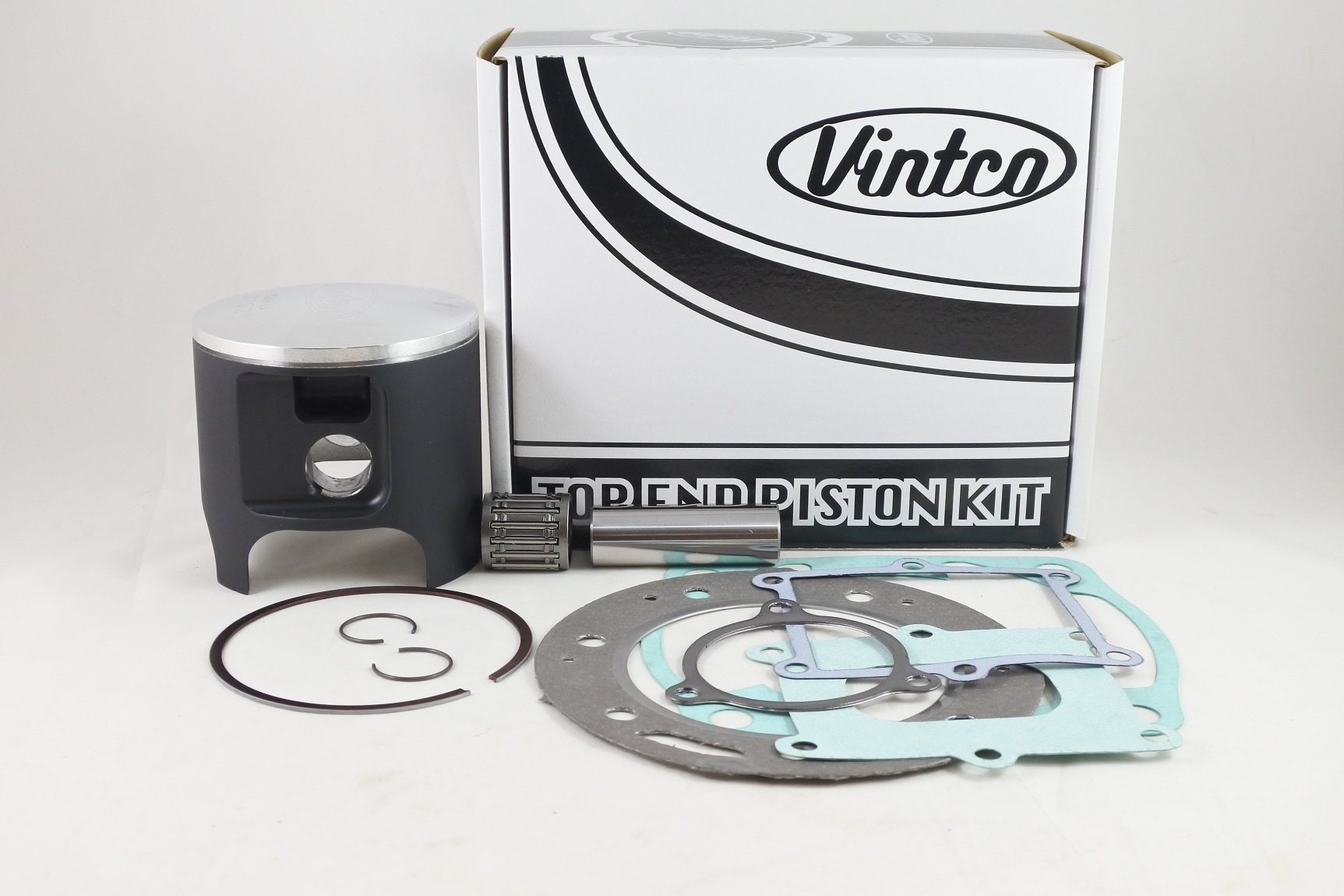

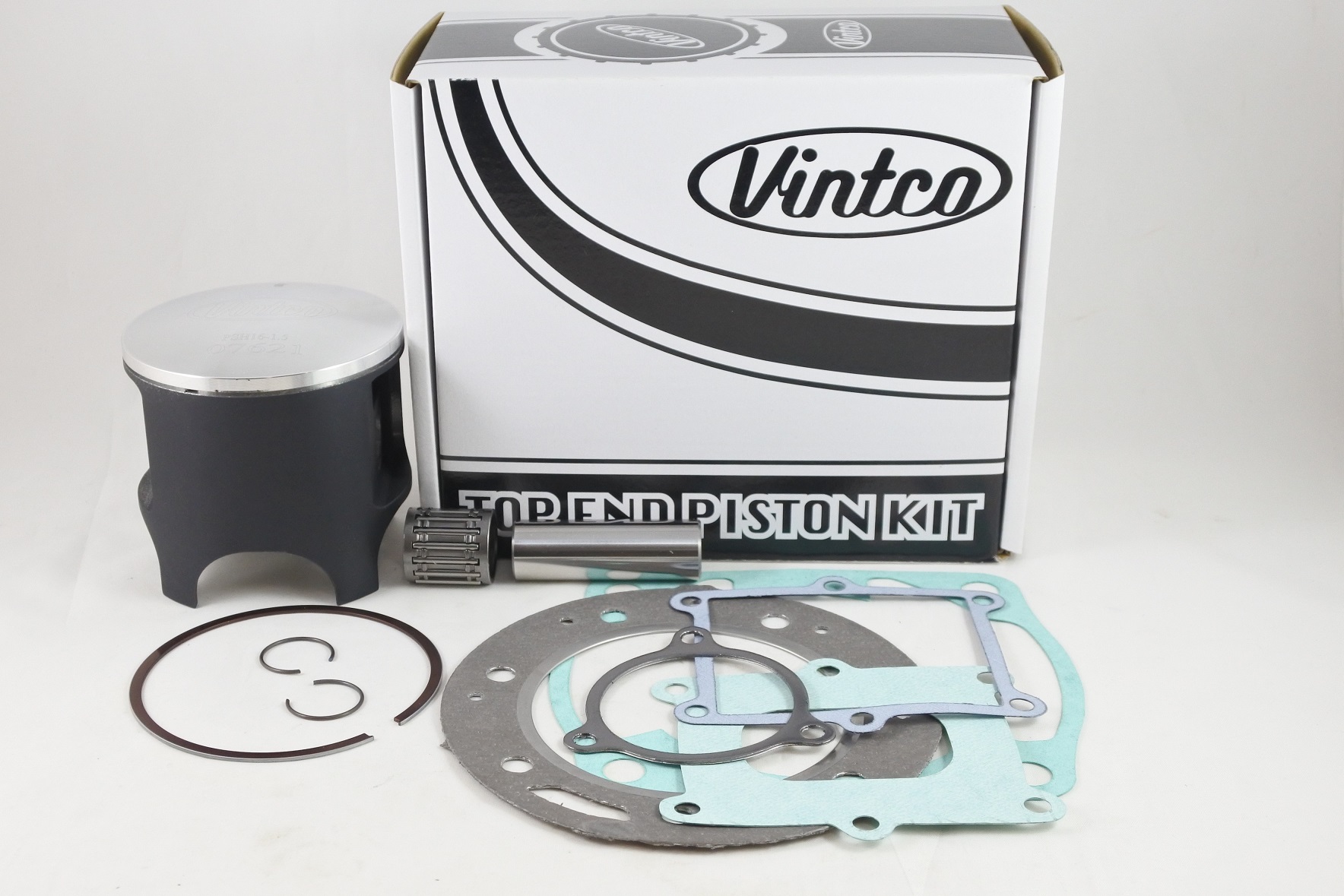

TOP END PISTON KIT 85-88 HONDA CR 500 90.5mm 1.5mm OVER VINTCO KTH30-1.5
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
VintCo top-end piston kit for 1985-1988 Honda CR500 models, 90.5 mm (+1.5 mm over) size. This complete rebuild kit includes a piston, rings, pin and clips, a top-end bearing / wrist pin bearing, and a full top-end gasket set (head, base, intake, and exhaust). Components are made with modern materials and manufacturing for OEM-equivalent fitment and performance. Specifications: VintCo Part Number KTH30-1.5, Nominal size 90.5 mm, Oversize +1.5 mm, Piston diameter 90.42 mm, Piston clearance 0.06 mm, Forged piston with MOS2 coating, Made in Germany. Cross-reference OEM part numbers: Head gasket 12254-ML3-881, Base gasket 12191-MAC-680, Intake gaskets 14132-KA5-306 and 14133-KA5-306, Exhaust pipe gasket 18291-KA5-306.
- SKU
- VIN-KTH30-1.5
- Brand
- Vintco
- Availability
- Out of Stock
Fitments (4)
| Make | Model | Year |
|---|---|---|
| HONDA | CR 500 | 1985 |
| HONDA | CR 500 | 1986 |
| HONDA | CR 500 | 1987 |
| HONDA | CR 500 | 1988 |
- SKU
- VIN-KTH30-1.5
- Brand
- Vintco
- Availability
- Out of Stock
FULL DESCRIPTION
VintCo Top End Piston Kit - 90.5mm (+1.5mm Over)
This VintCo top-end piston kit is designed for a complete top-end rebuild. It includes all the essential components needed to restore your engine's performance and ensure optimal function.
Key Features:
- Complete Rebuild: Provides all necessary parts for a full top-end overhaul.
- High-Quality Components: Includes a piston, rings, wrist pin, and clips.
- Bearing Included: Comes with a top-end bearing, also known as a wrist pin bearing.
- Full Gasket Set: A comprehensive gasket kit is included, covering the head, base, intake, and exhaust areas.
- OEM-Equivalent Performance: Manufactured using modern materials and techniques to match OEM fitment and performance standards.
- Cost-Effective Solution: Supplied as a kit, offering savings compared to purchasing individual components.
- Available in Multiple Sizes: Additional size options are available to suit various needs.
Specifications:
- Nominal Size: 90.5 mm
- Oversize: +1.5 mm
- Piston Diameter: 90.42 mm
- Piston Clearance: 0.06 mm
- Piston Construction: Forged
- Piston Coating: MOS2
- Country of Manufacture: Germany
Included Gaskets:
- Head Gasket
- Base Gasket
- Intake Gasket
- Exhaust Pipe Gasket
