TOP END PISTON KIT 84-84 HONDA CR 500 90.5mm 1.5mm OVER VINTCO KTH29-1.5
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days

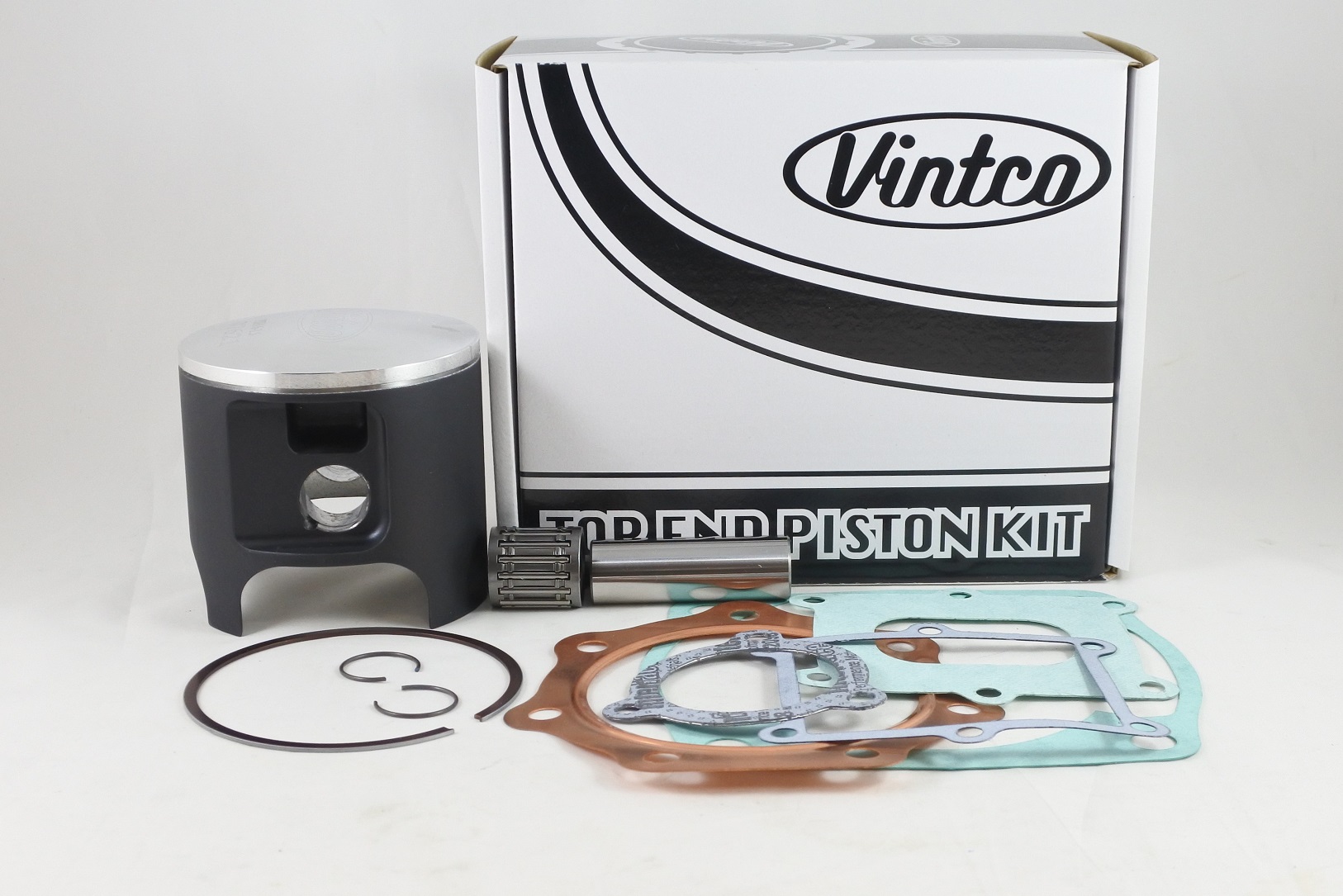

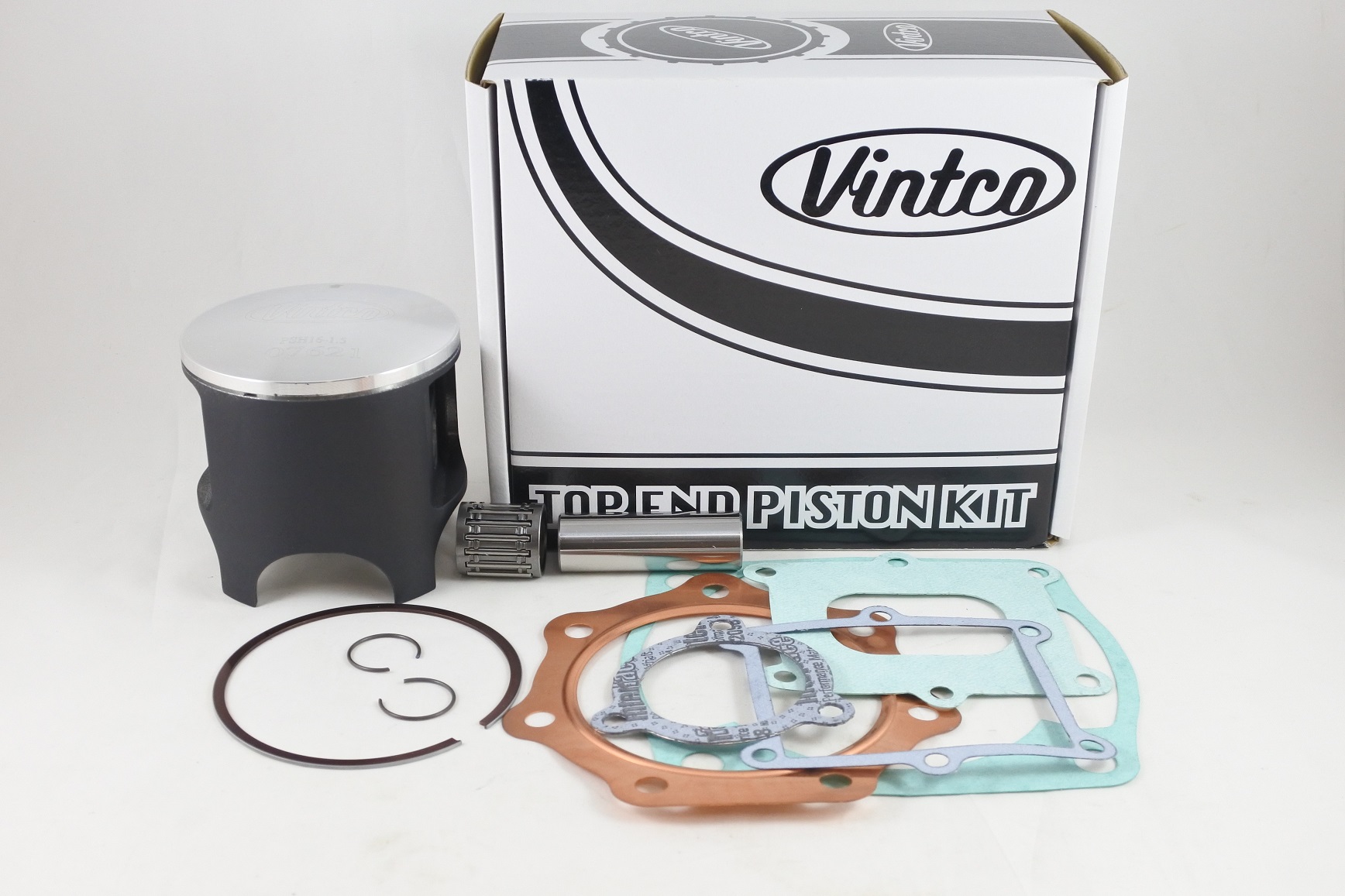

VintCo top end piston kit KTH29-1.5 is a complete rebuild kit. The kit includes a VintCo piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising head, base, intake and exhaust gaskets. Components are produced using modern materials and manufacturing techniques. The kit includes MOS2-coated piston for running-in. VintCo Part Number KTH29-1.5. Piston construction is forged. Country of manufacture is Germany. Nominal size is 90.5 mm. Piston diameter is 90.42 mm. Oversize is +1.5 mm. Piston clearance is 0.06 mm. OEM part numbers cross-referenced: 12254-KA5-770 Head gasket, 12191-MAC-680 Base gasket, 14132-KA5-306 Intake gasket, 14133-KA5-306 Intake gasket, 18291-KA5-307 Exhaust pipe gasket.
- SKU
- VIN-KTH29-1.5
- Brand
- Vintco
- Availability
- Out of Stock
Fitments (1)
| Make | Model | Year |
|---|---|---|
| HONDA | CR 500 | 1984 |
- SKU
- VIN-KTH29-1.5
- Brand
- Vintco
- Availability
- Out of Stock
FULL DESCRIPTION
VintCo Top End Piston Kit - 90.5mm Oversize
This VintCo Top End Piston Kit provides a comprehensive solution for rebuilding the top end of your motorcycle engine. Designed for optimal performance and durability, each component is manufactured using modern materials and advanced techniques to meet or exceed OEM standards.
This particular kit is sized at 90.5 mm, representing a +1.5 mm oversize, and is specifically intended for 1984 Honda CR500 models. Purchasing this kit offers a cost saving of 10% compared to buying the individual parts separately.
Key Features:
- Complete top end rebuild kit for enhanced engine performance.
- Includes a high-quality VintCo piston, precision rings, a strong pin, and reliable clips.
- Comes with a crucial wrist pin bearing for smooth operation.
- Features a full top-end gasket set, including head, base, intake, and exhaust gaskets, ensuring a perfect seal.
- The piston is MOS2-coated to aid in the running-in process.
- Offers OEM-equivalent or superior fitment and performance.
- Available in additional sizes to suit various engine requirements.
Specifications:
- Piston Construction: Forged
- Country of Manufacture: Germany
- Nominal Bore Size: 90.5 mm
- Actual Piston Diameter: 90.42 mm
- Oversize: +1.5 mm
- Recommended Piston Clearance: 0.06 mm
