TOP END PISTON KIT 80-81 HONDA CR R 80 51.0mm 1.5mm OVER VINTCO KTH10-1.5
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days

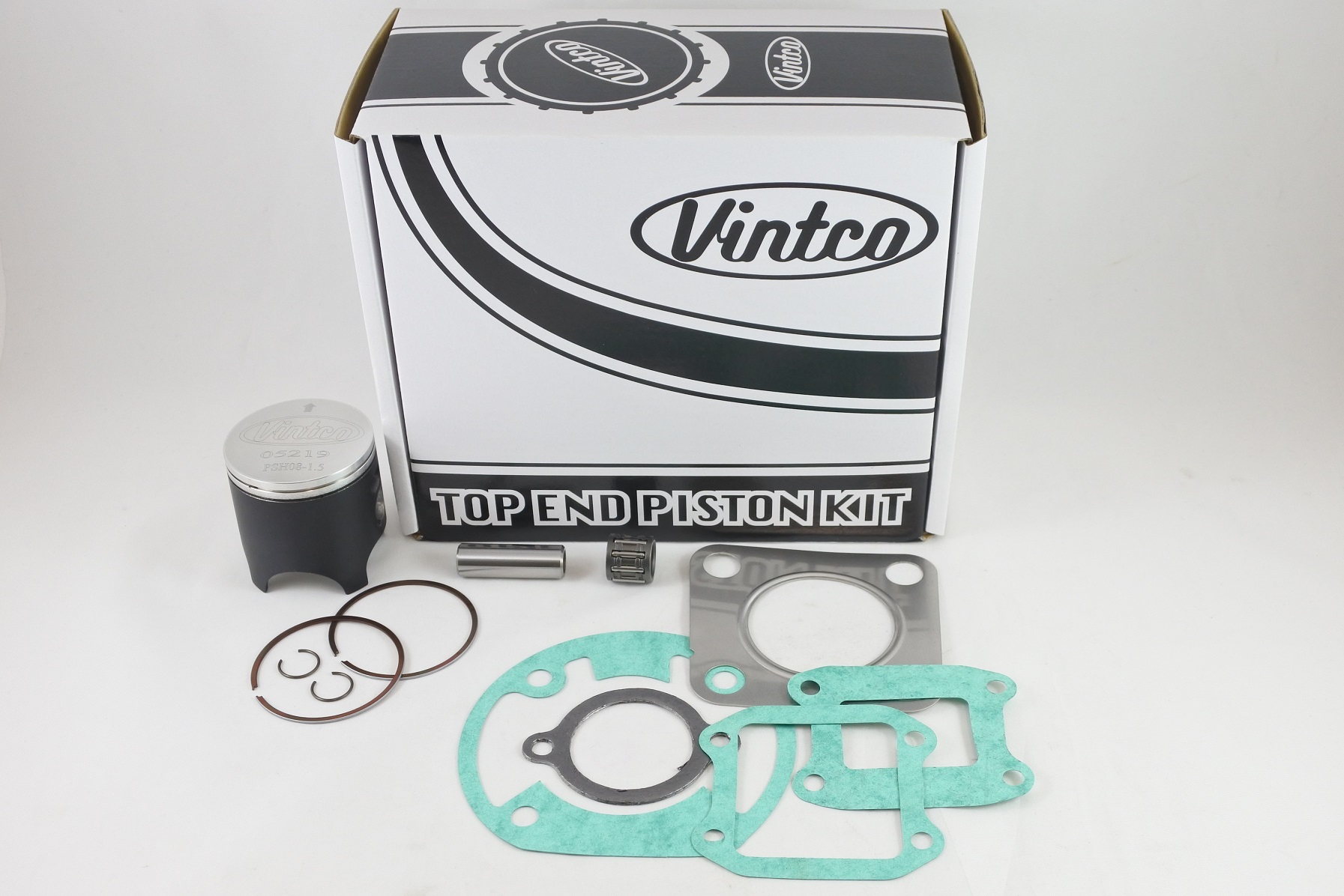

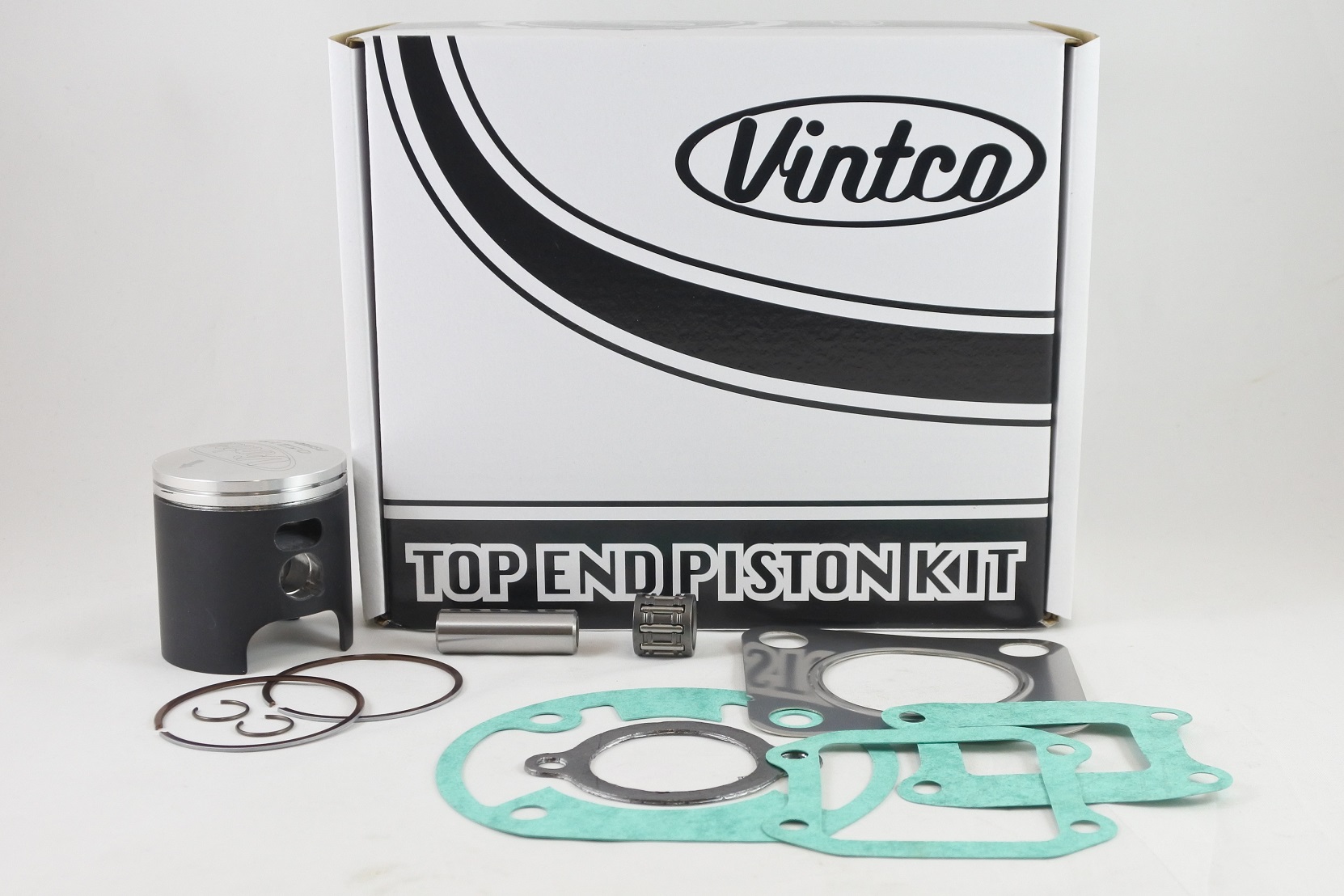

VintCo top end piston kit for 1980-1981 Honda CR80R models. This kit is 51.0 mm with a 1.5 mm oversize configuration. Includes piston assembly, top end bearing, and a full top-end gasket set with head gasket, base gasket, reed gaskets, and exhaust gasket. Features forged piston with Mos2 coating, and a wrist pin bearing size of 12 x 17 x 16 mm. Piston diameter is 50.95 mm with 0.05 mm piston-to-wall clearance. Made in Germany.
- SKU
- VIN-KTH10-1.5
- Brand
- Vintco
- Availability
- Out of Stock
Fitments (2)
| Make | Model | Year |
|---|---|---|
| HONDA | CR R 80 | 1980 |
| HONDA | CR R 80 | 1981 |
- SKU
- VIN-KTH10-1.5
- Brand
- Vintco
- Availability
- Out of Stock
FULL DESCRIPTION
VintCo Top End Piston Kit - 51.0mm Oversize
This VintCo top end piston kit is a comprehensive rebuild set designed for your motorcycle's top end. It provides all the essential components needed for a complete top end overhaul, offering convenience and value.
Key Features:
- Complete top end rebuild kit
- Includes piston, rings, wrist pin, and clips
- Comes with a top end bearing
- Features a full top-end gasket set: head gasket, base gasket, reed gaskets, and exhaust gasket
- Engineered for OEM-equivalent fitment and performance
- Bundled kit offers cost savings compared to individual component purchases
- Available in additional sizes for specific needs
Specifications:
- Nominal Bore Size: 51.0 mm
- Oversize: +1.5 mm
- Actual Piston Diameter: 50.95 mm
- Recommended Piston-to-Wall Clearance: 0.05 mm
- Piston Type: Forged
- Piston Coating: Mos2
- Manufactured in Germany
- Wrist Pin Bearing Dimensions: 12 mm x 17 mm x 16 mm
Cross-Reference OEM Part Numbers:
- Head Gasket: 12251-169-000
- Reed Valve Gasket: 14132-169-306
- Reed Valve Gasket: 14133-169-306
- Base Gasket: 12191-GC4-306
- Exhaust Gasket: 18291-169-306
