TOP END PISTON KIT 80-80 HONDA CR 125 56.0mm 0.5mm OVER VINTCO KTH04-0.5
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days

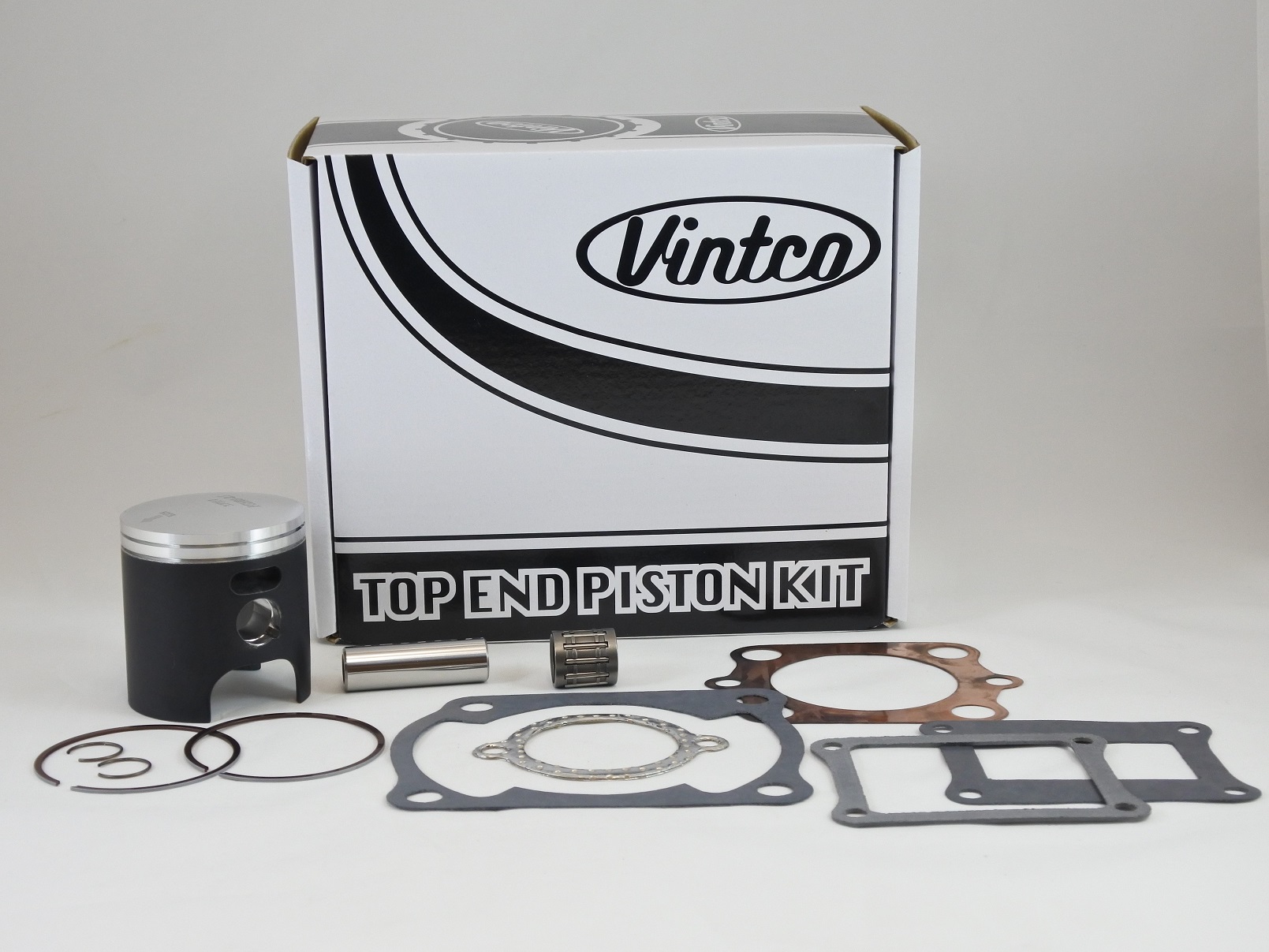

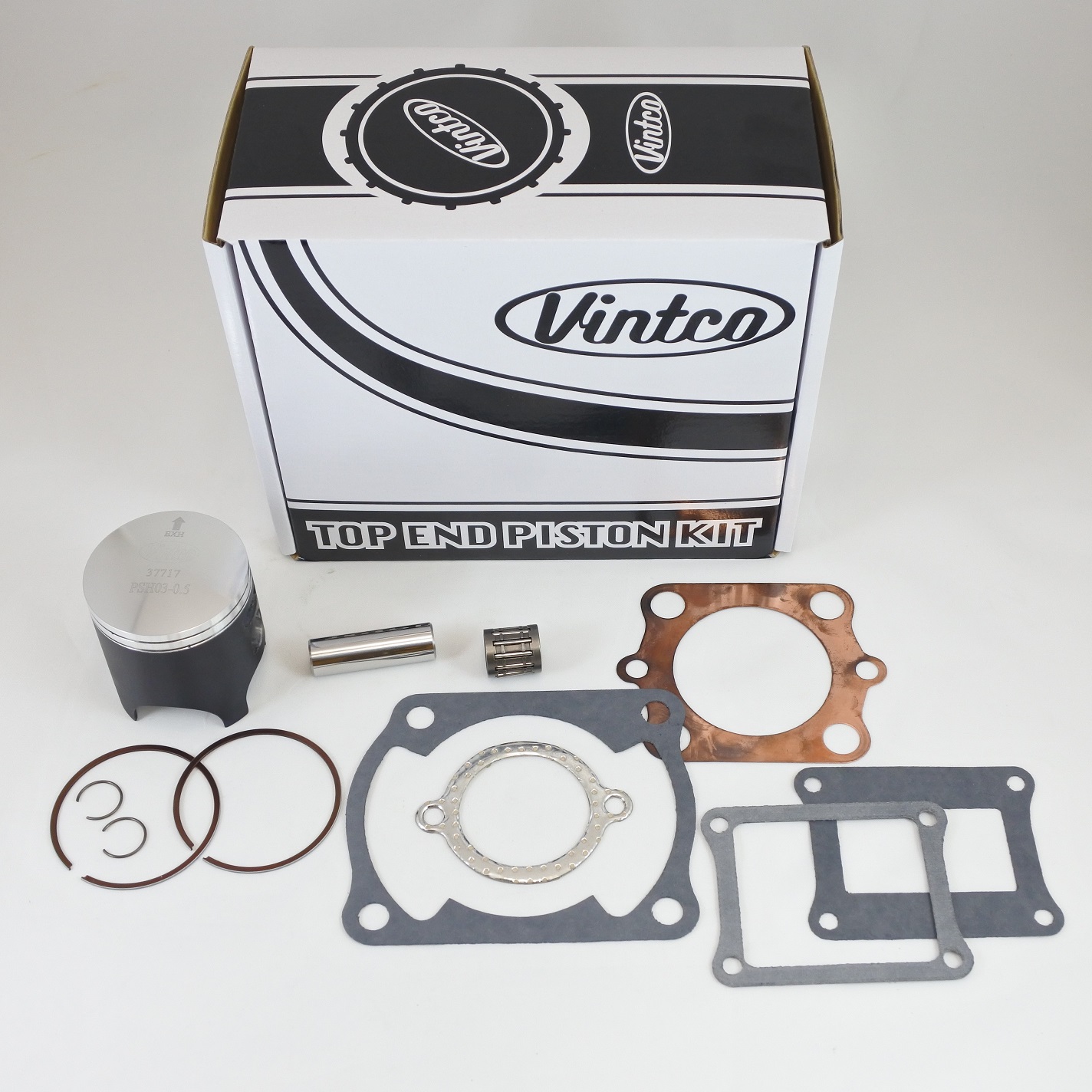

VintCo top end piston kit KTH04-0.5 is a complete rebuild kit supplied in a 56.0 mm +0.5 mm over size. The kit includes a piston, rings, pin and clips, a top end bearing, and a full top-end gasket set for the head, base, intake and exhaust. Components are produced using modern materials and manufacturing techniques for OEM-equivalent fit and performance. Piston coating supports break-in. Specifications include VintCo Part Number: KTH04-0.5, Product Type: Top End Piston Kit, Piston size: 56.0 mm, Oversize: +0.5 mm, Piston measurement: 55.94 mm, Piston clearance: 0.06 mm, Piston construction: Forged, Piston coating: MoS2, Country of manufacture: Germany. Cross-reference OEM Part Numbers include Piston: 13103-KA3-000, Head gasket: 12251-466-000, Base gasket: 12191-444-306, Intake gasket: 14131-444-306, Intake gasket: 14132-444-306, Exhaust gasket: 18291-466-306, Wrist pin bearing: 91007-444-004.
- SKU
- VIN-KTH04-0.5
- Brand
- Vintco
- Availability
- Out of Stock
Fitments (1)
| Make | Model | Year |
|---|---|---|
| HONDA | CR 125 | 1980 |
- SKU
- VIN-KTH04-0.5
- Brand
- Vintco
- Availability
- Out of Stock
FULL DESCRIPTION
VintCo Top End Piston Kit for Honda CR 125
Restore your Honda CR 125's performance with this comprehensive VintCo Top End Piston Kit. Designed for a perfect fit and reliable operation, this kit provides all the essential components for a complete top-end rebuild.
Key Features:
- Complete Rebuild Solution: Includes piston, rings, wrist pin, clips, top-end bearing, and a full gasket set.
- Extensive Gasket Coverage: The gasket set includes seals for the head, base, intake, and exhaust points.
- Precision Engineering: Manufactured in Germany using modern materials and techniques for OEM-equivalent fit and performance.
- Enhanced Durability: Features a forged piston with an MoS2 coating to aid in the break-in process.
- Oversized Piston: This kit includes a 56.0 mm piston, 0.5 mm over size, with a piston measurement of 55.94 mm for a 0.06 mm clearance.
- Cost Effective: Purchasing this kit offers a significant cost saving compared to buying individual components.
Specifications:
- Product Type: Top End Piston Kit
- Piston Size: 56.0 mm
- Oversize: +0.5 mm
- Piston Construction: Forged
- Piston Coating: MoS2
- Country of Manufacture: Germany
