TOP END PISTON KIT 79-81 SUZUKI PE RS RM 250 68.0mm 1.0mm OVER VINTCO KTS04-1.0
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days

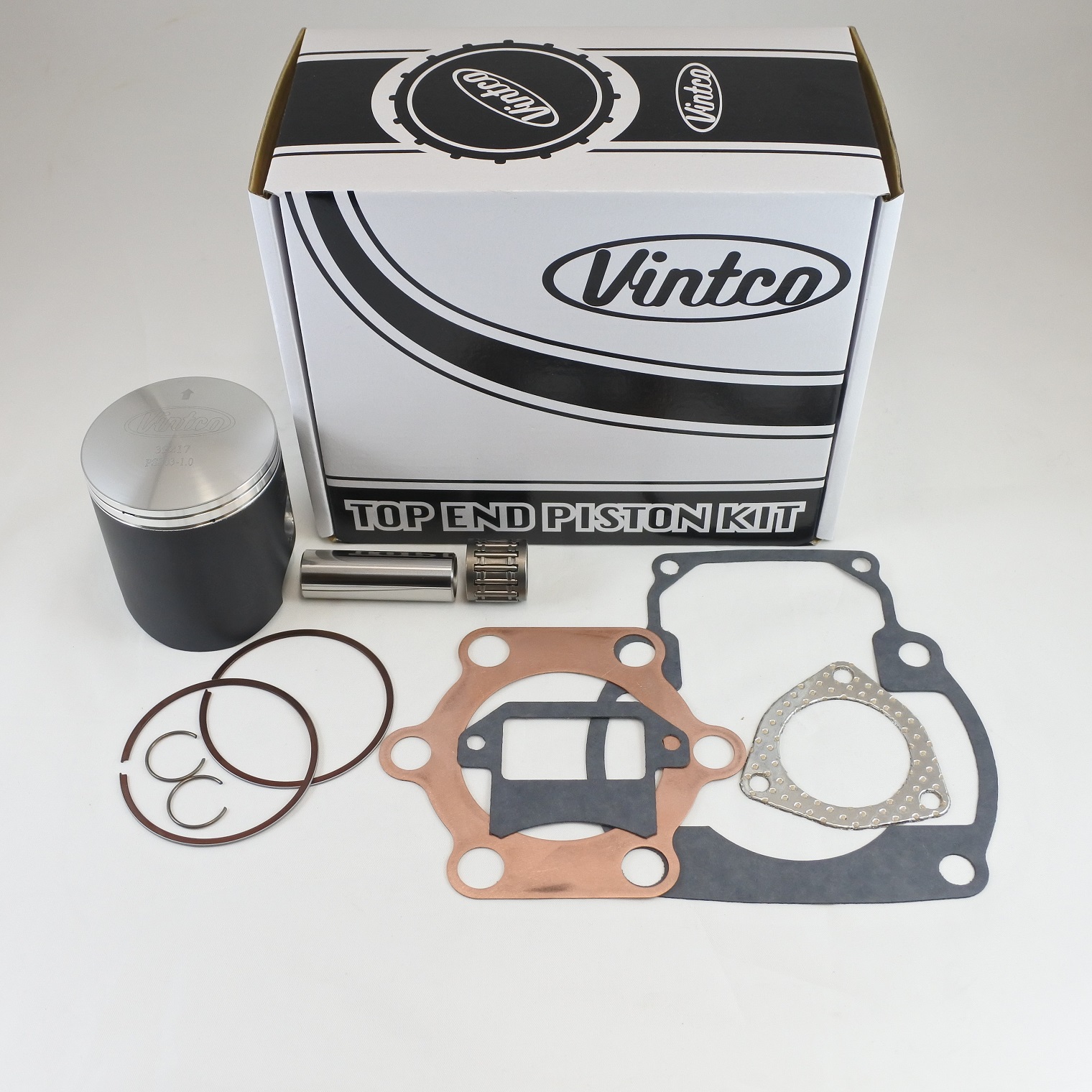

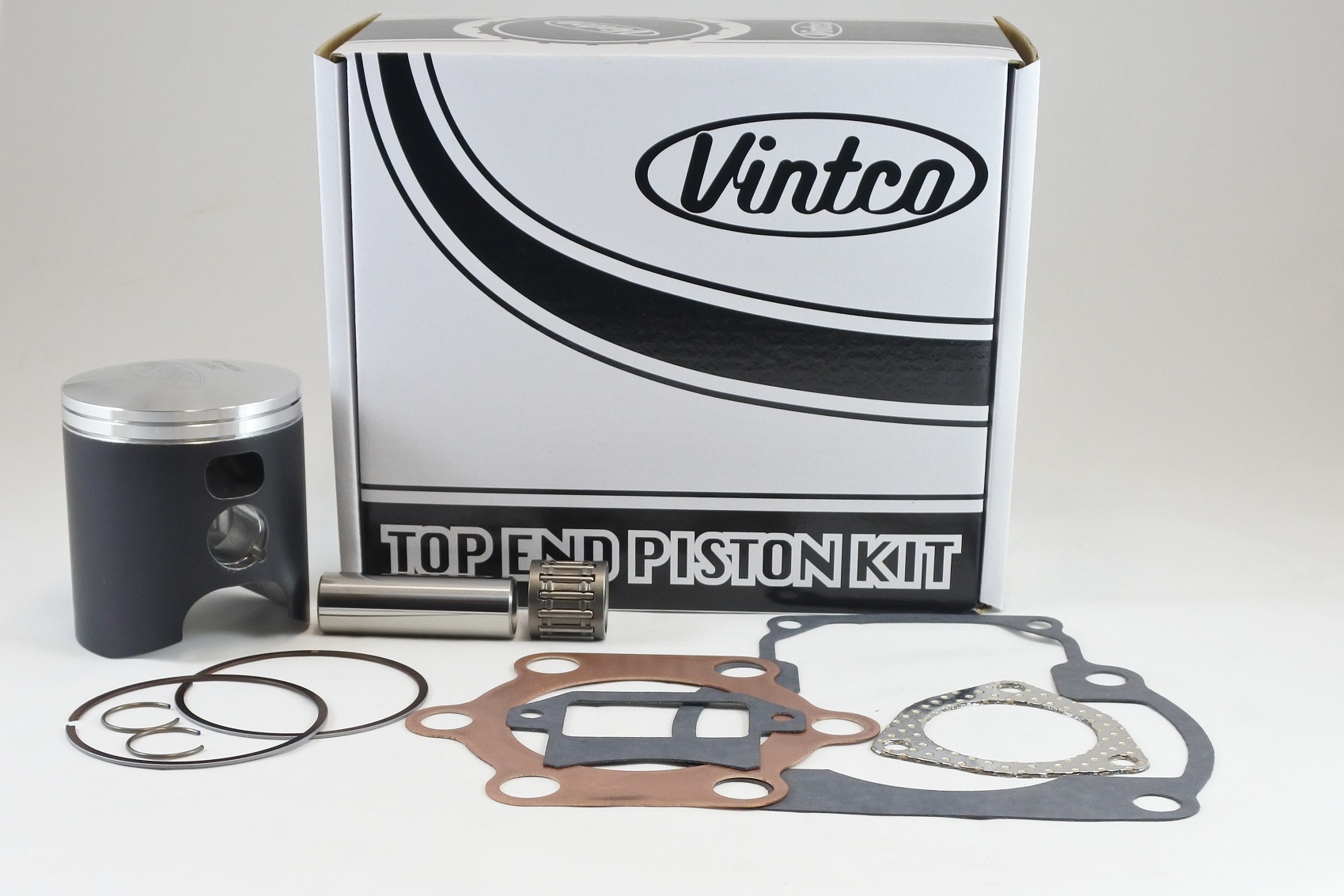

VintCo top end piston kit KTS04-1.0 is a complete rebuild set for selected Suzuki PE250, RS250 and RM250 models, supplying a nominal 68.0 mm piston package in 1.0 mm oversize. The kit includes the piston, rings, pin, clips, wrist pin bearing and a full top-end gasket set for the head, base, intake and exhaust. Components are produced with modern materials and manufacturing techniques and are intended to provide OEM-equivalent or better fit and performance for a straightforward, cost-effective top-end rebuild. Features a complete top-end rebuild kit with piston, rings, pin, clips, wrist pin bearing and full top-end gasket set. Supplied with head gasket, base gasket, intake gasket and exhaust gasket. Intended for 1.0 mm oversize top-end rebuilds. OEM cross-reference numbers provided for exact fitment verification. Kit pricing includes a 10% saving compared with purchasing the items individually. Additional size options are available. Specifications: VintCo Part Number: KTS04-1.0. Item Category: Top End Piston Kits. Nominal piston size: 68.0 mm. Oversize: 1.0 mm. Piston diameter: 67.94 mm. Clearance: 0.06 mm. Piston construction: Forged. Country of manufacture: Germany. Piston coating: MoS2, for running-in. Head gasket thickness: 0.8 mm. Cross-Reference OEM Part Numbers: Head gasket: 11141-40303. Base gasket: 11241-40301-H17. Intake gasket: 13156-40400-H17. Exhaust gasket: 14181-16300-H17. Wrist pin bearing: 09263-18016.
- SKU
- VIN-KTS04-1.0
- Brand
- Vintco
- Availability
- Out of Stock
Fitments (6)
| Make | Model | Year |
|---|---|---|
| SUZUKI | PE 250 | 1980 |
| SUZUKI | PE 250 | 1981 |
| SUZUKI | RM 250 | 1979 |
| SUZUKI | RM 250 | 1980 |
| SUZUKI | RS 250 | 1980 |
| SUZUKI | RS 250 | 1981 |
- SKU
- VIN-KTS04-1.0
- Brand
- Vintco
- Availability
- Out of Stock
FULL DESCRIPTION
VintCo Top End Piston Kit - 68.0mm 1.0mm Oversize
Restore your motorcycle's top-end performance with this comprehensive VintCo Top End Piston Kit. Designed for a precise fit and exceptional durability, this kit provides all the essential components for a complete engine rebuild.
Key Features:
- Complete top-end rebuild solution for a straightforward engine overhaul.
- Includes high-quality piston, piston rings, wrist pin, retaining clips, and a wrist pin bearing.
- Comes with a full set of top-end gaskets, including head gasket, base gasket, intake gasket, and exhaust gasket, ensuring a perfect seal.
- Specifically engineered for 1.0 mm oversize applications, allowing for restoration of worn cylinders.
- Piston features an MoS2 coating for enhanced break-in performance and reduced friction.
- Forged piston construction offers superior strength and longevity.
- Manufactured in Germany, ensuring high standards of quality and precision.
- Head gasket thickness: 0.8 mm.
Specifications:
- Nominal Piston Size: 68.0 mm
- Oversize: 1.0 mm
- Piston Diameter: 67.94 mm
- Clearance: 0.06 mm
- Piston Construction: Forged
- Country of Manufacture: Germany
- Piston Coating: MoS2 (for running-in)
Cross-Reference OEM Part Numbers:
- Head Gasket: 11141-40303
- Base Gasket: 11241-40301-H17
- Intake Gasket: 13156-40400-H17
- Exhaust Gasket: 14181-16300-H17
- Wrist Pin Bearing: 09263-18016
