TOP END PISTON & GASKET KIT 78MM KTM SX-F 250 16-22, ATHENA P5F0780078002B, SET B

Athena Top End Piston and Gasket Kit

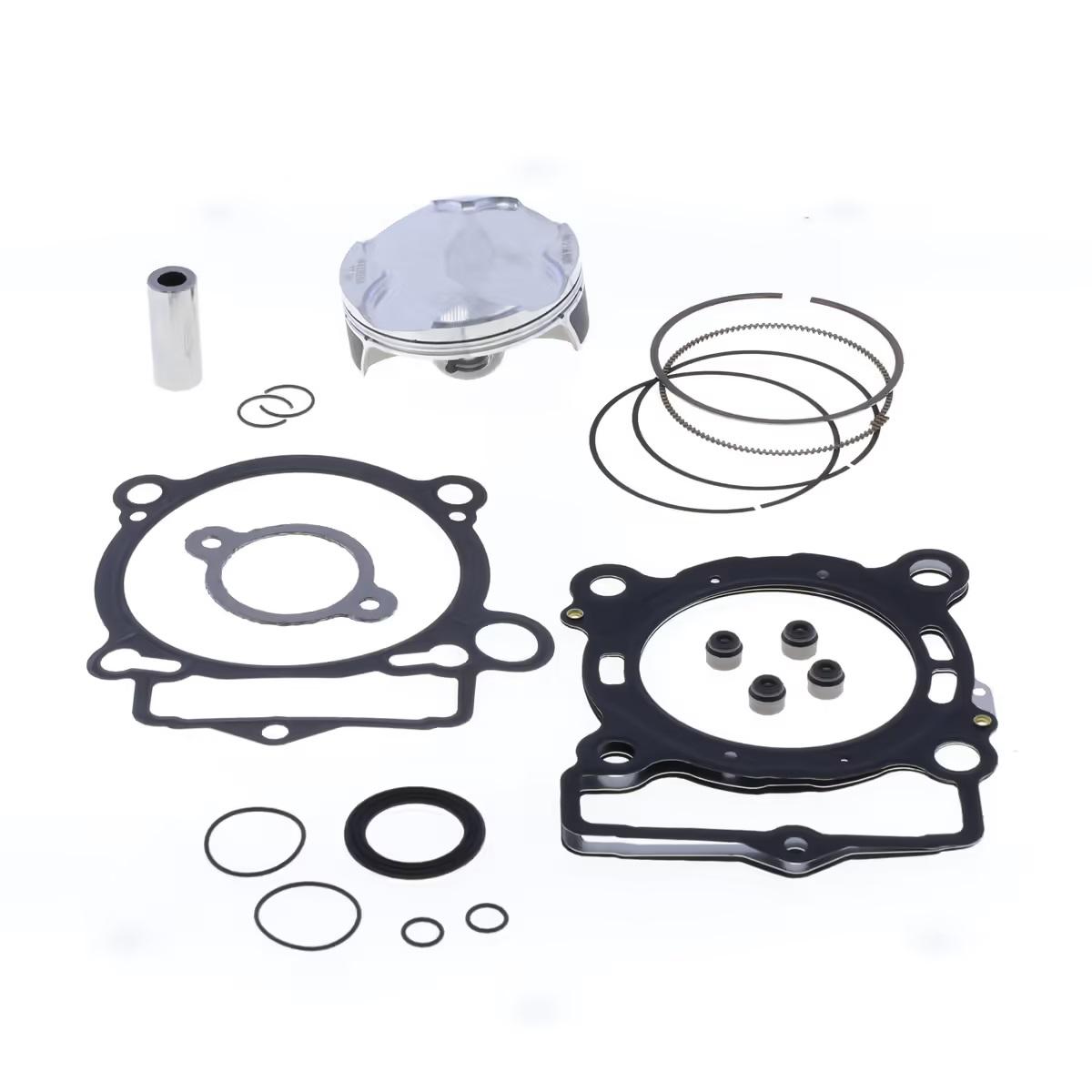

This Athena Top End Piston Kit offers a perfect combination of essential engine components designed for high performance and maximum reliability. The kit includes a forged 4-stroke piston and a compatible top-end gasket set, ensuring seamless integration and optimal engine function. Athena develops and tests all piston technologies and materials internally, alongside engineering the development of their compatible gaskets, providing a perfectly tuned kit for demanding applications.

Key Features:

• Forged 4-Stroke Piston: Manufactured using state-of-the-art numerical control (CNC) machines with a special high-performance aluminum alloy with high silicon content. This ensures OE piston reliability while providing greater resistance and excellent performance. The smooth piston profile promotes regular flow and perfect flame propagation. Some pistons feature a molybdenum disulfide coating on the skirts to further reduce friction, enhancing performance and durability.
• High-Quality Piston Rings: Includes two piston rings Made in Japan with wear-resistant coatings (PVD or chromium nitride) to increase retention and durability, leading to less friction with the cylinder and higher performance.
• Reliable Gasket Set: Developed with over 40 years of experience, Athena gasket kits are built on solid know-how and constant technological development. Produced following strict manufacturer parameters, with perfect cutting quality achieved using the latest generation lasers. Athena utilizes a wide availability of raw materials, performs surface treatments to compensate for irregularities, and employs material stress-relieving processes to improve sealing in critical areas.

Technical Specifications:

• Piston Type: Forged
• Bore Diameter: 77.97 mm
• Number Of Segments: 2
• Piston Pin Type: Standard
• Big End Pin Diameter: 16x9x38.2 mm
• Compression Height: 19.50 mm
• Compression Ratio: 14.4:1
• Displacement: 250 cc

Note: Products produced for displacements and power greater than those permitted by road codes are intended exclusively for competitive use. Athena declines all responsibility for any use of the product contrary to national regulations. Guarantees of compliance may not apply to products intended for competitive sports use or high-performance applications unless a clear faultiness is present.
