ATHENA Top End Piston Kit includes a forged 4-stroke piston and top end gasket kit. Piston diameter is 77.96 mm. The kit offers high performance and reliability. Pistons are made from high-performance aluminum alloy with high silicon content and produced with CNC machines. Some pistons feature a molybdenum disulfide coating on the skirts to reduce friction. Piston rings, made in Japan, have wear-resistant coatings (PVD or chromium nitride). Athena gasket kits are produced following strict manufacturer parameters using laser cutting. Technical features include: Big End Pin Diameter (mm) 16x9x38,2, Bore Diameter (mm) 77.96, Compression Height (mm) 19.40, Compression Ratio 13.9:1, Displacement (cc) 250, Number Of Segments 2, Piston Pin Type Biconical, Piston Type Forged.
- SKU
- 56-T1010.B_ATH
- Brand
- Athena
- Availability
- In Stock (1)
- Variant Id
- 309803
FULL DESCRIPTION

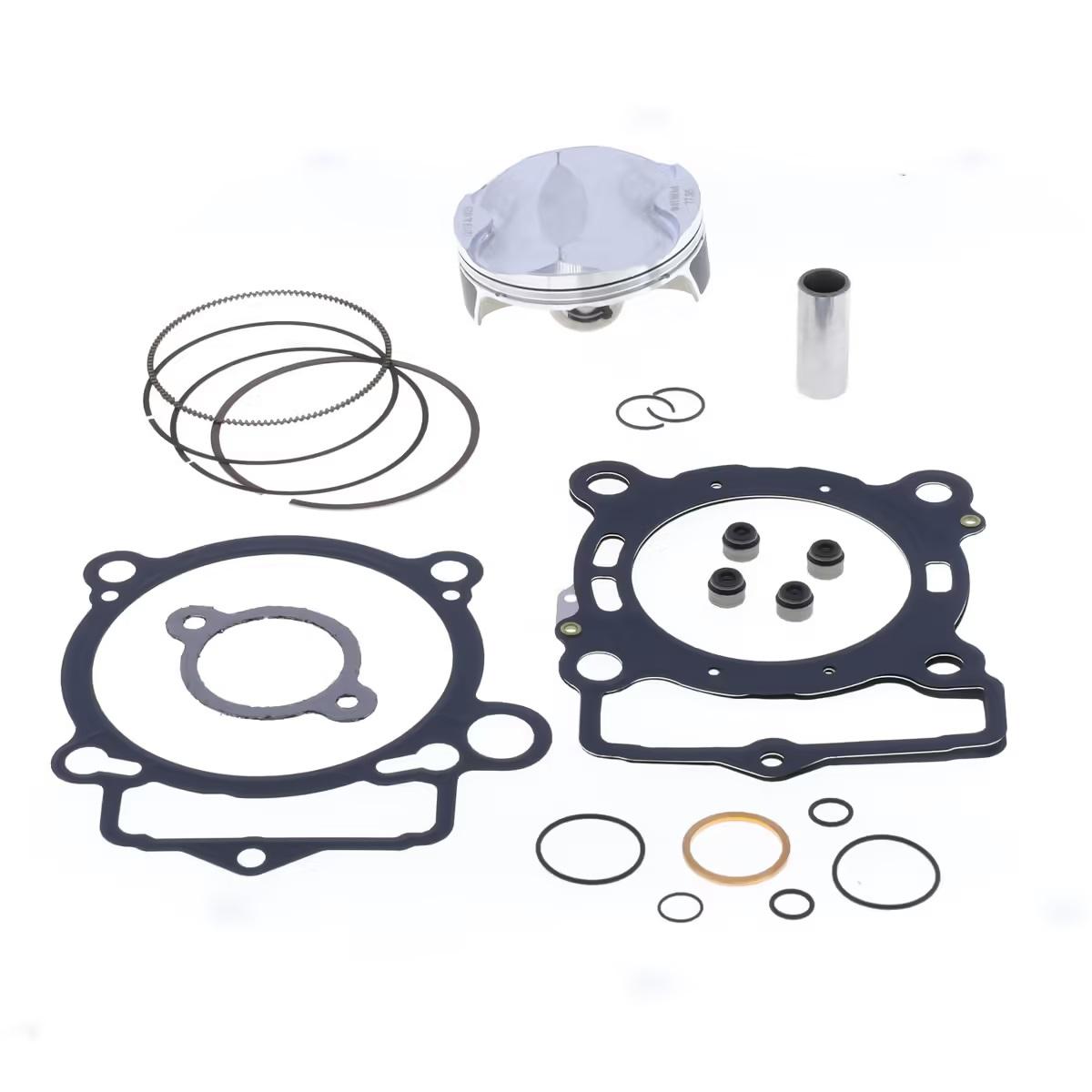

Athena Top End Piston and Gasket Kit
Enhance your motorcycle's engine performance and reliability with the Athena Top End Piston and Gasket Kit. This comprehensive kit combines a high-performance forged piston with a complete top-end gasket set, designed to work in perfect synergy for optimal results. Athena meticulously researches, develops, and tests all piston technologies and materials in-house, ensuring compatible gasket engineering for a perfectly tuned combination.
Key Features:
- Forged Piston: Manufactured using advanced reverse extrusion and state-of-the-art CNC machinery, this forged piston is crafted from a special high-performance aluminum alloy with a high silicon content. This ensures OE-level reliability while offering increased durability and superior performance.
- Optimized Piston Profile: The precisely smoothed piston profile promotes regular airflow and perfect flame propagation within the combustion chamber.
- Friction Reduction: Certain piston skirts are treated with a molybdenum disulfide coating applied via screen printing, further minimizing friction to boost both performance and longevity.
- High-Quality Piston Rings: The included piston rings, manufactured in Japan, feature wear-resistant coatings (PVD or chromium nitride). These advanced coatings reduce friction with the cylinder, leading to higher performance and extended durability.
- Reliable Gasket Set: Drawing on over 40 years of industry experience, Athena gaskets are renowned for their dependability. Developed by an internal team of engineers and designers, and produced to strict manufacturer parameters, these gaskets ensure excellent sealing.
- Precision Cutting: The use of the latest generation lasers guarantees exceptional cutting quality for all gasket components.
- Advanced Material Handling: Athena utilizes a wide range of raw materials, employs surface treatments to address irregularities, and implements material stress-relieving processes to enhance sealing in critical areas.
Technical Specifications:
- Piston Type: Forged
- Bore Diameter: 77.96 mm
- Number of Rings: 2
- Compression Ratio: 13.9:1
- Piston Pin Type: Biconical
- Compression Height: 19.40 mm
- Big End Pin Diameter: 16x9x38.2 mm
