TOP END PISTON & GASKET KIT 77MM HONDA CRF 250 14-15, ATHENA P5F0768245002A, SET A
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

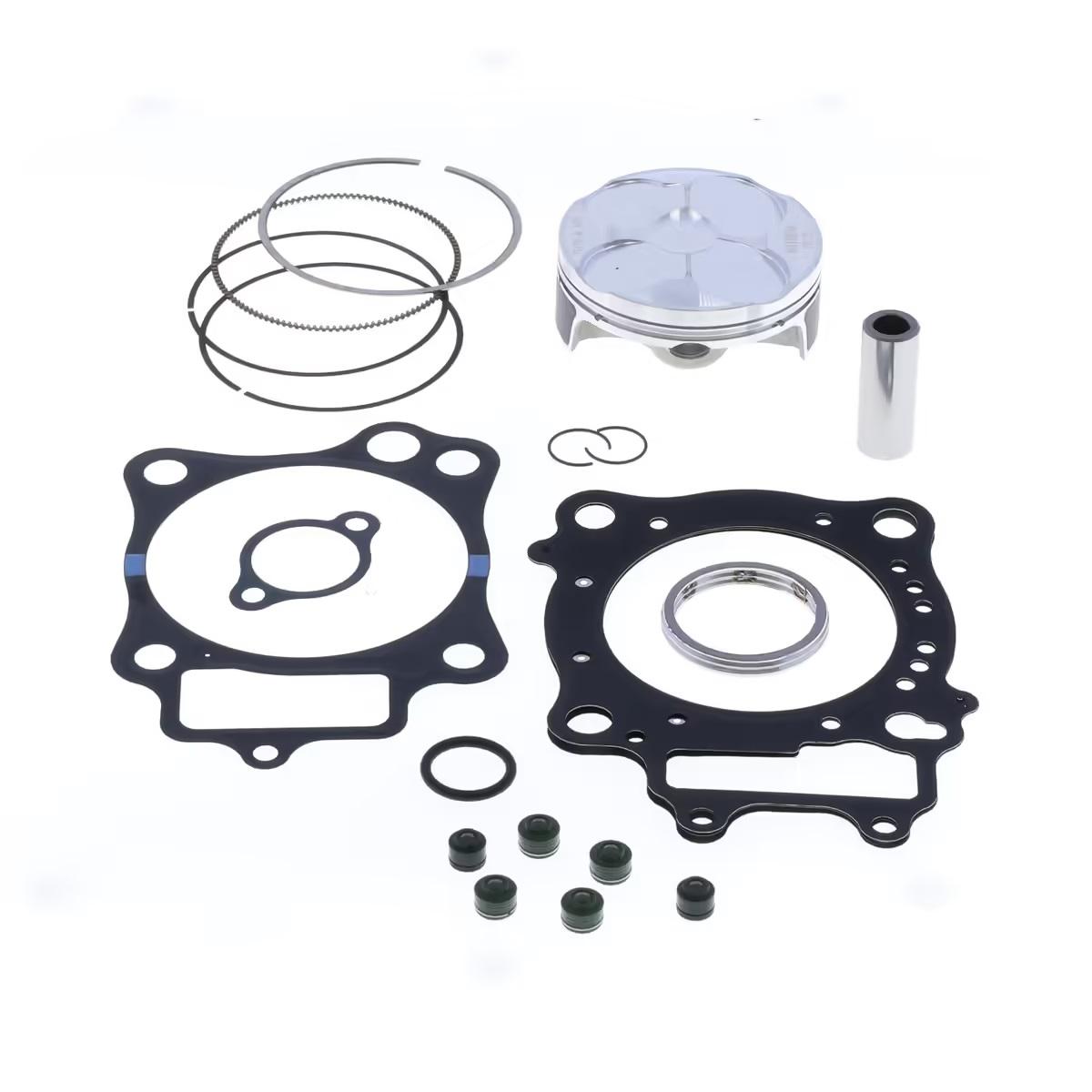

ATHENA Top End Piston Kit for HONDA CRF 250 14-15. Includes forged 4-stroke piston Ø 76.75 mm and top end gasket kit. Piston made from special high-performance aluminum alloy with high silicon content. Features include molybdenum disulfide coating on some piston skirts to reduce friction. Piston rings are Made in Japan with wear-resistant coatings (PVD or chromium nitride). Gasket kits are produced following strict manufacturer parameters. Big End Pin Diameter: 16x10x41.5 mm. Bore Diameter: 76.75 mm. Compression Height: 19.10 mm. Compression Ratio: 13.5:1. Displacement: 250 cc. Number Of Segments: 2. Piston Pin Type: Standard. Piston Type: Forged. Weight: 524 g.
- SKU
- 56-T1001.A_ATH
- Brand
- Athena
- Availability
- In Stock (1)
- Variant Id
- 309775
FULL DESCRIPTION
Athena Top End Piston and Gasket Kit for CRF 250
This Athena Top End Piston Kit offers the perfect combination of essential engine components for your motorcycle. It includes a high-performance forged 4-stroke piston and a complete top-end gasket set, designed to work together seamlessly for excellent results and maximum reliability.
Athena meticulously studies, develops, and tests all piston technologies and materials internally, while also engineering compatible gaskets. This integrated approach ensures a perfectly tuned kit that delivers superior performance and long-lasting durability.
Key Features:
- Forged 4-Stroke Piston: Manufactured using state-of-the-art CNC machines from a special high-performance aluminum alloy with a high silicon content. This provides OE-level reliability with enhanced resistance and performance.
- Smooth Piston Profile: Ensures regular airflow and perfect flame propagation for optimal combustion.
- Molybdenum Disulfide Coating: Some piston skirts feature this treatment to further reduce friction, enhancing performance and durability.
- High-Quality Piston Rings: Made in Japan, these rings offer reduced friction with the cylinder for higher performance. They feature wear-resistant coatings (PVD or chromium nitride) for increased lifespan.
- Reliable Gasket Kit: Based on over 40 years of industry experience, Athena gaskets are engineered with constant technological development and produced to strict manufacturer parameters.
- Laser-Cut Precision: The use of latest-generation lasers ensures perfect cutting quality for all gaskets.
- Advanced Material Treatments: Athena utilizes a wide availability of raw materials, performs surface treatments to compensate for irregularities, and employs material stress-relieving processes for improved sealing in critical areas.
Technical Specifications:
- Bore Diameter: 76.75 mm
- Compression Height: 19.10 mm
- Compression Ratio: 13.5:1
- Number Of Segments: 2
- Piston Type: Forged
- Piston Pin Type: Standard
