TOP END CYLINDER KIT 100mm Bore 00-07 BMW DAKAR F650GS 11117652877 11257652879
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
100mm Cylinder Piston Gasket Top End Rebuild Kit for F 650 CS Scarver 2001-2005 and F 650 GS Dakar 2000-2007. Complete kit includes cylinder, piston, rings, pin, clips, and top-end gasket kit. Piston is anodized for heat resistance and extended lifespan. High-quality gaskets made from performance materials enhance durability and reliability. Kit designed for standard bore size: 100mm x 83mm stroke, with a 22mm steel piston pin. Compression Ratio: 11.5:1. Aftermarket, 100% Brand New. Quantity: 1 Set. Material: Aluminum. Displacement: 652cc. Bore Type: Standard Bore. Bore Diameter: STD 100mm. Stroke: 83mm. Pin Diameter: 22mm. Replacement Part Numbers: Cylinder: 11117652877, Cylinder Base Gasket: 11117706497, Cylinder Head Gasket: 11127678889, Piston (Std): 11257652879, Pin, Piston: 11257675304, Piston Ring Set (Std): 11257652980, Circlips, piston: 11257652916. Package Includes: 1x Cylinder, 1x Piston, 1x Piston Ring Set, 1x Wristpin, 2x Circlips, 1x Cylinder Base Gasket, 1x Cylinder Head Gasket.
- SKU
- 56-K2904.100.CLK
- Brand
- Dirt Racing
- Availability
- In Stock (1)
- General Product Group
- Engine
- General Product Type
- Cylinder Kits
- Variant Id
- 312010
FULL DESCRIPTION
TOP END CYLINDER KIT 100mm Bore - BMW F650GS Dakar & CS Scarver
Restore your motorcycle's performance with this comprehensive top end cylinder rebuild kit. Designed as a direct replacement for your original components, this kit provides everything needed for a thorough top-end overhaul.
This kit includes a precision-engineered cylinder, a high-performance piston with anodized coating for superior heat resistance and durability, and a complete set of piston rings, pin, and clips. It also features a full top-end gasket kit, ensuring all necessary seals for a reliable rebuild are included.
The piston is designed for exceptional heat resistance and an extended lifespan, while the high-quality gaskets are crafted from performance materials to enhance durability and reliability. This kit offers an excellent and cost-effective solution for replacing defective original cylinders.
Key Features:
- Complete top end rebuild kit includes cylinder, piston, rings, pin, clips, and top-end gasket set.

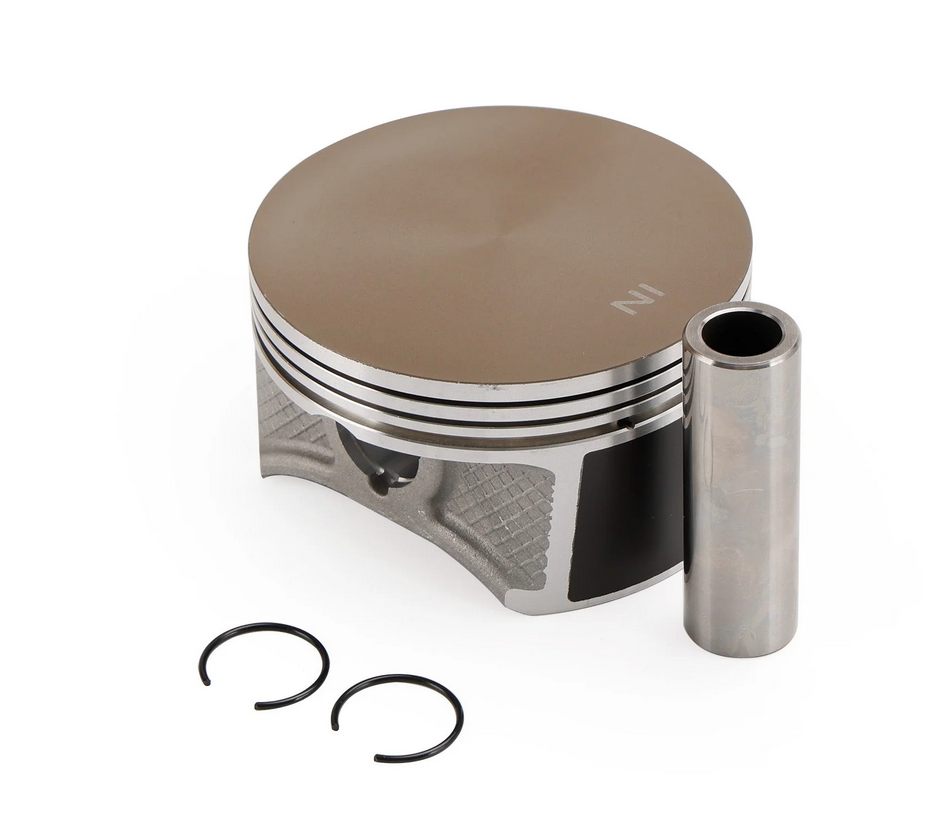

- Anodized piston for exceptional heat resistance and extended lifespan.
- High-quality gaskets made from performance materials for enhanced durability and reliability.

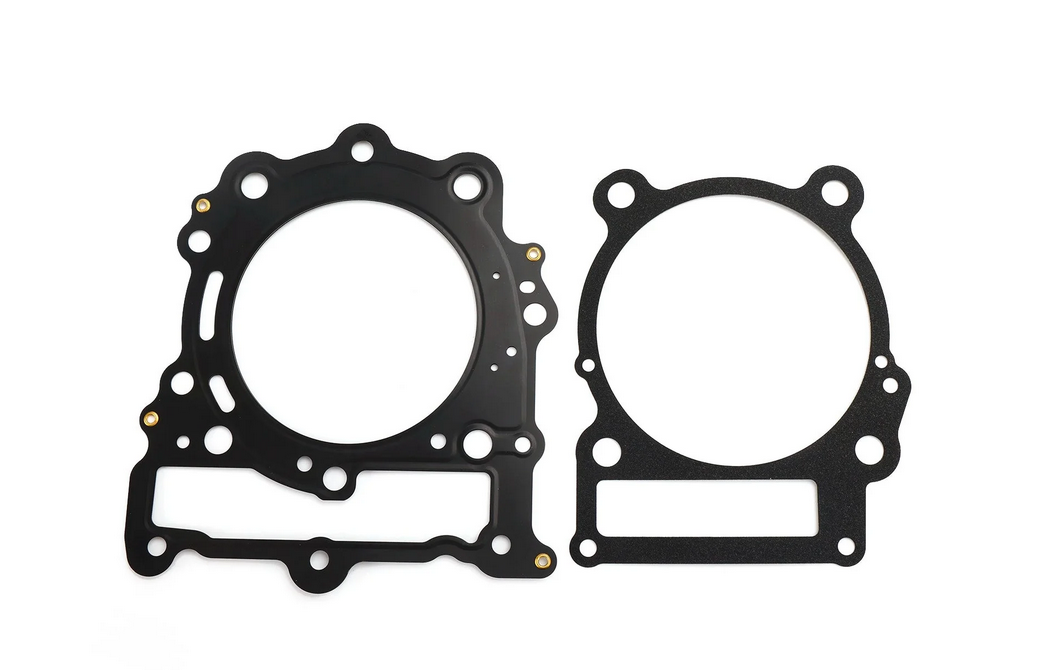

- Includes all gaskets required for a complete top-end rebuild.
- Designed for a standard bore size of 100mm.
- Features a 22mm steel piston pin.
- Compression Ratio: 11.5:1.
- Cost-effective replacement for original cylinders.
Specifications:
- Condition: Aftermarket, 100% Brand New
- Quantity: 1 Set
- Material: Aluminum
- Displacement: 652cc
- Bore Type: Standard Bore
- Bore Diameter: STD 100mm
- Stroke: 83mm
- Pin Diameter: 22mm
Replacement Part Numbers:
- Cylinder: 11117652877
- Cylinder Base Gasket: 11117706497
- Cylinder Head Gasket: 11127678889
- Piston (Std): 11257652879
- Pin, Piston: 11257675304
- Piston Ring Set (Std): 11257652980
- Circlips, piston: 11257652916

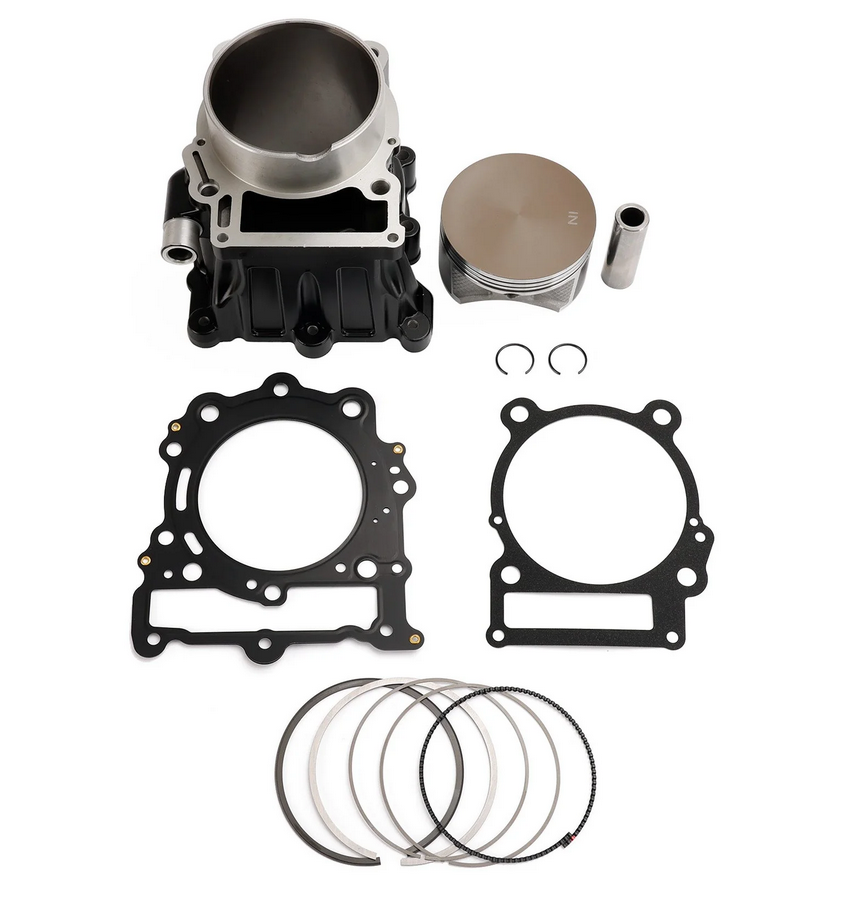

Package Includes:

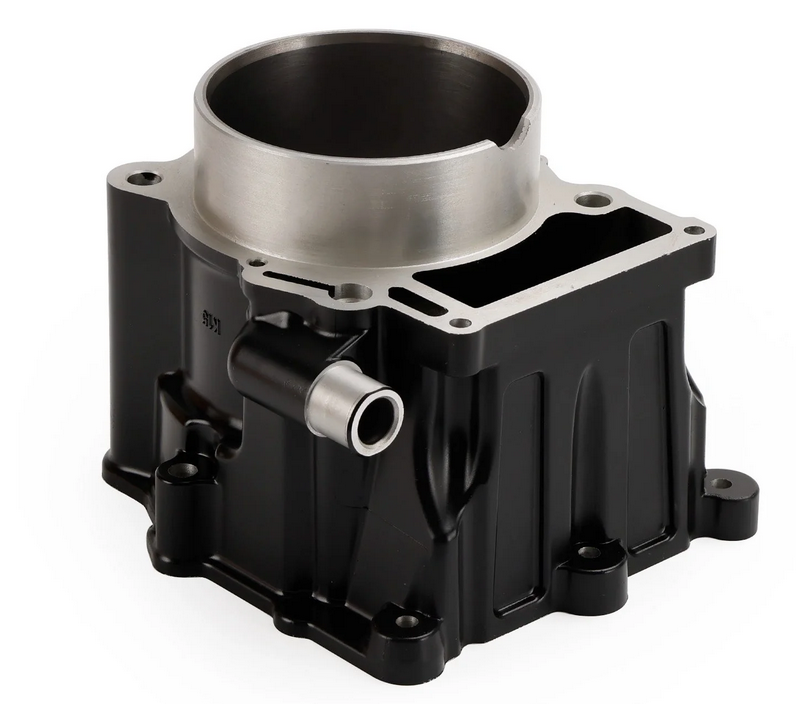

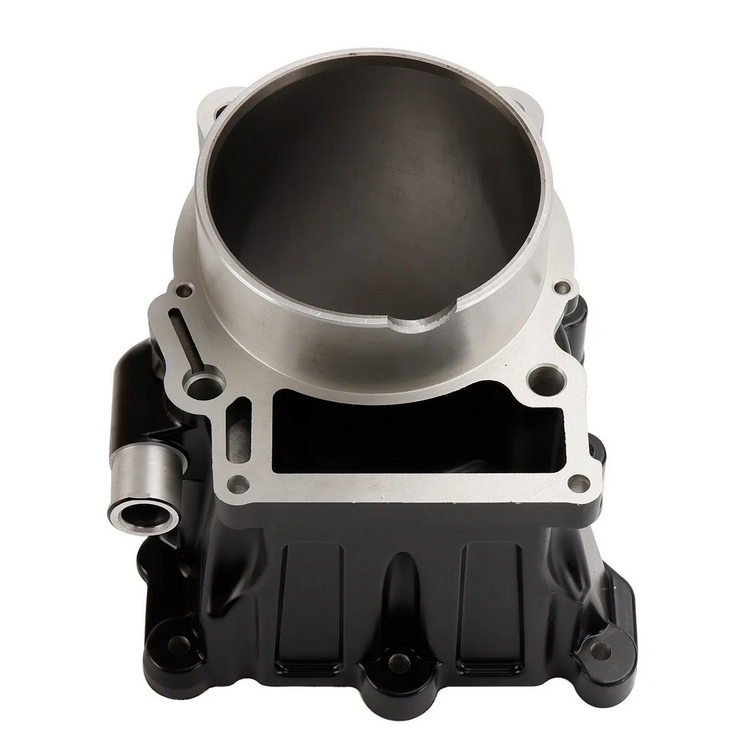

- 1x Cylinder
- 1x Piston

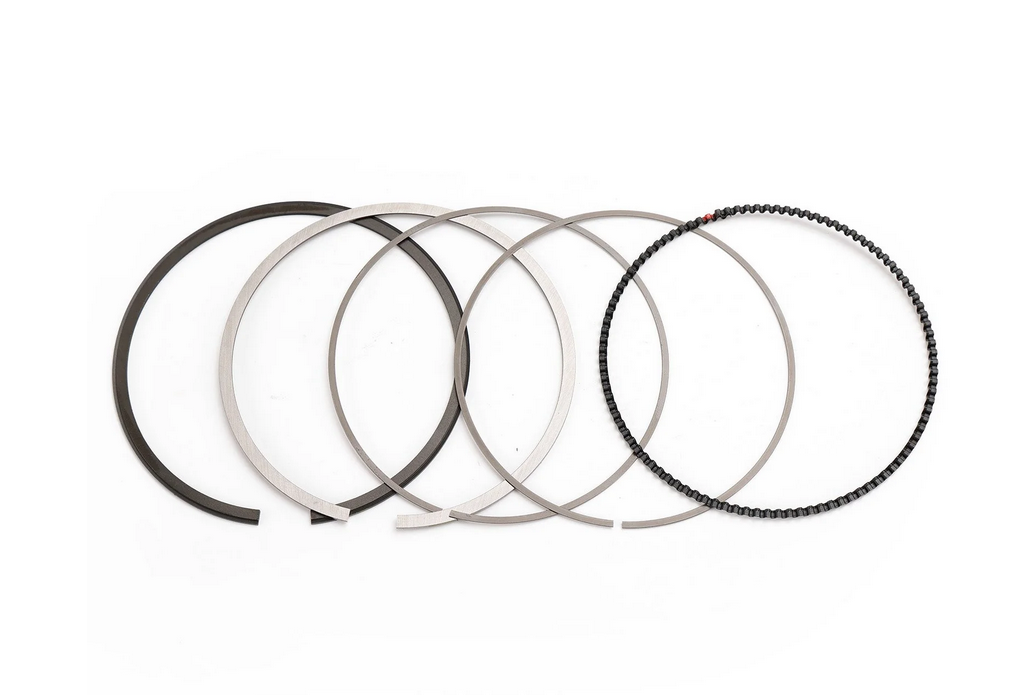

- 1x Piston Ring Set
- 1x Wristpin
- 2x Circlips
- 1x Cylinder Base Gasket
- 1x Cylinder Head Gasket
