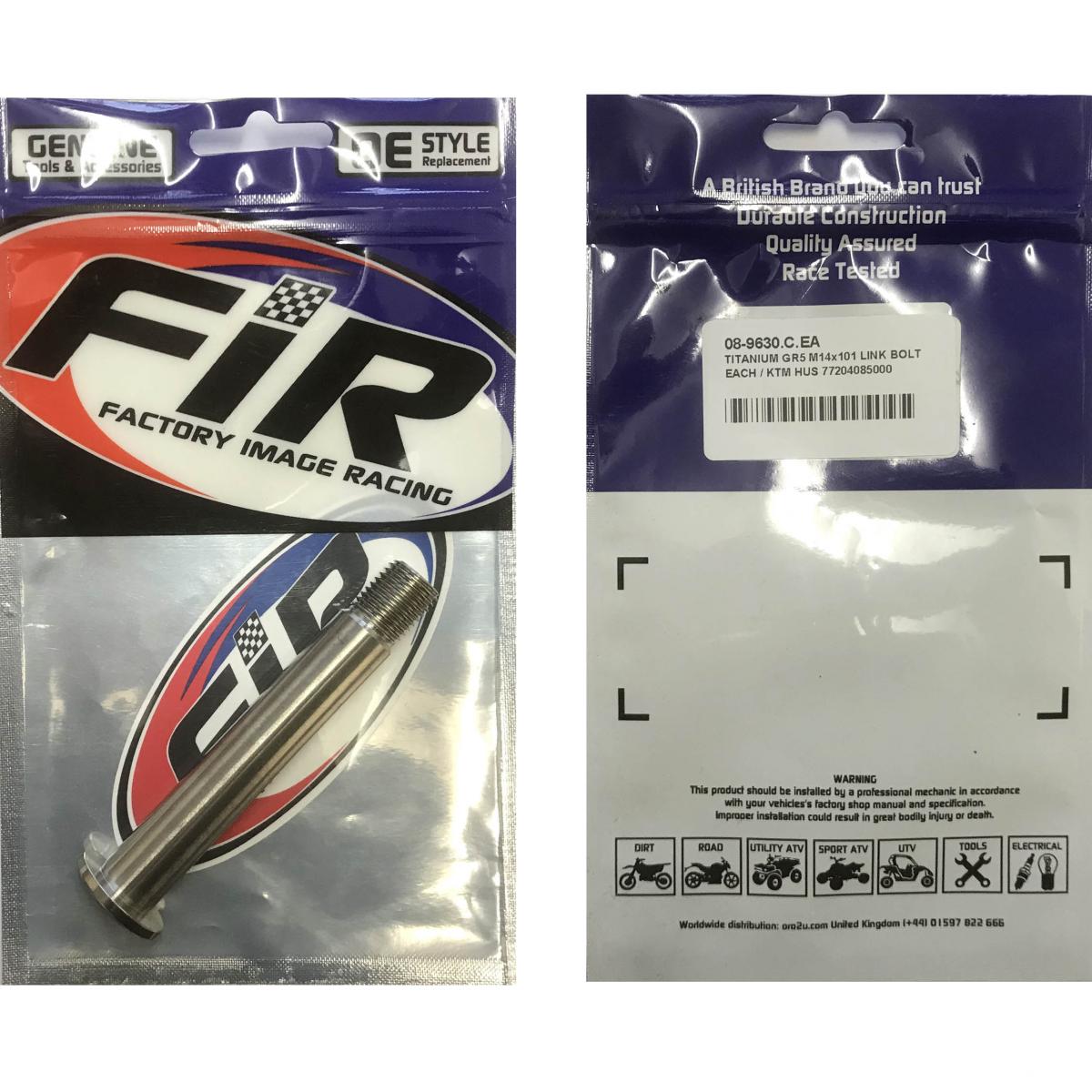

TITANIUM GR5 M14x101 LINKAGE BOLT, EACH / KTM HUS 77204085000, / CANTILEVER BOLT
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply

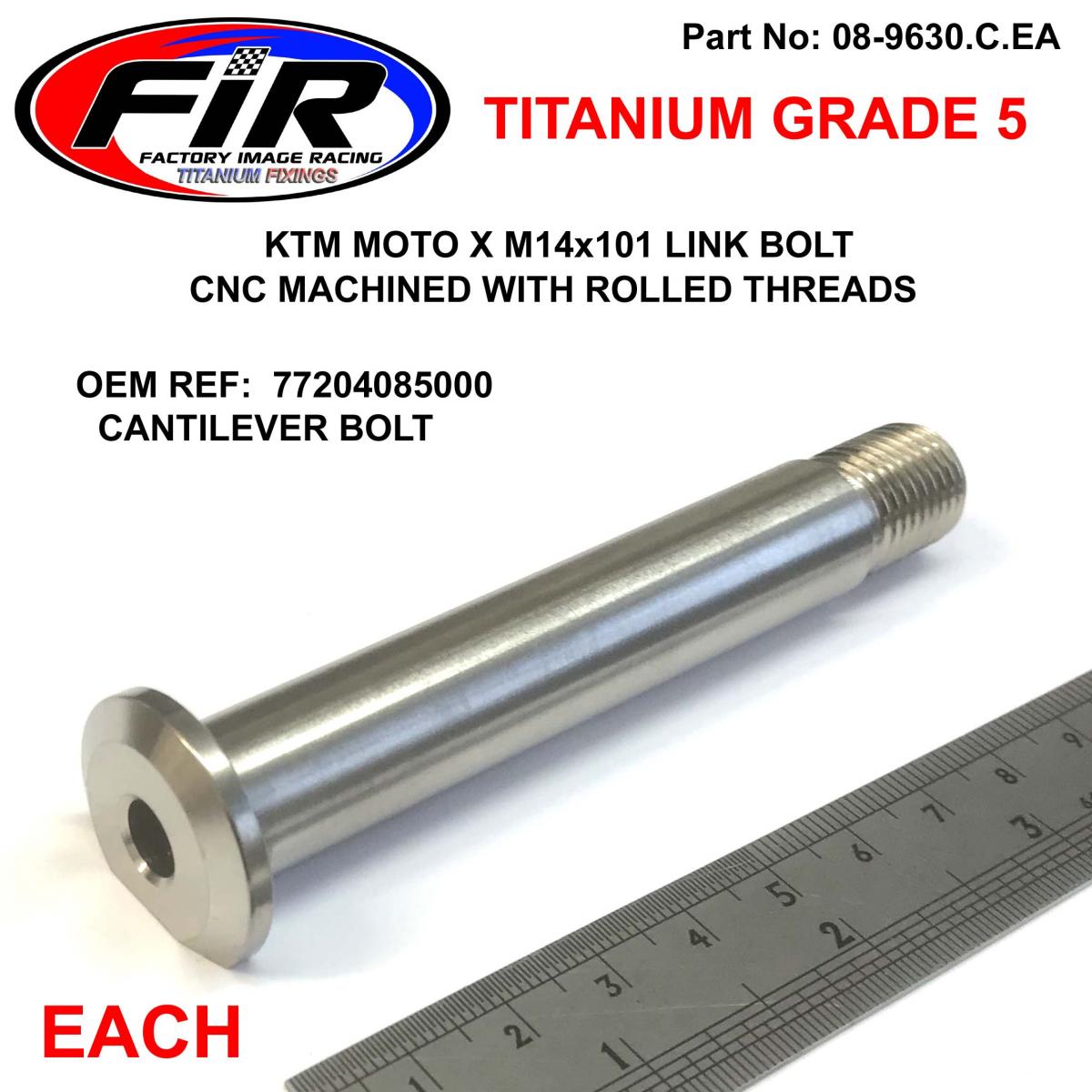

TITANIUM GR5 M14x101 LINKAGE BOLT, EACH. CNC machined with rolled threads from super strong grade 5 titanium alloy used for its high strength, super-light properties, and fantastic anti-corrosion properties. Thread Diameter: M14. Pitch: 1.50mm. Overall length: 101mm. Thread length: 16mm. Flange OD: 24.85mm with a half moon head. QTY: 1. KTM OEM REF: 77204085000.
- SKU
- 08-9630.C.EA
- Brand
- Factory Image Racing Titanium
- Availability
- In Stock (26)
- General Material
- Titanium
- General Product Group
- Suspension & Drive Parts
- General Product Type
- Swingarm Linkage Bearing Kit
- General Size
- M14 x 101mm
Show more +1Show less
- Variant Id
- 291340
FULL DESCRIPTION
Factory Image Racing Titanium M14x101mm Linkage Bolt
Upgrade your motorcycle's linkage system with this high-strength, lightweight M14x101mm bolt from Factory Image Racing. Crafted from super strong Grade 5 Titanium alloy, this bolt offers exceptional durability, superior strength-to-weight ratio, and excellent corrosion resistance, making it ideal for demanding off-road applications.

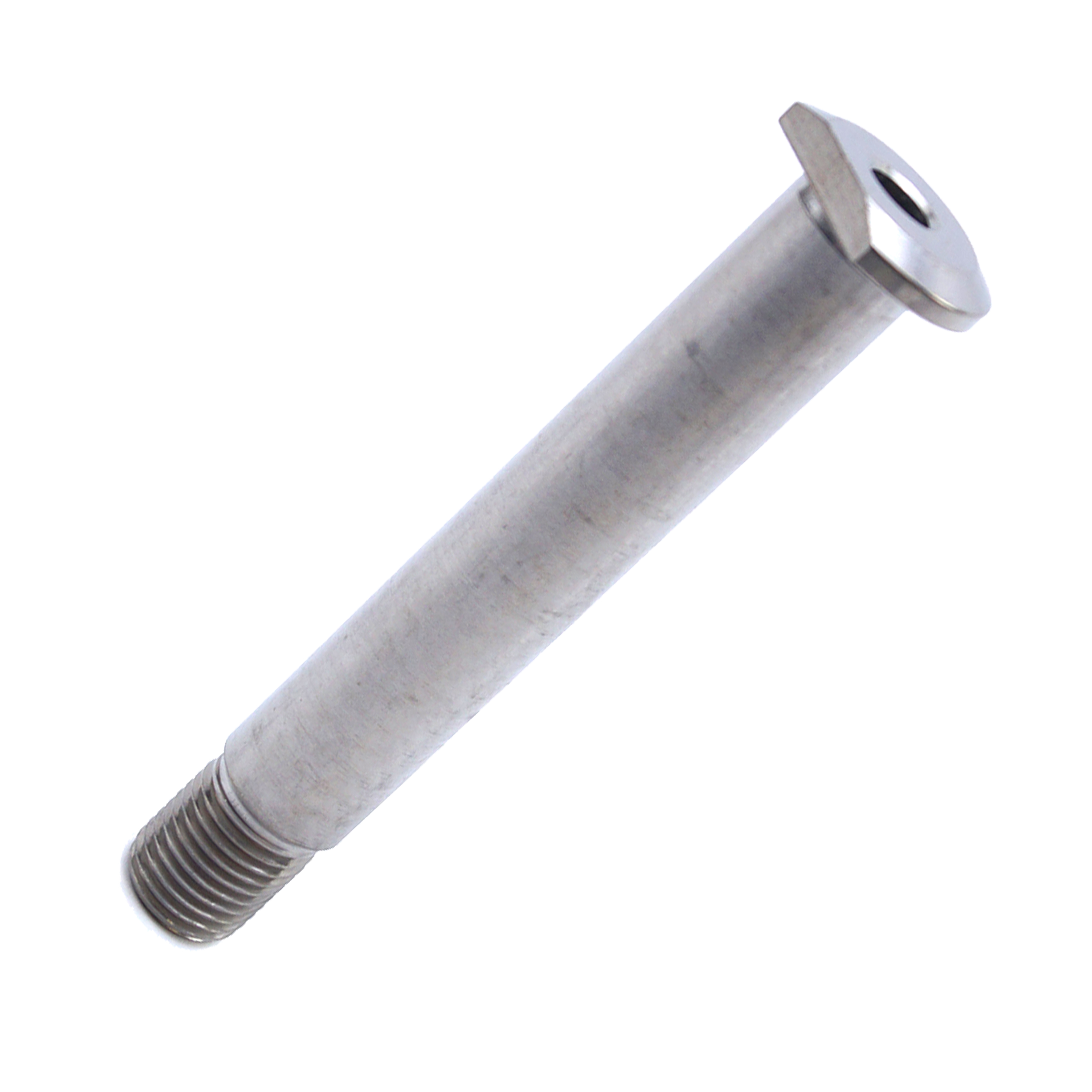

This bolt is CNC machined with rolled threads for added strength and precision. It features a half-moon head design with a flange outer diameter of 24.85mm.
Key Features:
- Material: Grade 5 Titanium Alloy (6Al/4V)
- Thread Size: M14
- Thread Pitch: 1.50mm
- Overall Length: 101mm
- Thread Length: 16mm
- Flange Outer Diameter: 24.85mm
- Head Style: Half-moon
- Quantity: 1
- High strength and lightweight properties
- Excellent anti-corrosion resistance
For optimal installation, it is recommended to use nut 08-9629.B and apply a thread locking compound such as Loctite or copper grease.
