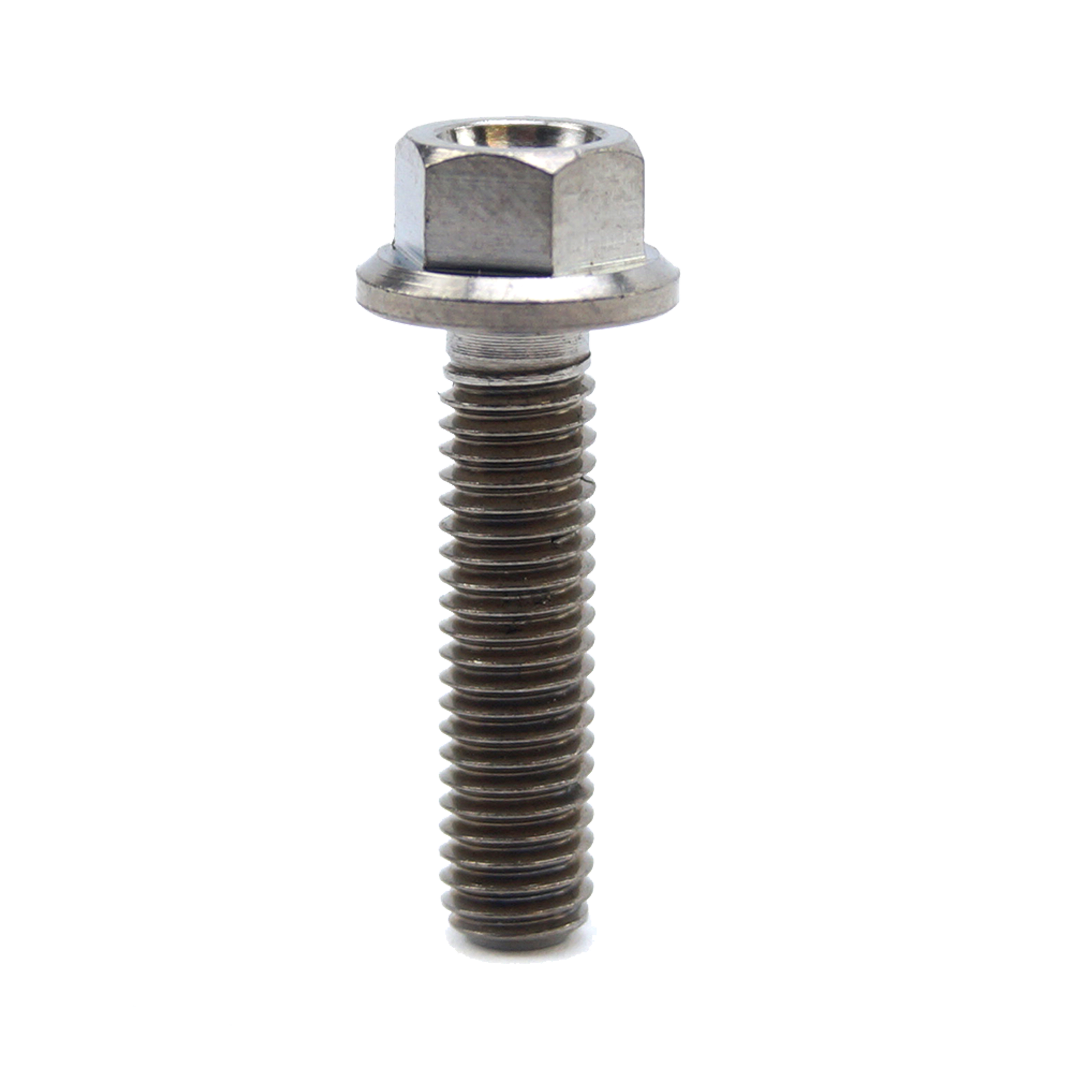

TITANIUM GR5 BOLT M5 x 20mm EACH, FLANGE OD: 9.90mm / HEX SIZE: 7mm, /
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply
Titanium Grade 5 (SF) standard flange bolt. M5 x 20mm. Material: Grade 5 (6Al/4V). Thread diameter M5. Pitch 0.80mm. Overall length 20mm. Thread length 18mm. Head size 7mm hex. Flange outer diameter 9.90mm. CNC machined with rolled threads. Super strong grade 5 titanium alloy for high strength, super-light properties, and fantastic anti-corrosion properties. Used in motorcycles, cycles, and much more. Part number 08-9605.020.
- SKU
- 08-9605.020
- Brand
- Factory Image Racing Titanium
- Availability
- In Stock (66)
- General Material
- Titanium
- General Product Group
- Nuts & Bolts
- General Product Type
- Bolt - Flange
- General Size
- M5 x 20mm
Show more +1Show less
- Variant Id
- 212043
FULL DESCRIPTION
Titanium Grade 5 Flange Bolt M5 x 20mm
This is a high-strength, lightweight M5 x 20mm flange bolt crafted from Grade 5 (6Al/4V) titanium alloy. Renowned for its exceptional strength-to-weight ratio and superior corrosion resistance, this bolt is ideal for a wide range of applications, including motorcycles and bicycles.
Key Features:
- Material: Grade 5 Titanium Alloy (6Al/4V)
- Thread Size: M5
- Thread Pitch: 0.80mm
- Overall Length: 20mm
- Thread Length: 18mm
- Head Type: Hex, 7mm spanner size
- Flange Outer Diameter: 9.90mm (Standard)
- Manufacturing: CNC machined with rolled threads for enhanced durability.
Each bolt is meticulously CNC machined from super strong Grade 5 titanium alloy, ensuring reliability and performance. The rolled threads offer superior strength compared to cut threads. Experience the benefits of titanium's high strength and incredibly light weight, combined with excellent anti-corrosion properties.
