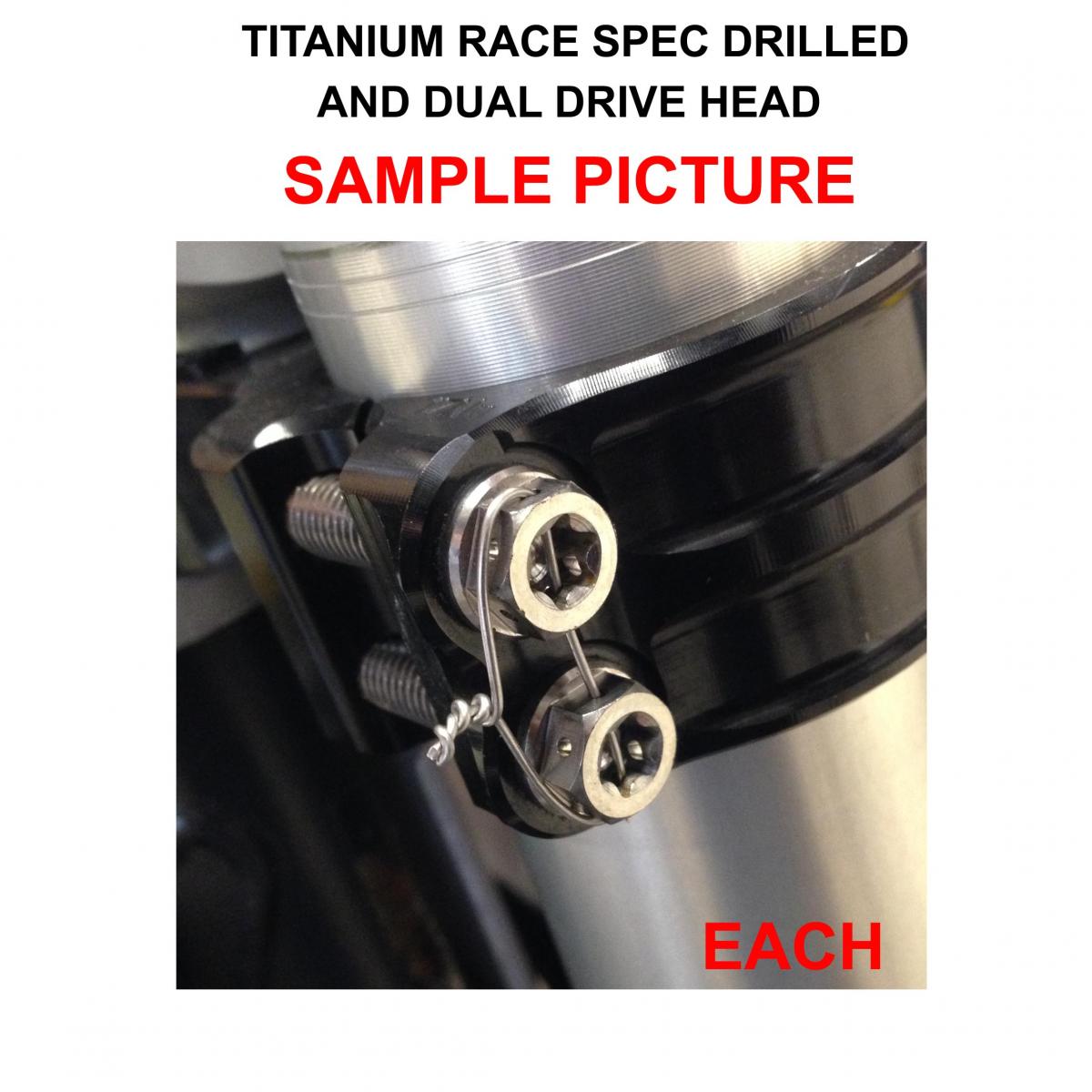

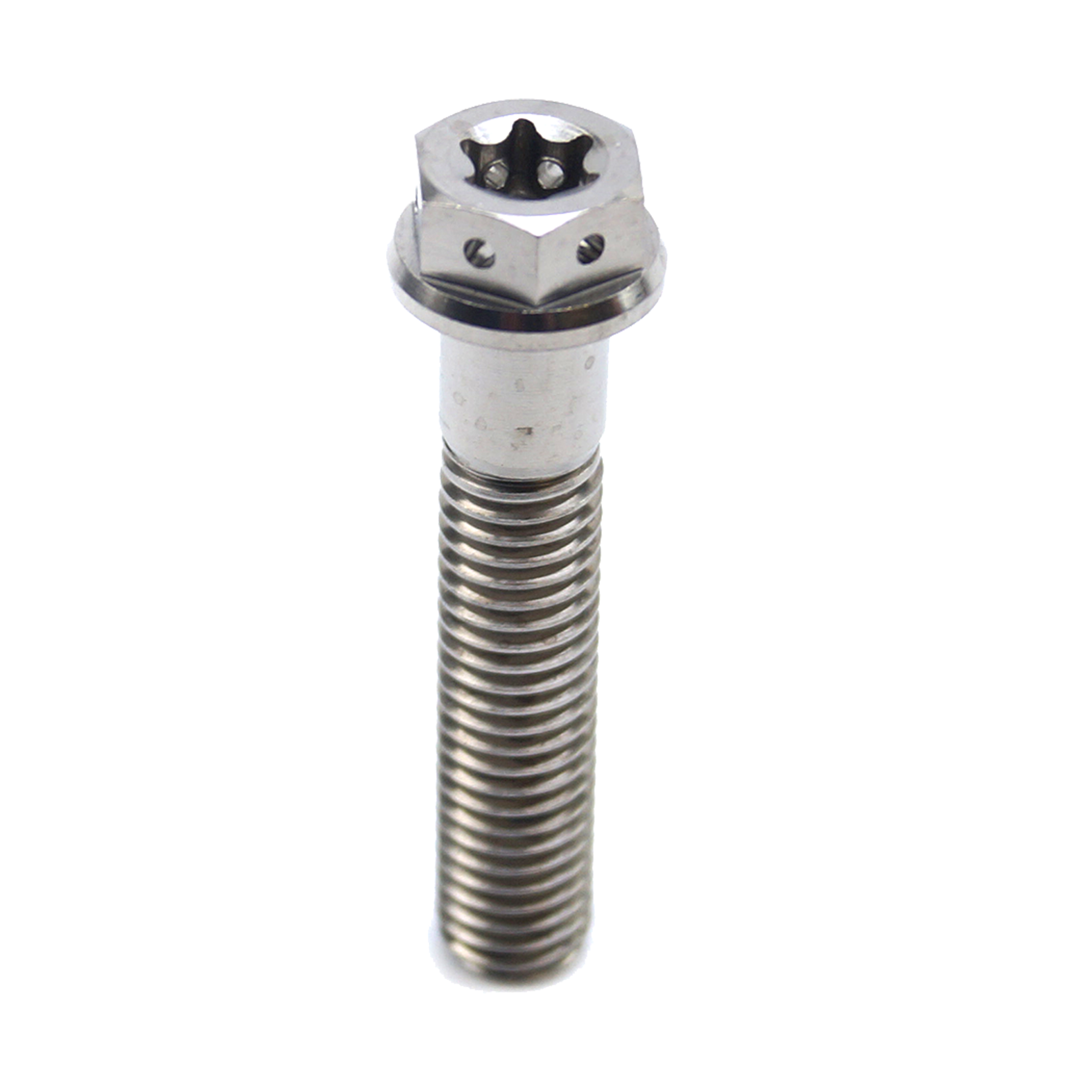

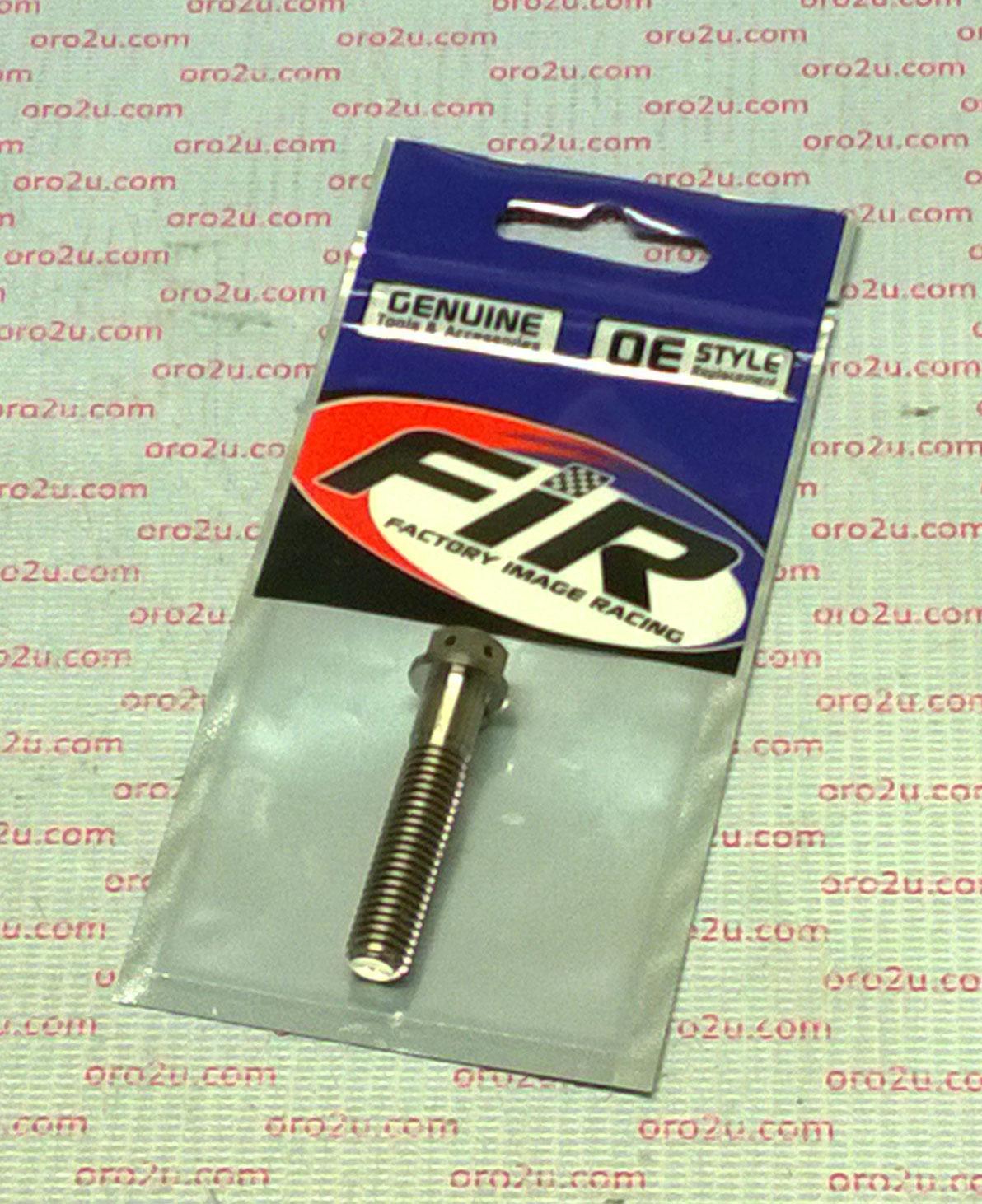

TITANIUM BOLT M8x40mmEACH, GRADE 5 / RACE SPEC DUALDRIVE, / KTM RE: 25080406
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply
TITANIUM BOLT M8x40mm, GRADE 5 / RACE SPEC DUALDRIVE, 50% lighter than standard and stronger than steel. Material: Aerospace Grade 5 (6Al/4V). Thread D: M8x1.25mm. Thread length: 31.00mm. Shank length: 9.00mm. Overall length: 46.30mm. Head OD: 12.80mm. Head W: 8.30mm. Head type: 10mm SPANNER & T40 TORX. QTY: 1. Titanium is corrosion proof. CNC machined from super-strong grade 5 titanium alloy, used for its high strength, super light properties, and fantastic anti-corrosion properties. Cross reference numbers: Ktm Husqvarna Husaberg OEM Re: New 0025080406 & Old 25080406. Part No: 08-9688.040.
- SKU
- 08-9688.040
- Brand
- Factory Image Racing Titanium
- Availability
- In Stock (67)
- General Material
- Titanium
- General Product Group
- Nuts & Bolts
- General Product Type
- Bolt - Hex
- General Size
- M8 x 40mm
Show more +1Show less
- Variant Id
- 212117
FULL DESCRIPTION
Factory Image Racing Titanium Bolt M8x40mm Grade 5, Race Spec DualDrive
Upgrade your motorcycle or automotive hardware with this high-performance M8x40mm Titanium Bolt from Factory Image Racing. Engineered for demanding applications, this bolt offers superior strength and a significant weight reduction compared to standard steel fasteners.
Crafted from Aerospace Grade 5 (6Al/4V) titanium alloy, this bolt provides exceptional durability, high tensile strength, and outstanding corrosion resistance. Its race-spec design and dual-drive head ensure versatility and ease of installation.
Key Features:
- Material: Aerospace Grade 5 (6Al/4V) Titanium Alloy
- Thread Size: M8 x 1.25mm
- Thread Length: 31.00mm
- Shank Length: 9.00mm
- Overall Length: 46.30mm
- Head Outside Diameter: 12.80mm
- Head Width (Span): 8.30mm
- Head Type: Dual Drive - 10mm Spanner and T40 Torx compatible
- Weight: 50% lighter than standard steel bolts
- Corrosion Proof: Resists rust and degradation
- Finish: CNC Machined
- Quantity: 1 Bolt
This titanium bolt is ideal for various applications where strength, lightness, and a premium finish are essential. Say goodbye to rusty hardware and embrace the long-lasting performance and factory look that titanium provides.
