SUZUKI PISTON KIT 06-11 LTR450 95.50 WOSSNER, WOSSNER 8667DB SUZUKI FORGED

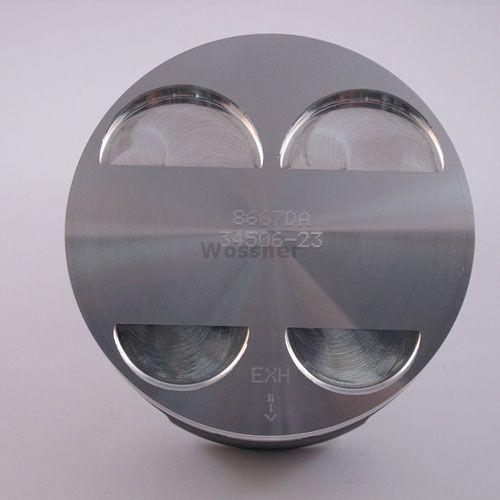

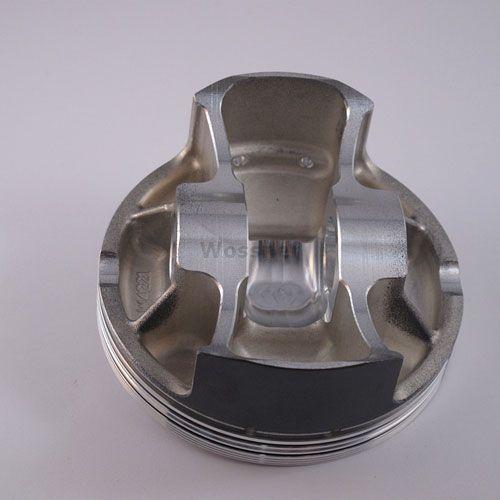

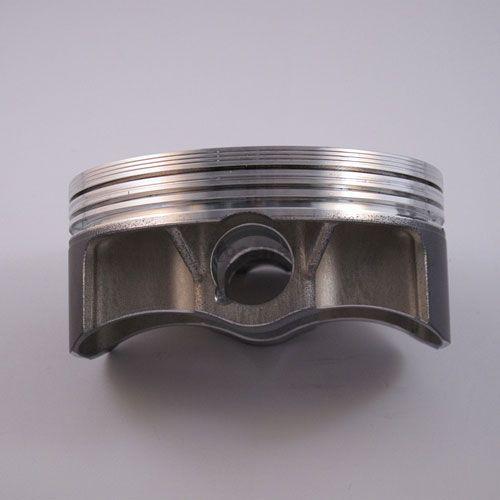

Wossner Forged Piston Kit for Suzuki LTR450

Enhance the performance and durability of your Suzuki LTR450 with this high-quality forged piston kit from Wossner. Engineered for precision and reliability, this piston is designed to withstand the demands of high-performance ATV riding.

Key Features

• Forged Construction: Offers superior strength and durability compared to cast pistons, ensuring longevity under extreme conditions.
• Advanced Heat Transfer: Designed for efficient transfer of combustion heat to cylinder walls, promoting optimal operating temperatures and performance.
• Elliptical Piston Profile: The carefully engineered elliptical shape helps distribute thrust loads evenly. This design prevents piston collapse and reduces localized stress, even under significant thermal expansion.
• German Engineering: Manufactured in Germany, guaranteeing exceptional quality and precision craftsmanship.

Specifications

• Bore Diameter: 95.510 mm
• Actual Bore Diameter: 95.46 mm
• Displacement: 450 cm³
• Stroke: 62.80 mm
• Piston Clearance: 0.05 mm
• Compression Height: 24.50 mm
• Dome Volume: -3.00 cm³
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 11.70:1

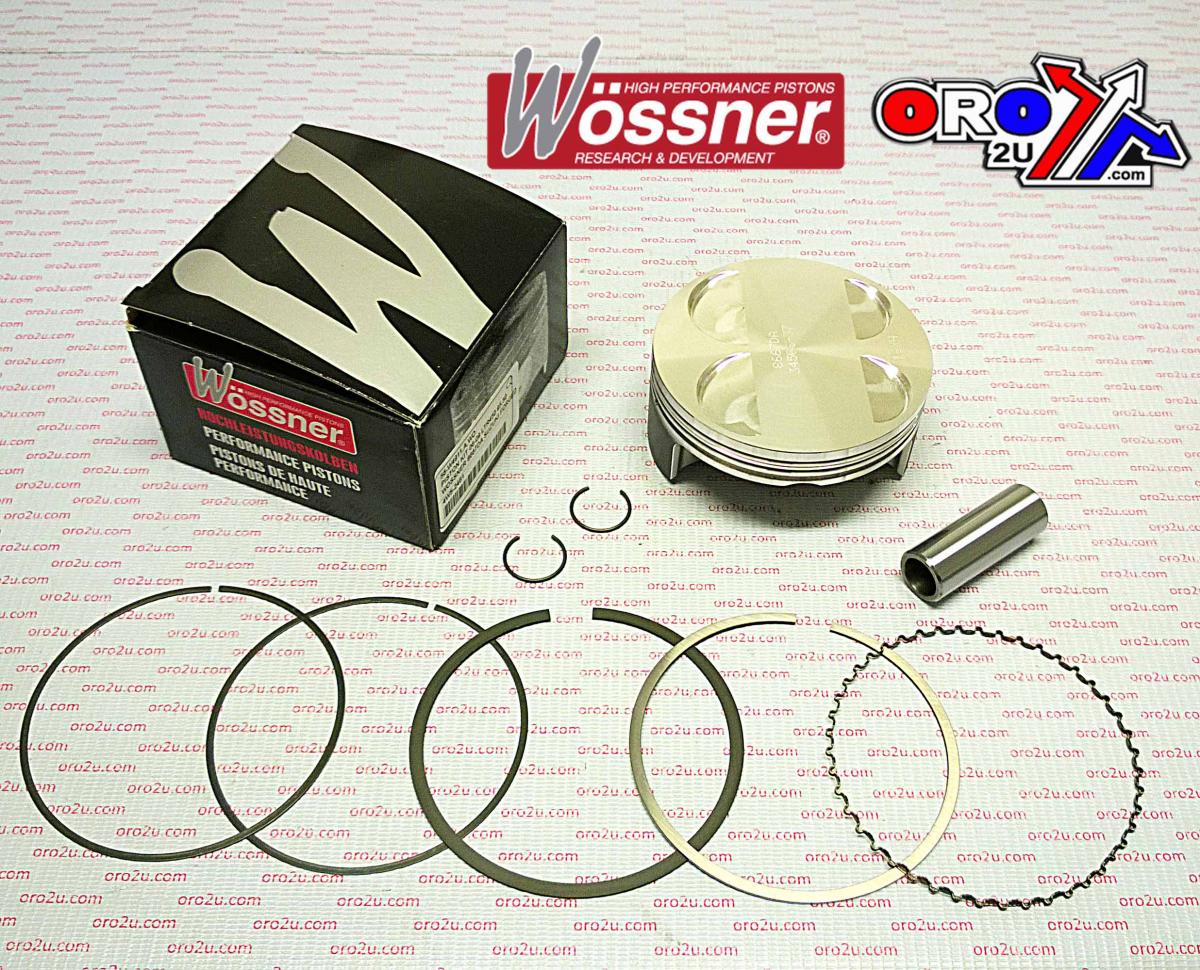

Kit Components

This kit includes:

• Forged Piston (Part No. 8667DB)
• Piston Rings (Part No. 955XSY)
• Piston Pin (Part No. WP037)
• Piston Pin Locks (Part No. CW19)
