SUZUKI PISTON KIT 06-09 LTR450 95.50 WOSSNER, WOSSNER 8667DC SUZUKI FORGED

£211.02Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

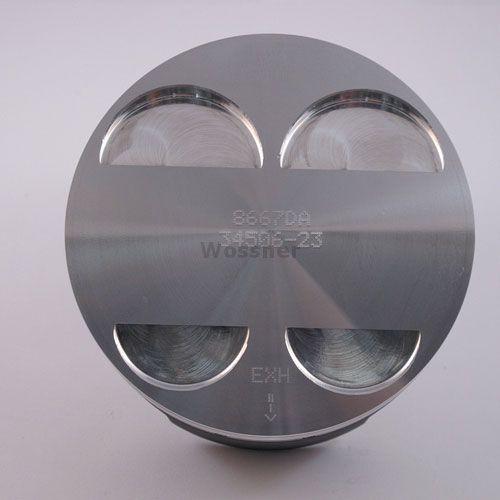

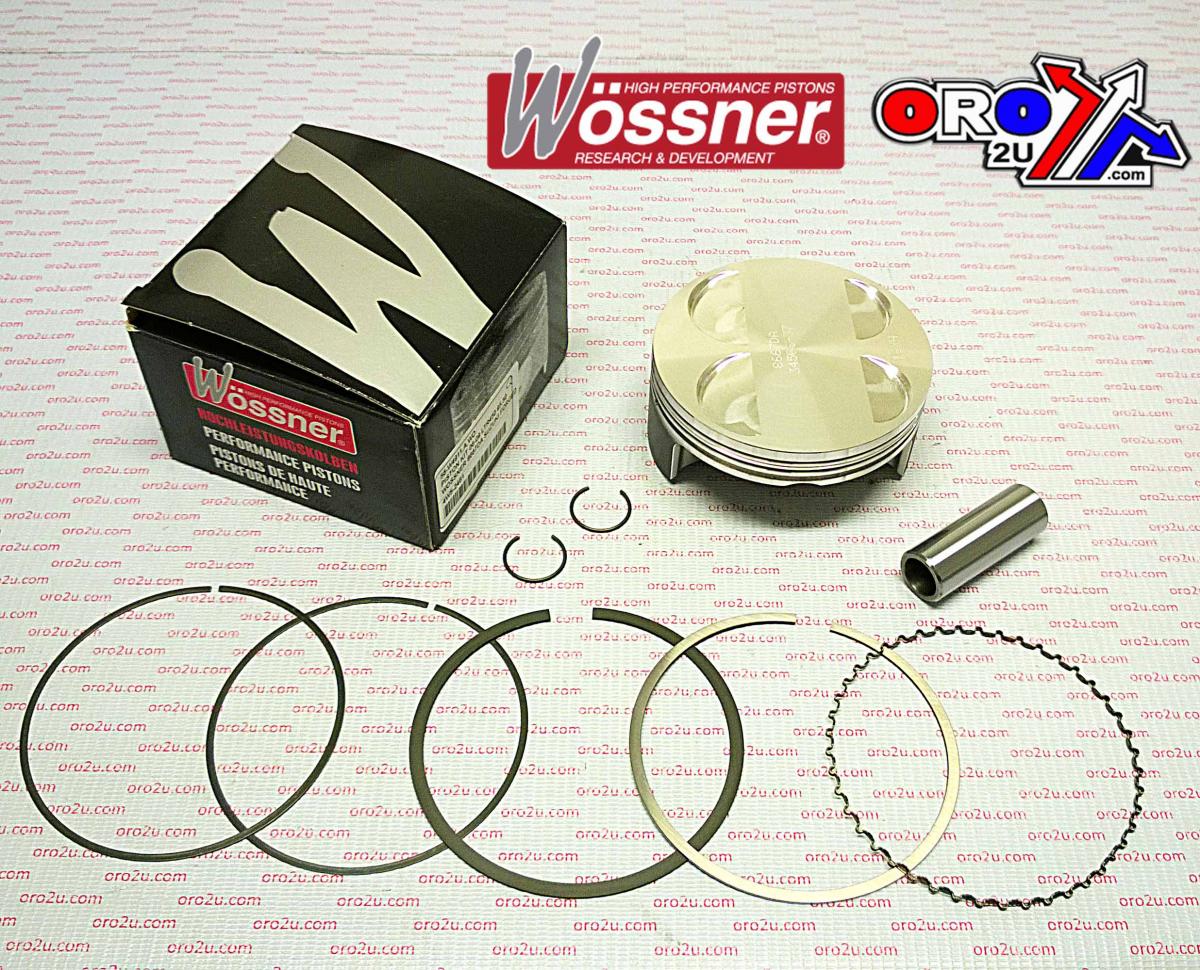

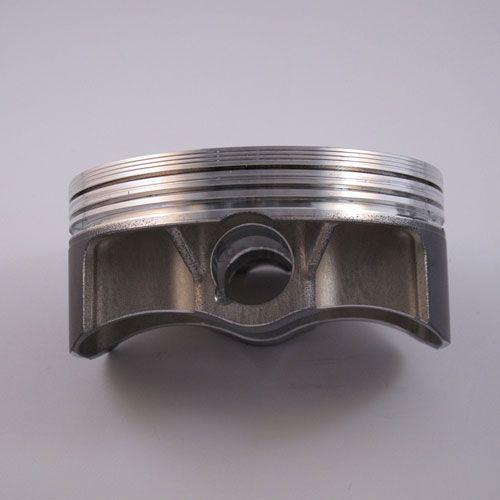

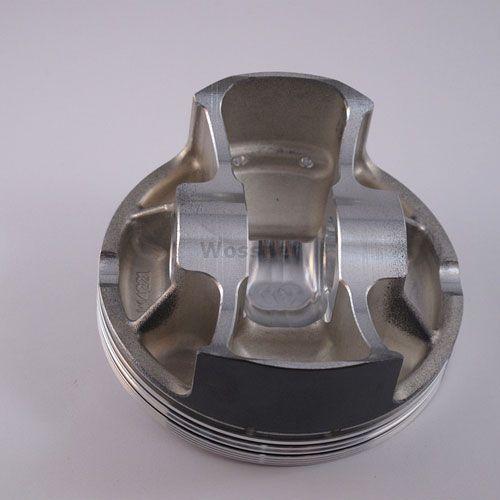

The Wossner 8667DC forged piston kit features a 95.52mm bore and is engineered for Suzuki LTR450 ATVs. Made in Germany, this piston is built for optimal strength and heat management. Its elliptical design ensures even load distribution, reducing stress and the risk of collapse under high temperatures. Features include a forged piston design for increased durability and structural integrity, optimized for efficient heat transfer to cylinder walls, and an elliptical shape that allows uniform pressure distribution during expansion. This design reduces localized pressure and prevents piston collapse. Specifications include a bore of 95.52 mm, actual bore diameter of 95.47 mm, display of 450 cm³, hub stroke of 62.80 mm, clearance of 0.05 mm, compression height of 24.50 mm, dome volume of -3.00 cm³, Wossner compression ratio of OEM, and OEM compression ratio of 11.70:1. Cross-reference OEM part numbers include Piston: 8667DC, Lock: CW19, Pin: WP037, Ring Set: 955XSY, Rod: P4011, and Part No.: 56-W4911.C.WO.

Specifications
SKU
56-W4911.C.WO
Brand
Wossner
Availability
In Stock (1)

Fitments (16)

MakeModelYear
SUZUKILT R 4502006
SUZUKILT R 4502007
SUZUKILT R 4502008
SUZUKILT R 4502009
SUZUKILT R 4502010
SUZUKILT R 4502011
SUZUKILT-R QUADRACER 4502006
SUZUKILT-R QUADRACER 4502007
SUZUKILT-R QUADRACER 4502008
SUZUKILT-R QUADRACER 4502009
SUZUKILT-R QUADRACER 4502010
SUZUKILT-R QUADRACER 4502011
SUZUKILTR 4502006
SUZUKILTR 4502007
SUZUKILTR 4502008
SUZUKILTR 4502009
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
95.5mm
Variant Id
256352
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Wossner Forged Piston Kit for Suzuki LTR450

This Wossner forged piston kit is engineered for enhanced performance and durability. Manufactured in Germany, this high-quality piston is designed to withstand extreme conditions and provide optimal engine efficiency.

Key Features:

  • Forged Design: Provides superior strength and structural integrity compared to cast pistons, ensuring longevity under demanding use.
  • Heat Management: Optimized for efficient heat transfer, contributing to consistent engine operating temperatures and performance.
  • Elliptical Shape: Features an innovative elliptical design that promotes uniform pressure distribution during the piston's expansion cycle.
  • Reduced Stress: The elliptical design effectively reduces localized pressure points, minimizing the risk of piston collapse, especially under high temperatures.
  • German Engineering: Precision manufactured in Germany, adhering to strict quality standards for reliability and performance.

Specifications:

  • Bore: 95.52 mm
  • Actual Bore Diameter: 95.47 mm
  • Engine Displacement: 450 cm³
  • Stroke: 62.80 mm
  • Piston Clearance: 0.05 mm
  • Compression Height: 24.50 mm
  • Dome Volume: -3.00 cm³
  • Wossner Compression Ratio: OEM
  • OEM Compression Ratio: 11.70:1

Component Details:

  • Piston Part Number: 8667DC
  • Lock Ring: CW19
  • Piston Pin: WP037
  • Ring Set: 955XSY
  • Connecting Rod: P4011
