STATOR HONDA TRX680 15-18, BRONCO AT-01447
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
BRONCO AT-01447 Electrics Stator for Honda TRX680FA/FGA Rincon 2015-2018. OEM-style stators with direct plug-in design, including all rubbers and OEM-style plug ends. Some models feature a high-performance heavy-duty Hot Shot series version with Mosfet technology. Specifications include an inner diameter of 54 mm, outer diameter of 115 mm, 1 connector, 5 wires, 18 coils, wire length of 34 cm, pickup coil hole of 5.5 mm, and center-to-center distance of 38 mm. Part No. 44-0520.BR. Cross reference number: 31120-HN8-F41.
- SKU
- 44-0520.BR
- Brand
- Bronco
- Availability
- In Stock (3)
- General Product Group
- Ignition & Electrical Parts
- General Product Type
- Stator
- Variant Id
- 280948
FULL DESCRIPTION

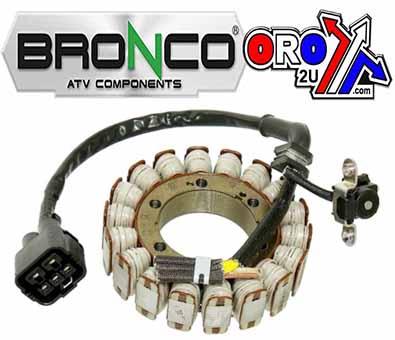

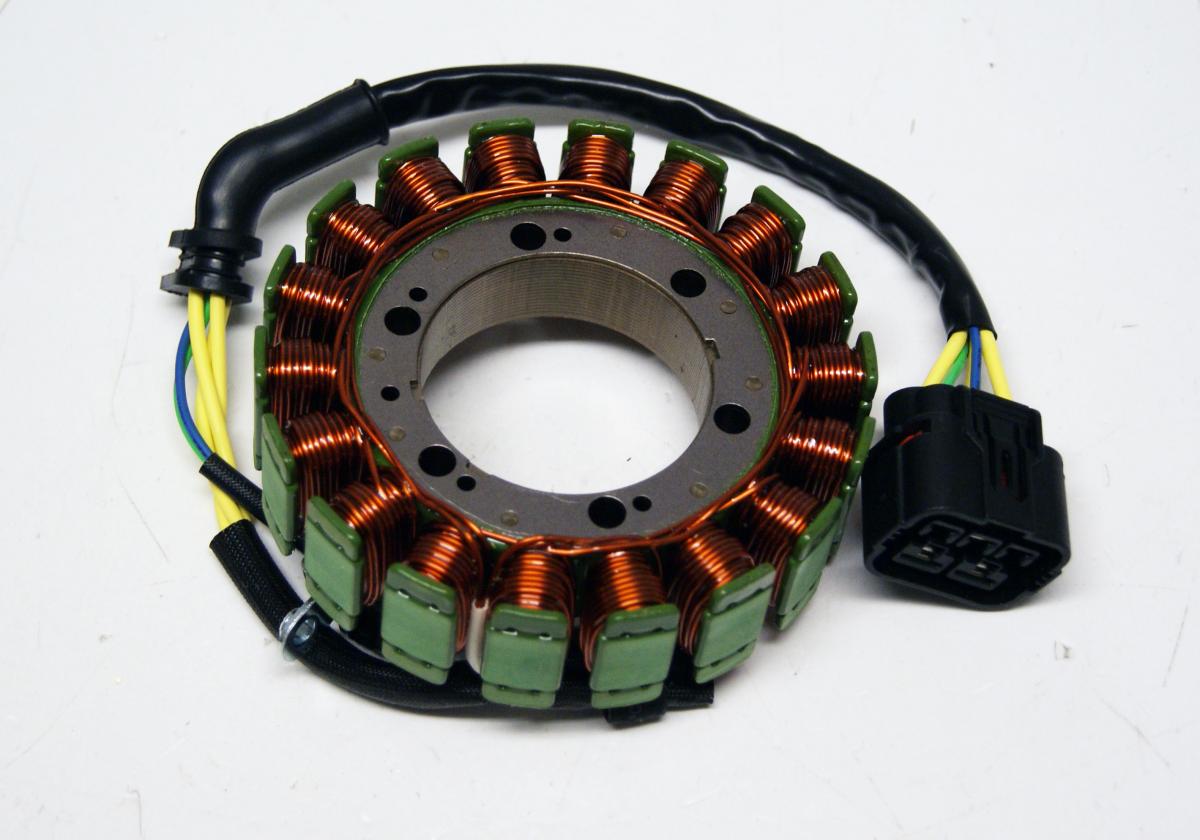

BRONCO Electrics Stator for Honda TRX680 Rincon
This BRONCO electic stator is designed as an OEM style replacement part for your Honda TRX680 Rincon. It provides a direct plug-in solution, ensuring a straightforward installation process. The stator comes complete with all necessary rubbers and an OEM style plug end for seamless integration.
For select models, a high-performance heavy-duty Hot Shot series version is available. This premium version utilizes special Mosfet technology to prevent overheating, ensuring reliable performance even under demanding conditions.
Key Features:
- OEM style replacement stator.
- Direct plug-in design for easy installation.
- Includes all necessary rubbers.

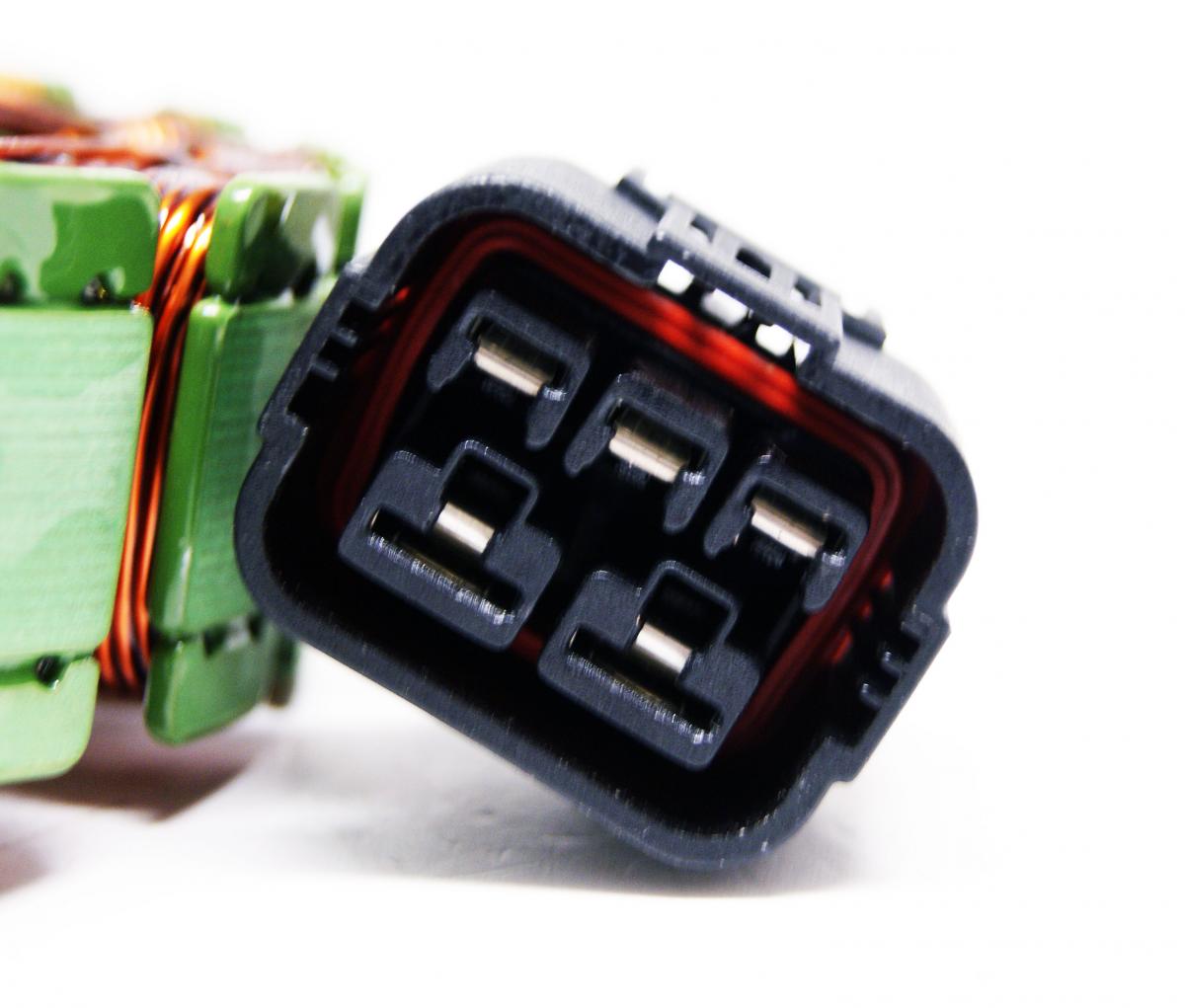

- Features an OEM style plug end.
- Hot Shot series version available for select models (uses Mosfet technology to prevent overheating).
Specifications:
- Internal Diameter (I.D.): 54 mm
- External Diameter (O.D.): 115 mm
- Connectors: 1 connector
- Wires: 5 wires
- Coils: 18 coils
- Wire Length: 34 cm

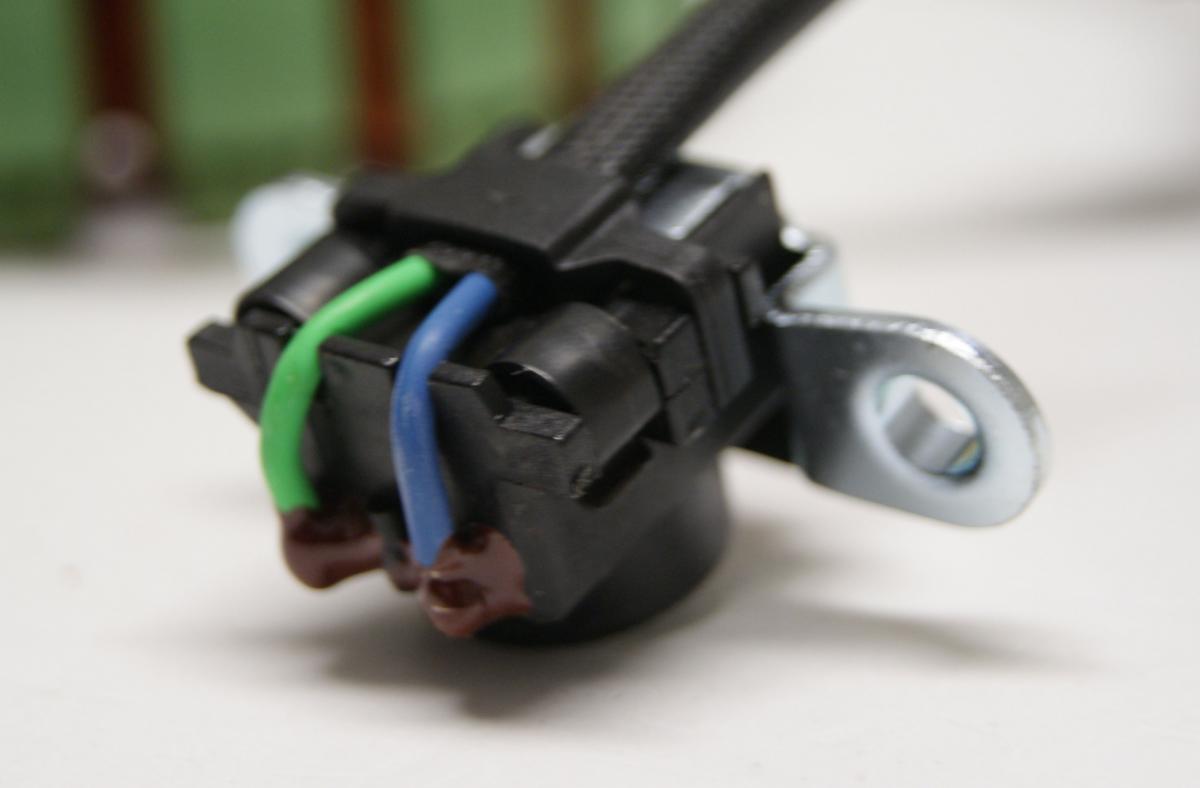

- Pickup Coil Hole: 5.5 mm
- Center to Center (c to c): 38 mm
