STATOR COIL VL1500, ARROWHEAD ASU4026, 32101-10F10, 32101-10F11
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

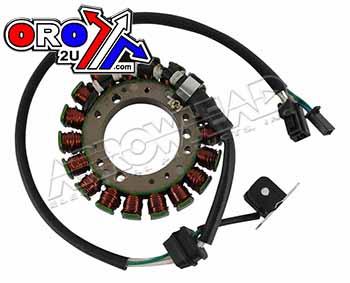

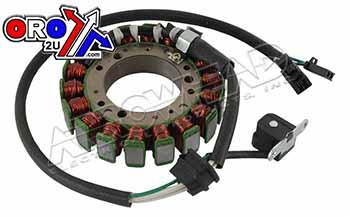

STATOR COIL ARROWHEAD ASU4026. Suzuki VL1500 C90 Boulevard Cruiser and C90T Boulevard Touring models. ID 53.5mm OD 115.6mm. Width (OD) 29.3mm, (ID) 20.2mm. Features 18 posts and 3 mounting holes measuring 6.4mm, and 4 holes measuring 4.81mm. Includes pickup coil. Main plug and pickup plug cord length is 24 inches. Clamp on stator to grommet cord length is 5 inches. Pickup coil cord length is 1.75 inches. Replaces OE numbers 32101-10F10 and 32101-10F11.
- SKU
- 44-9787.AH
- Brand
- Arrowhead Electrical
- Availability
- In Stock (1)
- General Product Group
- Ignition & Electrical Parts
- General Product Type
- Stator Coil
- Variant Id
- 280763
FULL DESCRIPTION
Arrowhead Stator Coil for Suzuki Motorcycles
This high-quality stator coil is designed to replace the original component on specific Suzuki motorcycle models. It is engineered to provide reliable electrical power generation, ensuring your motorcycle's electrical system functions optimally.
Key Features:
- Durable Construction: Built to withstand the demands of motorcycle riding.
- Precise Fitment: Engineered as a direct replacement for specific OEM stator coils.
- Integrated Pickup Coil: Includes a pickup coil for accurate ignition timing.

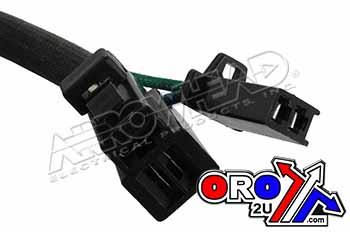

- Multiple Wire Lengths: Features a main plug with a 24-inch cord, a clamp-on stator to grommet cord of 5 inches, and a pickup coil cord of 1.75 inches.
- Specific Dimensions:
- Inner Diameter (ID): 53.5mm
- Outer Diameter (OD): 115.6mm
- Width (OD): 29.3mm
- Width (ID): 20.2mm
- Mounting Details:
- Number of Posts: 18
- Mounting Holes: 3 holes at 6.4mm and 4 holes at 4.81mm.
This stator coil is a direct cross-reference for part numbers 32101-10F10 and 32101-10F11.
