STATOR COIL CBR600RR 2007-2012, ARROWHEAD AHA4063, STREET

£90.79

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Out of Stock

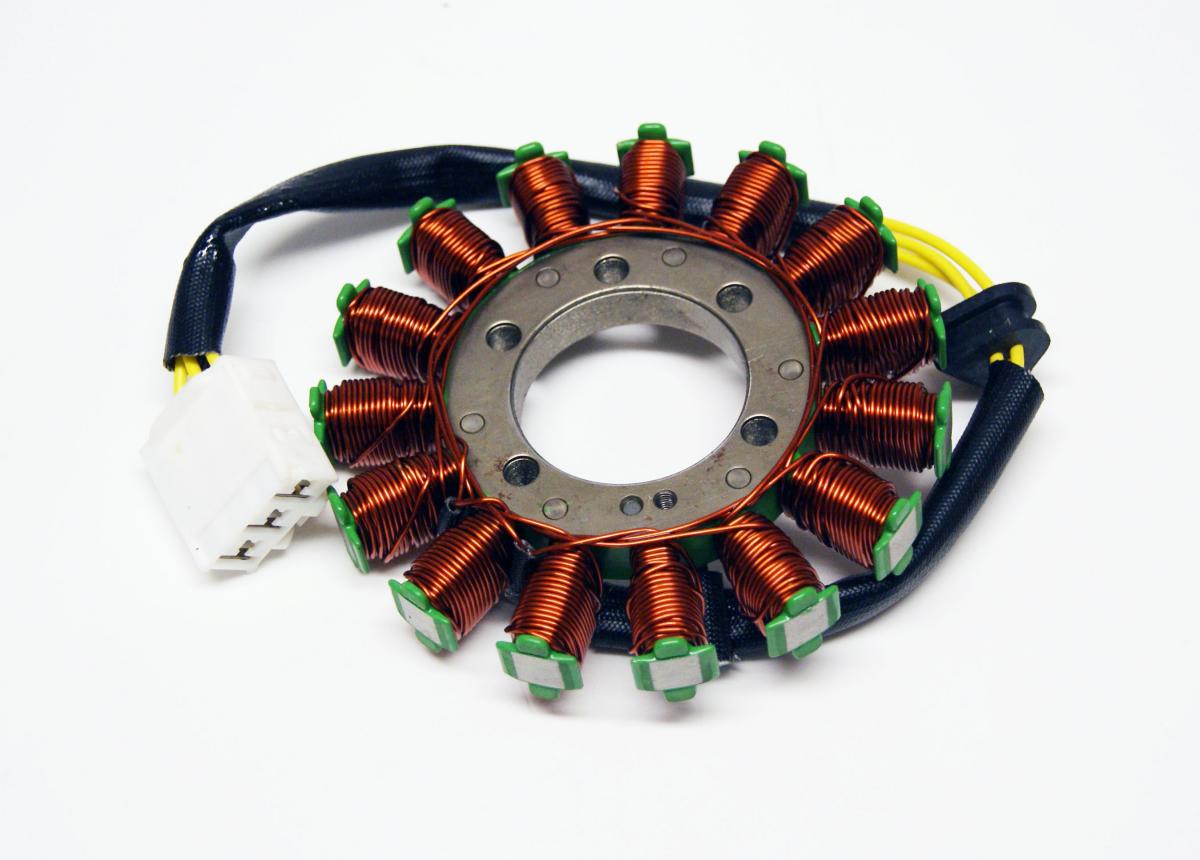

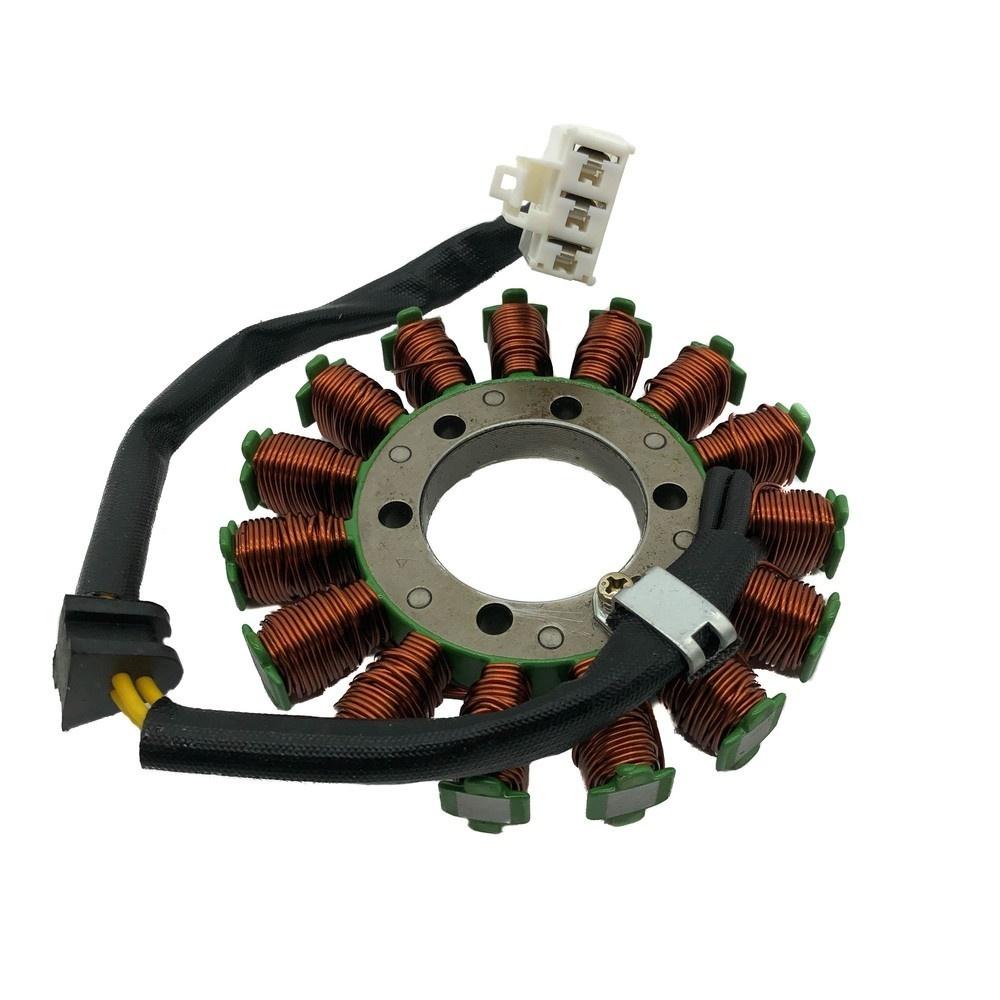

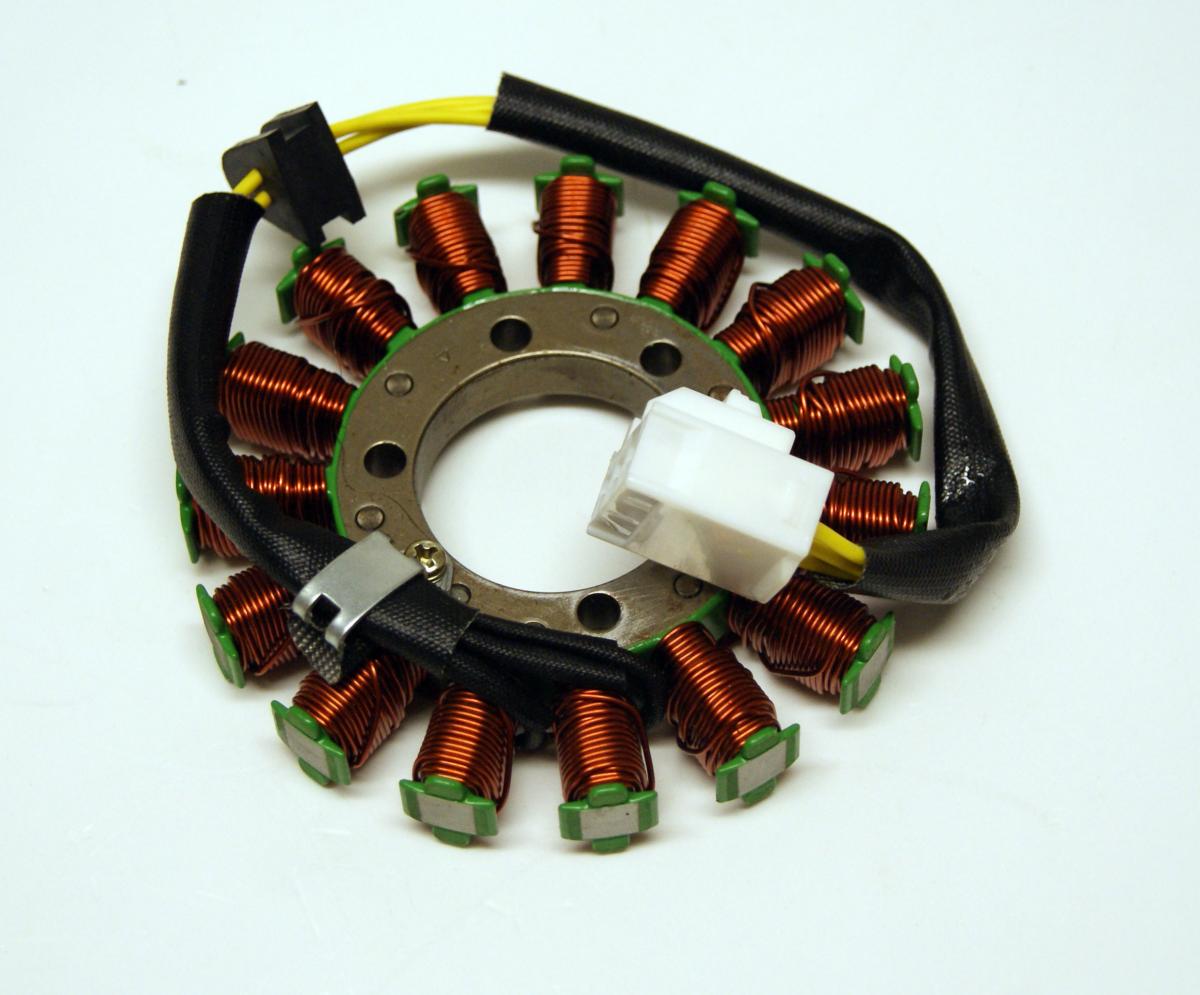

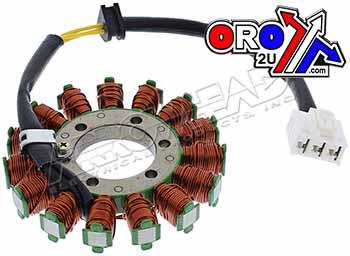

OEM-style replacement stator coil for Honda CBR600RR models, designed to meet or exceed original specifications. This high-quality stator ensures reliable performance and includes all necessary rubber fittings and OEM-style plug ends for a hassle-free installation. Features: OEM-style replacement stator coil. Complete with all rubbers and OEM-style 3-pin plug end. Built to regulate additional current with heavy-duty regulator/rectifiers. Reliable performance and durability. Specifications: Inner Diameter (ID): 41.5mm. Outer Diameter (OD): 114.25mm. Width: 20.57mm. Number of Posts: 15. Mounting Holes: 5 (6.4mm). Harness Length: 95mm (stator to double grommet). Harness Length: 210mm (end of plug to single grommet). Plug: 1 x 3-pin. Cross Reference Numbers: AHA4063, 340-58048, 31120-MFJ-D01. Manufacturer: Arrowhead Electrical.

Specifications
SKU
44-9689.AH
Brand
Arrowhead Electrical
Availability
Out of Stock

Fitments (6)

MakeModelYear
HONDACBR600RR (All)2007
HONDACBR600RR (All)2008
HONDACBR600RR (All)2009
HONDACBR600RR (All)2010
HONDACBR600RR (All)2011
HONDACBR600RR (All)2012
General Product Group
Ignition & Electrical Parts
General Product Type
Stator Coil
Variant Id
287320
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Arrowhead Stator Coil for Honda CBR600RR

Upgrade your motorcycle's electrical system with this OEM-style replacement stator coil for Honda CBR600RR models. Engineered to meet or exceed original equipment specifications, this stator coil is built for reliable performance and durability. It is designed to regulate additional current, making it ideal for use with heavy-duty regulator/rectifiers. Installation is straightforward with the included rubber fittings and an OEM-style plug end.

Key Features:

  • Direct replacement stator coil for Honda CBR600RR.
  • High-quality construction ensures reliable electrical output.
  • Includes all necessary rubber fittings for a secure installation.

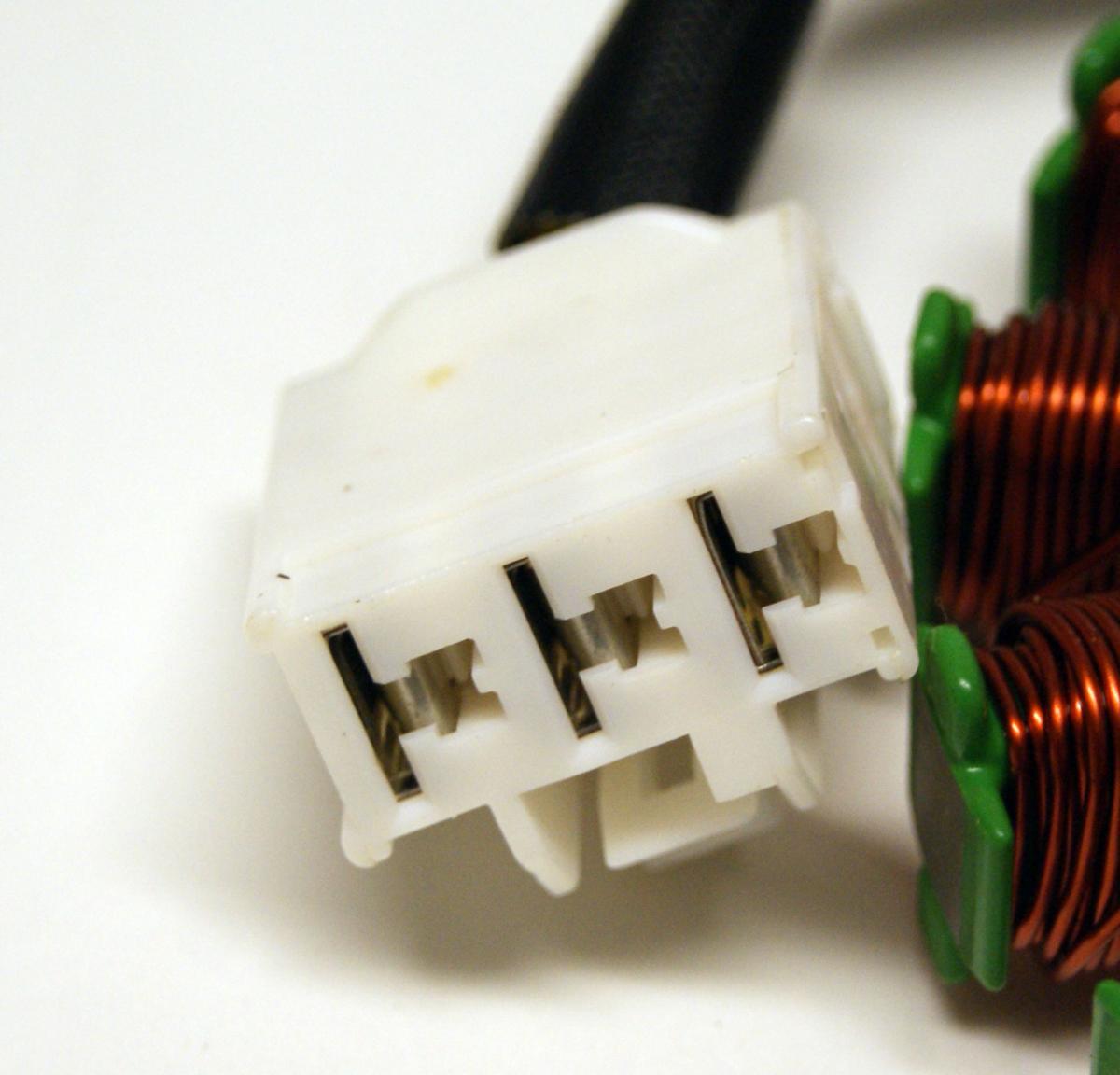

  • Features an OEM-style 3-pin plug for easy connection.
  • Built to support heavy-duty regulator/rectifiers and manage extra current.
  • Designed for dependable performance and long-lasting use.

Specifications:

  • Inner Diameter (ID): 41.5mm
  • Outer Diameter (OD): 114.25mm
  • Width: 20.57mm
  • Number of Posts: 15
  • Mounting Holes: 5 (6.4mm)
  • Harness Length (stator to double grommet): 95mm
  • Harness Length (end of plug to single grommet): 210mm
  • Plug Type: 1 x 3-pin

Cross Reference Numbers:

  • AHA4063
  • 340-58048
  • 31120-MFJ-D01
