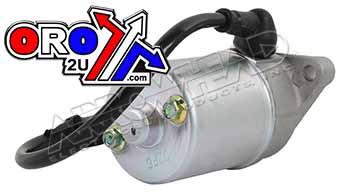

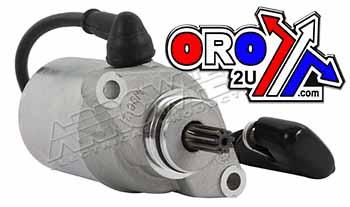

STARTER MOTOR BOMBARDIER 70/90cc, ARROWHEAD SMU0501, 410-54261
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply
STARTER MOTOR ARROWHEAD SMU0501. PMDD; 12-Volt; CCW; 9-Spline; 8.6mm Pinion OD, 17mm Length; 26mm Registry OD; (2) 6.7mm ID Unthreaded Mounting Holes; 64.7mm Center-To-Center; 87mm Flange-To-Rear; 240mm B+ Cable w/6.3mm ID Eyelet. Cross Reference Numbers: 410-54261, V31200-DGF-010, V31200-DGF-020, V31200-DGF-020LL.
- SKU
- 44-0028.AH
- Brand
- Arrowhead Electrical
- Availability
- In Stock (1)
Fitments (8)
| Make | Model | Year |
|---|---|---|
| CAN-AM | DS -X Mini | 2008 |
| CAN-AM | DS -X Mini | 2009 |
| CAN-AM | DS -X Mini | 2010 |
| CAN-AM | DS -X Mini | 2011 |
| CAN-AM | DS -X Mini | 2012 |
| CAN-AM | DS -X Mini | 2013 |
| CAN-AM | DS -X Mini | 2014 |
| CAN-AM | DS -X Mini | 2015 |
- General Product Group
- Ignition & Electrical Parts
- General Product Type
- Starter Motor
- Variant Id
- 287228
FULL DESCRIPTION
Arrowhead Starter Motor for Can-Am ATVs
Ensure your Can-Am ATV starts reliably with this high-quality starter motor from Arrowhead Electrical. Designed as a direct replacement, this starter motor provides dependable performance for your vehicle.
Key Features:
- Type: PMDD Starter Motor
- Voltage: 12-Volt
- Rotation: Counterclockwise (CCW)
- Spline Count: 9-Spline
- Pinion Specifications: 8.6mm Outside Diameter (OD), 17mm Length
- Registry OD: 26mm
- Mounting Holes: (2) 6.7mm Inside Diameter (ID) Unthreaded Mounting Holes
- Center-To-Center Distance: 64.7mm
- Flange-To-Rear Measurement: 87mm
- B+ Cable: 240mm length with a 6.3mm ID eyelet
This starter motor is built to meet or exceed original equipment specifications, offering a durable and efficient solution for your starting needs. Its precise design ensures a proper fit and easy installation.
Cross Reference Numbers: 410-54261, V31200-DGF-010, V31200-DGF-020, V31200-DGF-020LL
