SHOCK HD ATV REAR POLARIS, AU-04415

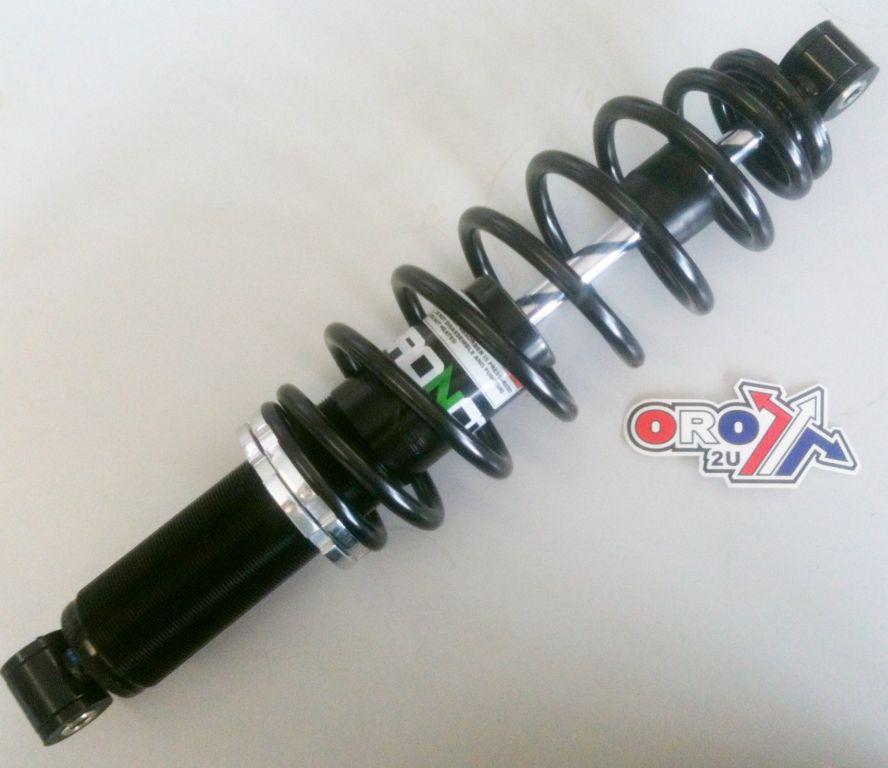

Bronco Heavy Duty Gas Shock Absorber

Upgrade your ATV's suspension with the Bronco Heavy Duty Gas Shock Absorber. This shock absorber is engineered for consistent performance, providing a superior damping solution compared to standard oil-only shocks.

Key Features:

• Enhanced Spring Rate: Features 10% stiffer springs to improve ride quality and increase the vehicle's load-carrying capacity.
• Snow Plow Ready: An excellent choice for the front of your ATV when installing a snow plow, offering the necessary robustness.
• Sleek Aesthetics: Finished in a smooth black that complements the original look of most OEM ATVs.
• Simplified Installation: Designed as a direct bolt-on replacement with the spring pre-installed for immediate mounting.

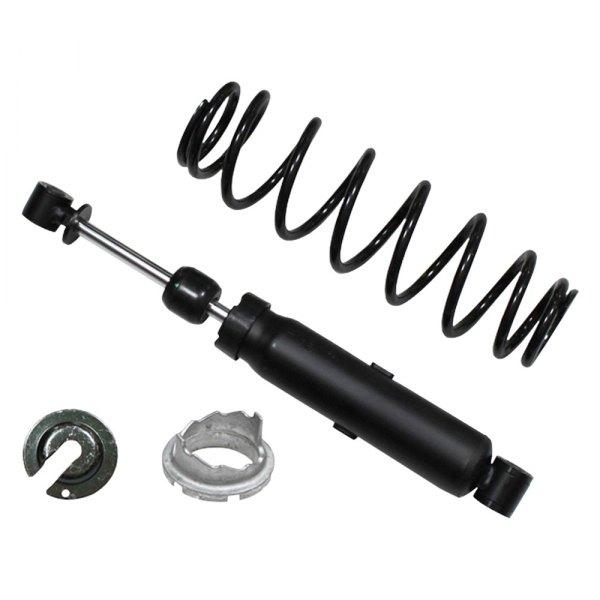

• Complete Unit: Sold individually and includes one shock absorber with its spring and spring retainers.

Specifications:

• Top Hole Inner Diameter: 10 mm
• Top Eyelet Width: 30 mm
• Bottom Hole Inner Diameter: 10 mm
• Bottom Eyelet Width: 35.5 mm
• Tube Outer Diameter: 50.8 mm
• Stroke Length: 133 mm
• Spring Outer Diameter: 96 mm
• Spring Wire Diameter: 9.5 mm
• Spring Rate: 106 lbs/inch
• Spring Rate: 1.90 kg/mm
• Center to Center Mount Distance: 407 mm (16 inches)

Part Numbers:

• Bronco Reference: AU-04415
• Kimplex/OEM Reference: 7043100
