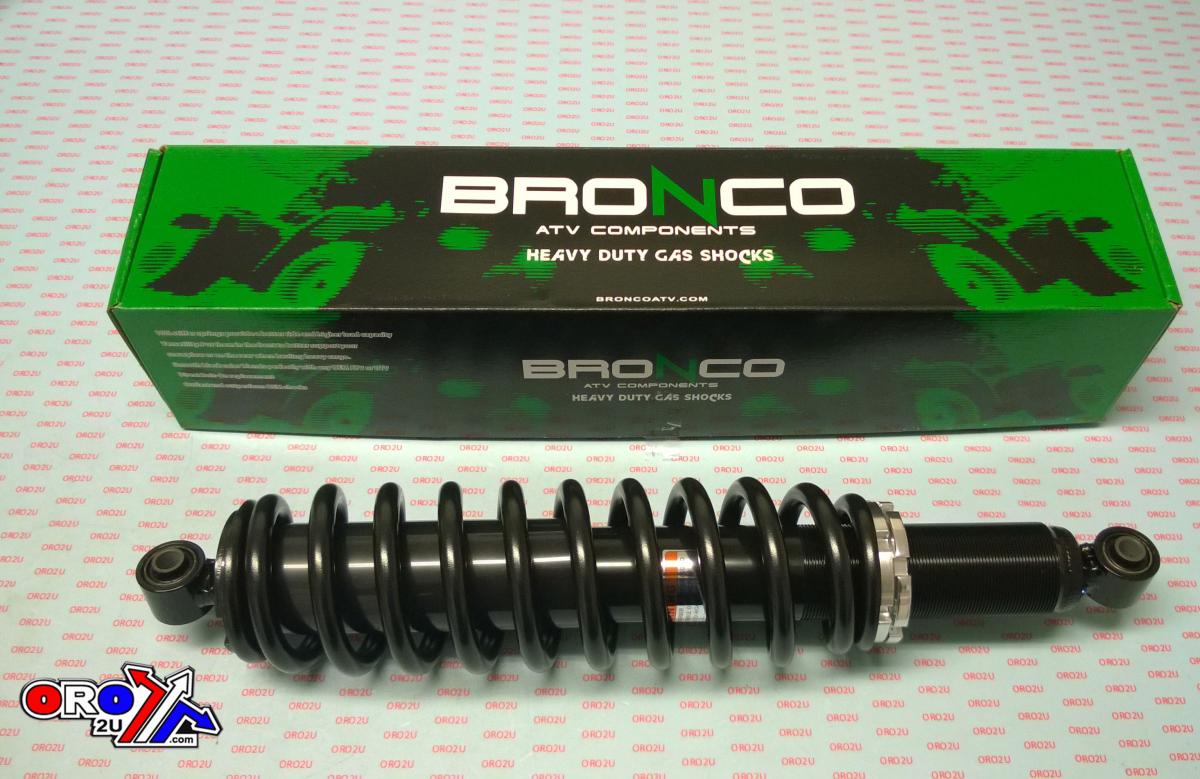

SHOCK FRONT YAMAHA GRIZZLY VIKING, BRONCO AU-04338, 1XD-F3390-00-00
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Bronco Heavy Duty Gas Shocks AU-04338 offer a performance boost over stock shocks with 10% stiffer springs for improved ride quality and higher load capacity. Ideal for heavy-duty use or when adding accessories like snow plows. Features a smooth black finish for a seamless look and is a direct bolt-on replacement with a pre-installed spring for easy installation. Sold individually, each shock includes the spring and spring retainers. Specifications include: Position Top Hole I.D. 10 mm, Top Eyelet Width 32 mm, Bottom Hole I.D. 10 mm, Bottom Eyelet Width 32 mm, Tube O.D. 44 mm, Stroke TBA, Spring O.D. 88 mm, Spring Wire Diameter 10 mm, Spring Rate 185 lbs/inch, Spring Rate 3.30 kg/mm, and Center to Center 430 mm (17 inches). Part No. 29-5807. Cross-Reference Number: 1XD-F3390-00-00. Manufacturer: Bronco.
- SKU
- 29-5807
- Brand
- Bronco
- Availability
- In Stock (11)
Fitments (19)
| Make | Model | Year |
|---|---|---|
| YAMAHA | GRIZZLY 4X4 700 | 2014 |
| YAMAHA | GRIZZLY 4X4 700 | 2015 |
| YAMAHA | GRIZZLY 4X4 700 | 2016 |
| YAMAHA | GRIZZLY 4X4 700 | 2017 |
| YAMAHA | GRIZZLY 4X4 700 | 2018 |
| YAMAHA | GRIZZLY 4X4 700 | 2019 |
| YAMAHA | GRIZZLY 4X4 700 | 2020 |
| YAMAHA | GRIZZLY EPS 700 | 2016 |
| YAMAHA | GRIZZLY EPS 700 | 2017 |
| YAMAHA | GRIZZLY EPS 700 | 2018 |
| YAMAHA | GRIZZLY EPS 700 | 2019 |
| YAMAHA | GRIZZLY EPS 700 | 2020 |
| YAMAHA | YXM VIKING 700 | 2014 |
| YAMAHA | YXM VIKING 700 | 2015 |
| YAMAHA | YXM VIKING 700 | 2016 |
| YAMAHA | YXM VIKING 700 | 2017 |
| YAMAHA | YXM VIKING 700 | 2018 |
| YAMAHA | YXM VIKING 700 | 2019 |
| YAMAHA | YXM VIKING 700 | 2020 |
- General Product Group
- Suspension & Drive Parts
- General Product Type
- Shock Absorbers
- Variant Id
- 285786
FULL DESCRIPTION
BRONCO HEAVY DUTY GAS SHOCKS AU-04338
Upgrade your ride with Bronco Heavy Duty Gas Shocks. These shocks offer a substantial improvement over standard oil-damped units. Featuring 10% stiffer springs, they deliver enhanced ride quality and increased load capacity, making them perfect for rigorous use or when equipping accessories like snow plows.
Key Features:
- 10% Stiffer Springs: Provides a better ride and supports higher loads.
- Ideal for Snow Plows: Effectively supports the added weight on front suspension systems.
- Sleek Black Finish: Offers a smooth black finish that complements the original equipment look.
- Easy Installation: Comes with a pre-installed spring for a direct bolt-on replacement process.
- Complete Unit: Sold individually and includes the spring and spring retainers.
Specifications:
- Position Top Hole I.D: 10 mm
- Top Eyelet Width: 32 mm
- Bottom Hole I.D: 10 mm
- Bottom Eyelet Width: 32 mm
- Tube O.D: 44 mm
- Stroke: To Be Announced
- Spring O.D: 88 mm
- Spring Wire Diameter: 10 mm
- Spring Rate: 185 lbs/inch
- Spring Rate: 3.30 kg/mm
- Center to Center Length: 430 mm (17 inches)
Cross-Reference Part Number: 1XD-F3390-00-00
These Bronco Gas Shocks are designed to provide a durable and responsive upgrade, enhancing the performance and capability of your vehicle.
