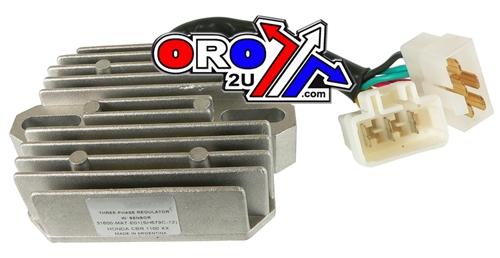

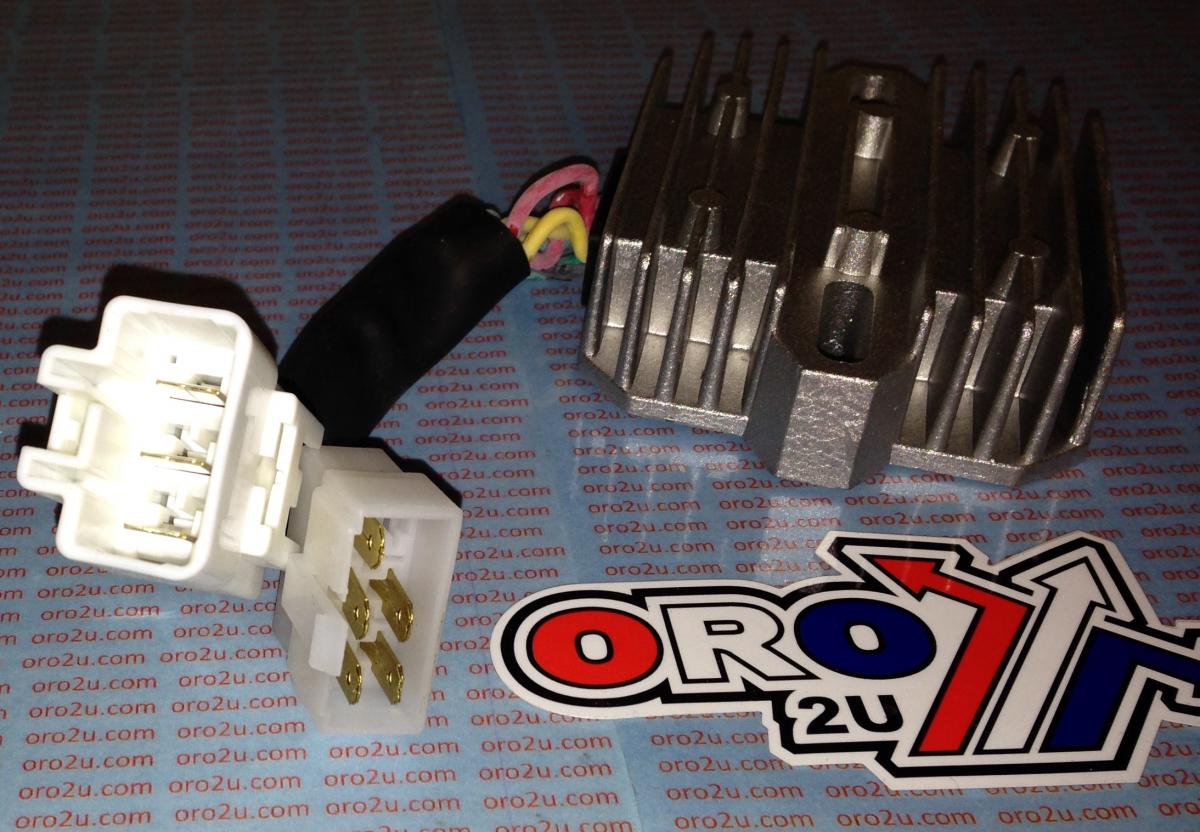

REGULATOR VOLTAGE CBR1100XX. This voltage regulator is a direct OEM replacement. It is factory tested for 100% reliability and designed to handle increased power loads. Technical specifications include: 12V, 35A, TRIFASICO input type, SCR technology, CC output type, 28mm height, 80mm width, 110mm length, 85mm pitch, and includes a sensor. Connection information: RED wires to Battery +, GREEN wires to Battery -, BLACK wires to SENSOR, YELLOW wires to CHARGING COIL. Dimensions: 80mm L x 90mm W x 28mm H with a hole distance of 66mm. Important note: do not spin the flywheel without the ground connected. Cross reference numbers: AHA6046, 20-5309, 31600-MAT-E01, SH579C-12.
- SKU
- 44-5927.AH
- Brand
- Arrowhead Electrical
- Availability
- In Stock (1)
- General Product Group
- Ignition & Electrical Parts
- General Product Type
- Voltage Reulator
- Variant Id
- 242418
FULL DESCRIPTION
Voltage Regulator for Honda Motorcycles
This high-quality voltage regulator is designed as a direct OEM replacement for specific Honda motorcycle models. Engineered to meet or exceed original equipment manufacturer (OEM) specifications, it ensures reliable performance and durability.
Key Features:
- Voltage: 12V
- Current: 35A
- Input Type: Three-phase
- Technology: SCR
- Output Type: DC (Direct Current)
- Dimensions: 80mm Length x 90mm Width x 28mm Height
- Mounting Pitch: 66mm (hole distance)
- Includes Sensor: Yes
- Construction: Built to handle increased power loads.
- Quality Assurance: All products are factory tested for 100% reliability.
- Direct Replacement: Designed for straightforward installation as a replacement for original parts.

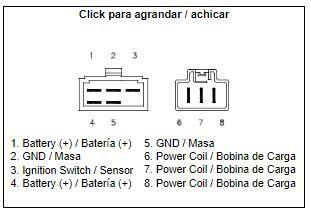

Connection Information:
- Red Wires: Connect to Battery +
- Green Wires: Connect to Battery -
- Black Wires: Connect to Sensor
- Yellow Wires: Connect to Charging Coil
Important Note: Always ensure the ground is connected before spinning the flywheel to prevent damage. Please verify the image and connection plugs before ordering to ensure compatibility. Electrical parts are non-returnable.
Cross Reference Numbers:
- AHA6046
- 20-5309
- 31600-MAT-E01
- SH579C-12
