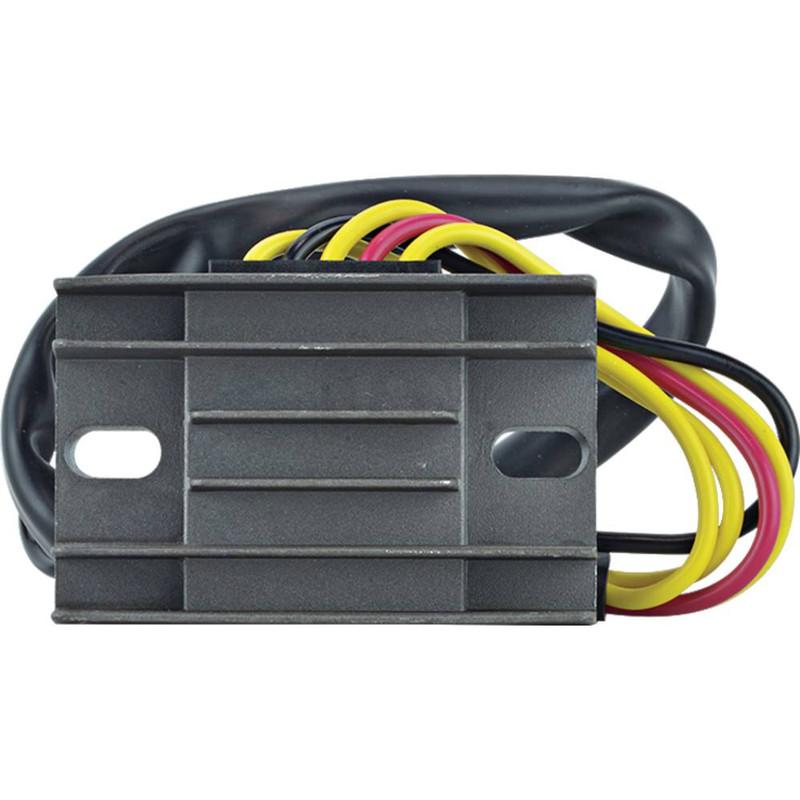

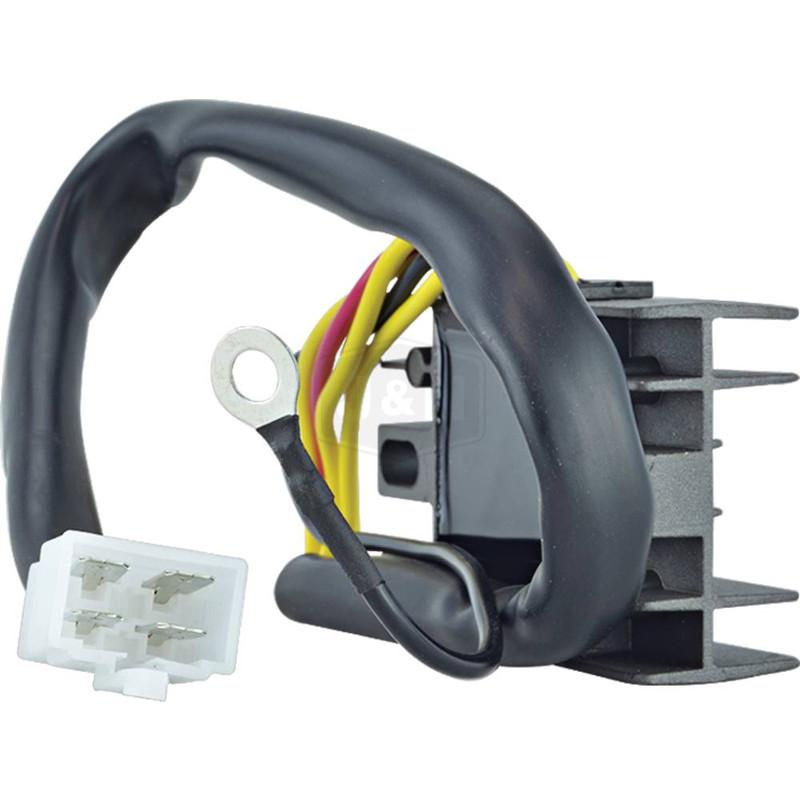

REGULATOR 12V, ARROWHEAD 230-58241, 32800-05300, 32800-05310, 32800-05320, SUZUKI GN125 1982-1983, GN250 1982-1988
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply
12V Regulator. Features include meeting or exceeding OEM quality standards, direct OEM replacement for easy installation, engineered to handle increased power loads, includes brush holder, and is fully factory-tested. Specifications: Voltage 12V, Polarity Negative, Adjustable No, Dimensions 76.3mm (L) x 47.6mm (W) x 25.6mm (T), Plug Connections (3) Yellow (Charging Coil), (1) Red (B+), 17-3/8 inches overall length, Single Wire Black (Ground) with 6.4mm eyelet, 9.5 inches overall length, Mounting Holes (2) Oval, 73.0mm (Outer), 48.4mm (Inner). Cross-Reference OEM Part Numbers: ARROWHEAD 230-58241, Suzuki 32800-05300, 32800-05310, 32800-05320. Manufacturer: Arrowhead Electrical.
- SKU
- 44-0490.AH
- Brand
- Arrowhead Electrical
- Availability
- In Stock (1)
- General Product Group
- Ignition & Electrical Parts
- General Product Type
- Voltage Reulator
- General Size
- 12v
- Variant Id
- 301185
FULL DESCRIPTION
12V Motorcycle Regulator for Suzuki GN125 & GN250
Ensure your motorcycle's electrical system operates at peak performance with this high-quality 12V regulator. Designed as a direct replacement for specific Suzuki models, this regulator provides reliable voltage regulation and optimal charging system function.
Key Features:
- OEM Quality: Meets or exceeds original equipment manufacturer standards for dependable performance.
- Direct Replacement: Engineered for a precise fit, making installation straightforward.
- Durable Construction: Built to withstand the demands of motorcycle use and handle increased power loads.
- Includes Brush Holder: Comes with a brush holder for added convenience and completeness.
- Factory Tested: Each unit is fully factory-tested to guarantee reliability and consistent operation.
Specifications:
- Voltage: 12V
- Polarity: Negative
- Adjustable: No
- Dimensions: 76.3mm (Length) x 47.6mm (Width) x 25.6mm (Thickness)
- Plug Connections: (3) Yellow wires for Charging Coil, (1) Red wire for B+, with an overall length of 17-3/8 inches.
- Single Wire: Black (Ground) with a 6.4mm eyelet, 9.5 inches overall length.
- Mounting Holes: (2) Oval holes, with outer spacing of 73.0mm and inner spacing of 48.4mm.
Cross-Reference OEM Part Numbers:
- ARROWHEAD: 230-58241
- Suzuki: 32800-05300, 32800-05310, 32800-05320
