QUICK DISCONNECT COUPLER 8mm (5/16) FUEL HOSE DOUBLE VALVE SHUT-OFF
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply
8mm (5/16 inch) fuel hose quick disconnect coupler with a double valve shut-off mechanism. This coupler is designed for easy and secure fuel line disconnection, preventing spillage. Each part features a valve that allows fuel flow when connected and automatically shuts off when disconnected. Suitable for fuel supply applications. Features single shut-off valves to prevent fuel flow when disconnected, allowing for quick and safe fuel line disconnection without leaks. Compatible with 1/4 inch and 5/16 inch ID fuel lines. Withstands temperatures from -40°F to 180°F. Equipped with Viton fluoroelastomer o-rings for superior chemical resistance. Not suitable for fuel-injected engines. Specifications: Overall length 82.5mm, bore size 5mm, connection actual diameter 8.8mm (suitable for 8mm pipe). Manufacturer: Factory Image Racing.
- SKU
- 18-400.BK
- Brand
- Factory Image Racing
- Availability
- In Stock (167)
- General Colour C
- Black
- General Product Group
- Fuel & Intake
- General Product Type
- Hose Connectors
- General Size
- 8mm
Show more +1Show less
- Variant Id
- 224953
FULL DESCRIPTION

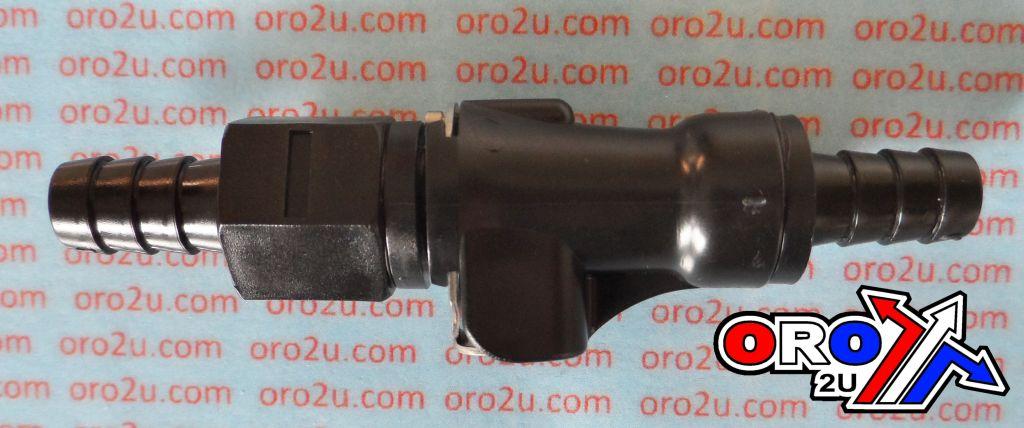

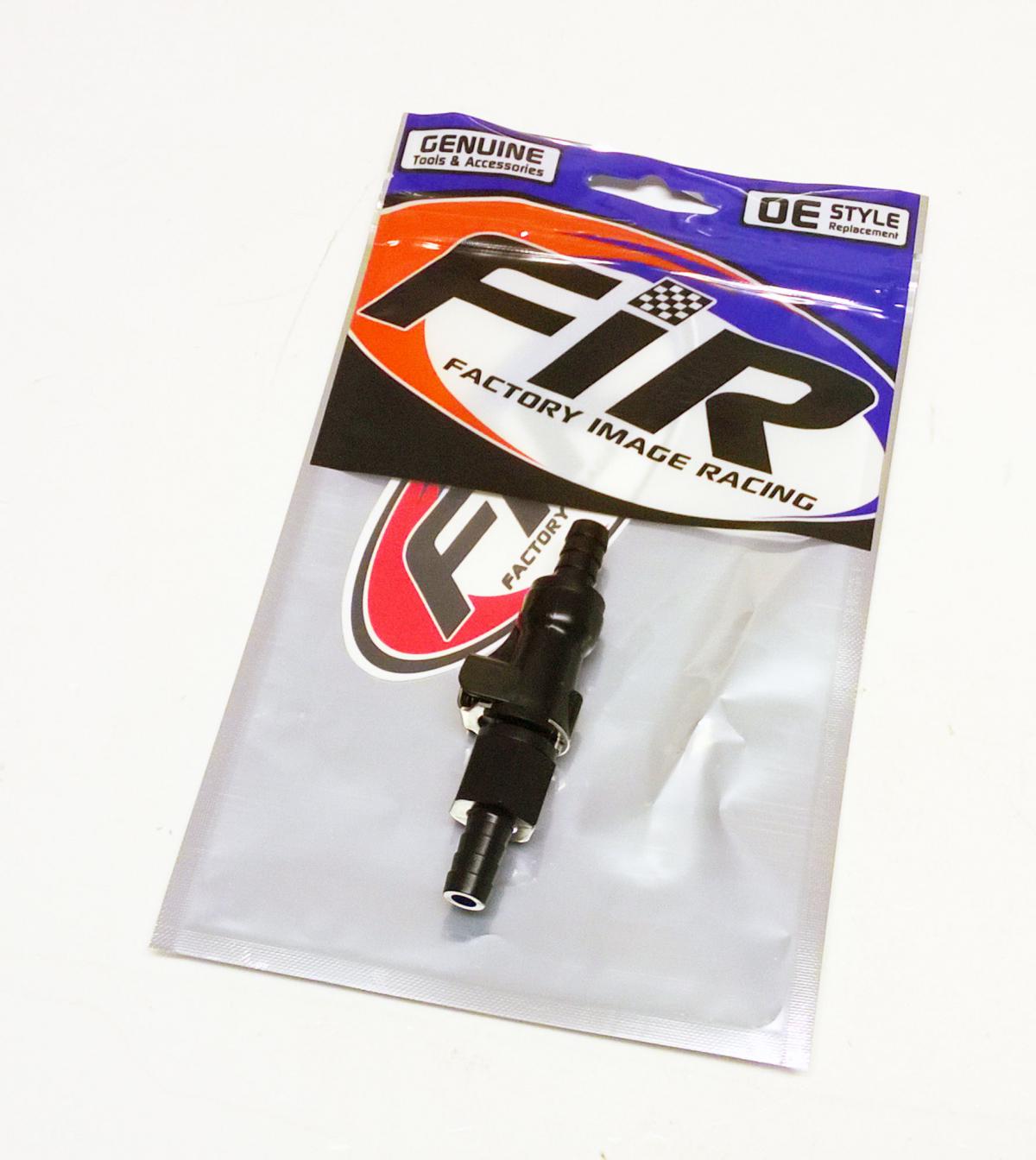

8mm (5/16") Fuel Hose Quick Disconnect Coupler with Double Valve Shut-Off
This quick disconnect coupler is designed for 8mm (5/16 inch) fuel hoses, providing a reliable and spill-free method for disconnecting fuel lines. The integrated double valve mechanism ensures that fuel flow is automatically shut off in both halves of the coupler when it is disconnected, preventing leaks and potential hazards. This makes it ideal for fuel supply applications, such as connecting a fuel tank to a carburetor.
Key Features:
- Features dual shut-off valves that effectively stop fuel flow when the coupler is disconnected.
- Enables rapid and safe disconnection of fuel lines without any fuel spillage.
- Compatible with fuel lines having an inner diameter of 1/4 inch and 5/16 inch.
- Constructed to withstand a wide temperature range, from -40°F to 180°F.
- Equipped with Viton® fluoroelastomer O-rings for exceptional resistance to chemicals.
- Please note: This coupler is not suitable for use with fuel-injected engines.
Specifications:
- Overall Length: 82.5mm
- Bore Size: 5mm
- Actual Connection Diameter: 8.8mm (designed for 8mm pipe)
