PIT BIKE TRIPLE CLAMP SET 45mm 48mm FORKS WITH 22mm HANDLEBAR MOUNT RISERS
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Universal aluminium triple clamp set with integrated bar risers designed for upside-down front forks on pit and dirt bikes. Features secure fork clamping with 45 mm upper and 48 mm lower bores. Accepts standard 22 mm (7/8") handlebars. Constructed from aluminium. Specifications include an upper clamp bore diameter of 45 mm, lower clamp bore diameter of 48 mm, handlebar clamp diameter of 22 mm (7/8"), column (steering stem) length of 203 mm, bolt-to-bolt distance of 156 mm, and tapered roller bearing sizes of 320/22 and 320/23. Manufacturer: Factory Image Racing. Weight: 2680g.
- SKU
- 16-3530
- Brand
- Factory Image Racing
- Availability
- Out of Stock
- General Product Group
- Handlebar & Controls
- General Product Type
- Triple Clamps
- Variant Id
- 297018
FULL DESCRIPTION
Pit Bike Triple Clamp Set with Handlebar Risers
Upgrade your pit bike's front end with this robust universal aluminium triple clamp set. Designed specifically for upside-down (USD) front forks, this set integrates handlebar risers for an optimized riding position. It ensures a secure fit for your forks and handlebars, enhancing both performance and aesthetics.
Key Features
- Complete triple clamp set for seamless installation.
- Integrated handlebar risers for improved ergonomics.
- Engineered for upside-down (USD) front fork applications.
- Durable aluminium construction for longevity.
Specifications
- Upper clamp bore diameter: 45 mm
- Lower clamp bore diameter: 48 mm
- Handlebar clamp diameter: 22 mm (7/8 inch)

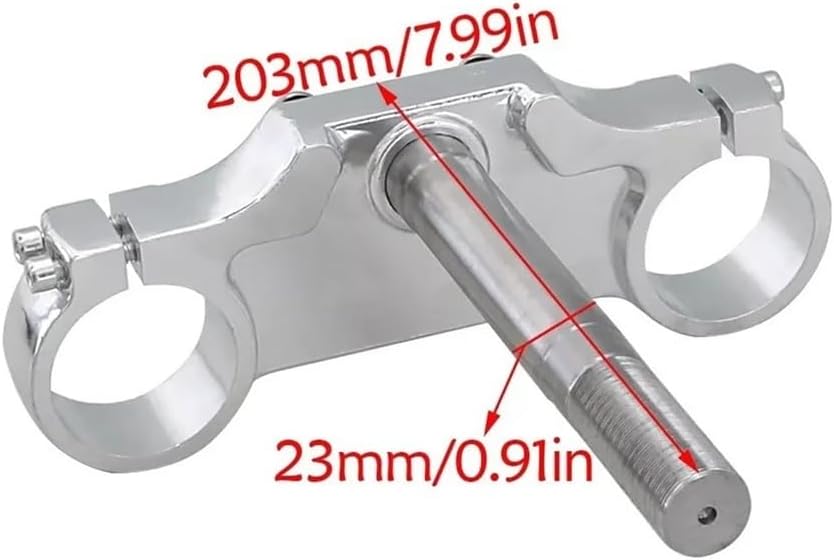

- Steering stem length: 203 mm
- Bolt-to-bolt distance: 156 mm
- Bearing sizes: Tapered roller bearings with sizes 320/22 and 320/23
