PISTON TM250F FI 77.00 10-11, FORGED WOSSNER KIT 8826DC

Wossner Forged Piston Kit for TM 250F FI

Enhance the strength and performance of your TM 250F Fuel Injected motorcycle with this premium forged piston kit from Wossner. Engineered for superior durability and optimal operation, this kit is manufactured in Germany to exacting standards.

The innovative elliptical design of the piston ensures uniform bearing surface even under extreme heat expansion. This advanced design effectively reduces localized pressure, evenly distributes thrust loads, and prevents piston collapse for a more reliable and longer-lasting engine component. It is also designed for efficient heat transfer, moving heat away from the combustion chamber to the cylinder walls for improved performance.

Key Features:

• Forged construction for exceptional strength and durability.
• Optimized heat transfer for improved engine performance and longevity.
• Elliptical piston design to prevent localized pressure and piston collapse.
• Specifically designed for fuel-injected models.

Specifications:

• Bore: 76.98 mm
• Piston Size: 77.02 mm
• Displacement: 250 cm³
• Stroke: 53.70 mm
• Clearance: 0.04 mm
• Dome Volume: -2.10 cm³
• Compression Height: 19.30 mm

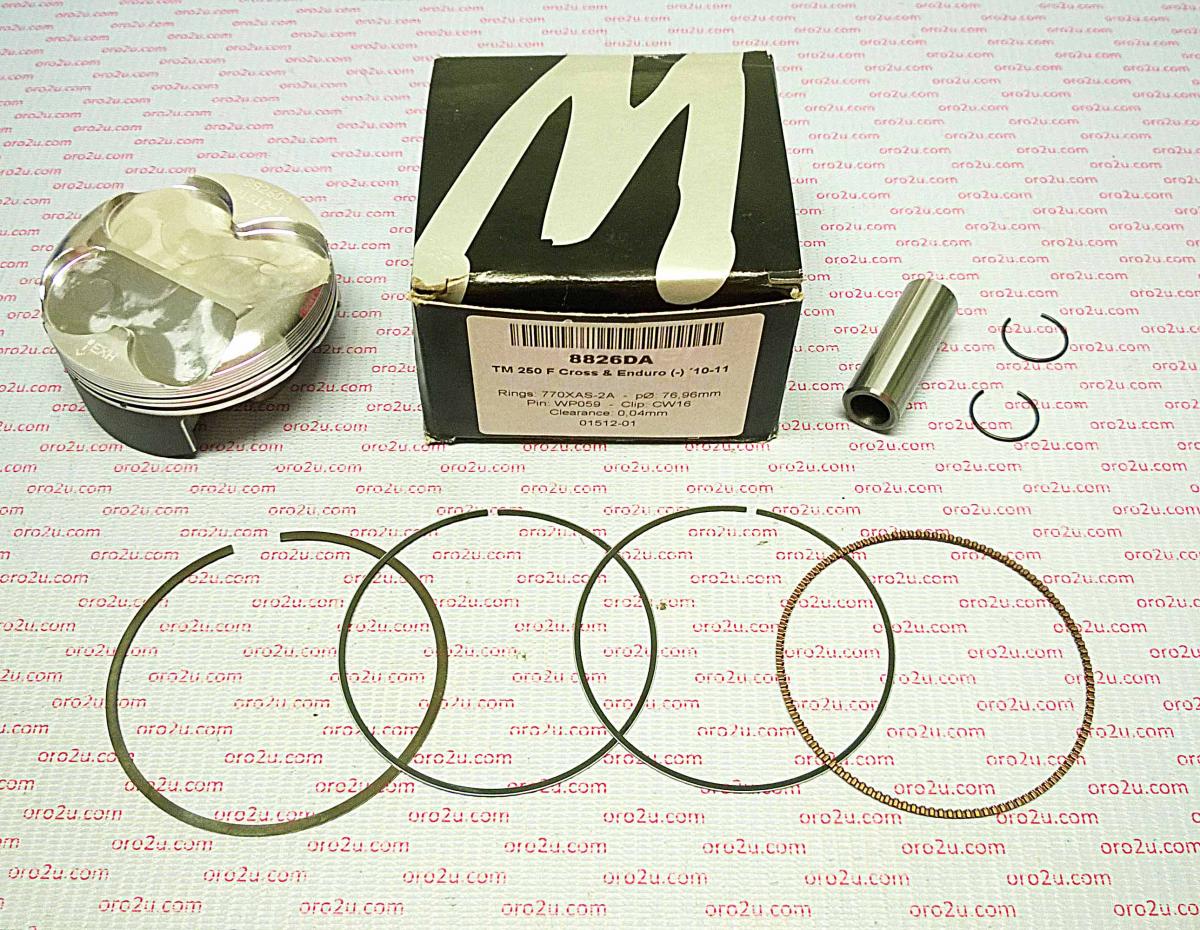

Included Components:

• Lock: CW16
• Pin: WP059
• Ring Set: 770XAS
