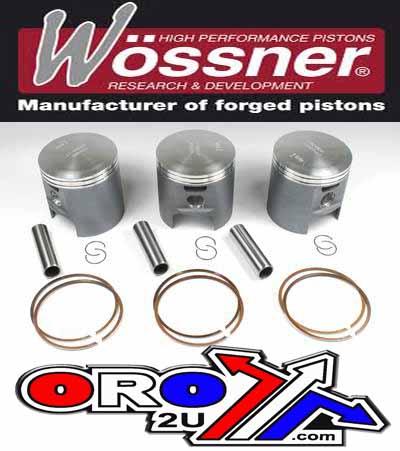

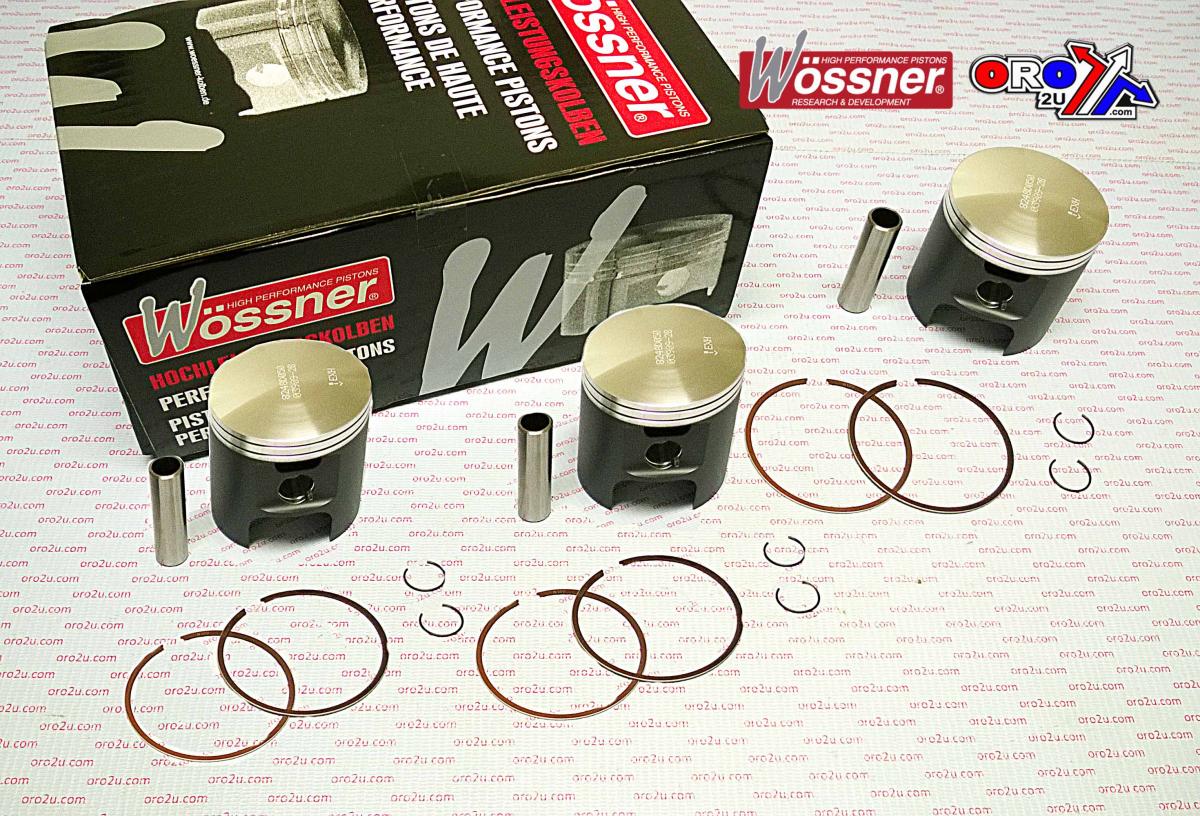

PISTON KIT/3 750 TRIPLE 71.00, WOSSNER K8248DA-3 1972-75

£400.25Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

Wossner K8248DA-3 piston kit for Kawasaki 750cc triple-cylinder two-stroke motorcycles 1972-1975. Standard size, 71.00mm bore. Forged high-performance pistons with PTFE-coated skirts, elliptical design for even heat expansion and load distribution. Polished crown surfaces resist detonation. Made from 4032 T6 alloy for tighter piston-to-bore tolerances. Includes piston pins, clips, and rings. Bore size: 71.00mm. Measured bore: 70.93mm. Display displacement: 747 cm³. Stroke: 63.00mm. Clearance: 0.07mm. Compression height: 32.00mm. Wossner compression ratio: 2-stroke. OEM compression ratio: 2-stroke. Quantity: 3 pistons per kit. Made in Germany. Cross-Reference OEM Part Numbers: Part No. 56-W9868.000.WO, Clip: CW16, Piston Pin: WP027, Ring Set: RSB7100 x 2 per piston.

Specifications
SKU
56-W9868.000.WO
Brand
Wossner
Availability
In Stock (1)

Fitments (12)

MakeModelYear
KAWASAKI750 Mach IV (Triple Cylinder)1972
KAWASAKI750 Mach IV (Triple Cylinder)1973
KAWASAKI750 Mach IV (Triple Cylinder)1974
KAWASAKI750 Mach IV (Triple Cylinder)1975
KAWASAKIH2 7501972
KAWASAKIH2 7501973
KAWASAKIH2 7501974
KAWASAKIH2 7501975
KAWASAKIMACH IV 7501972
KAWASAKIMACH IV 7501973
KAWASAKIMACH IV 7501974
KAWASAKIMACH IV 7501975
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
71.00mm
Variant Id
258998
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Wossner 71.00mm Standard Size Piston Kit for 750cc Triple Motorcycles

Enhance the performance and longevity of your vintage 750cc triple-cylinder motorcycle with the Wossner K8248DA-3 Piston Kit. Engineered and manufactured in Germany, this high-performance kit features three forged pistons designed for optimal heat transfer, structural integrity, and reliable operation.

Key Features:

  • Forged High-Performance Pistons: Constructed from robust 4032 T6 alloy for superior strength and durability.
  • PTFE Coated Skirts: Reduces friction for smoother operation and improved efficiency.
  • Elliptical Design: Ensures even heat expansion and balanced load distribution across the piston.
  • Polished Crown Surfaces: Helps to resist detonation, promoting a more stable combustion.
  • Precision Tolerances: The 4032 T6 alloy allows for tighter piston-to-bore tolerances, leading to reduced noise and improved performance.
  • Complete Kit: Includes three pistons, piston pins, clips, and all necessary rings for a comprehensive installation.

Specifications:

  • Bore Size: 71.00mm (Standard)
  • Measured Bore: 70.93mm
  • Displayed Displacement: 747 cm³
  • Stroke: 63.00mm
  • Clearance: 0.07mm
  • Compression Height: 32.00mm
  • Piston Quantity: 3 per kit
  • Manufacturing Origin: Germany

Included Components:

  • Piston Pins
  • Piston Clips
  • Ring Sets (RSB7100 x 2 per piston)
