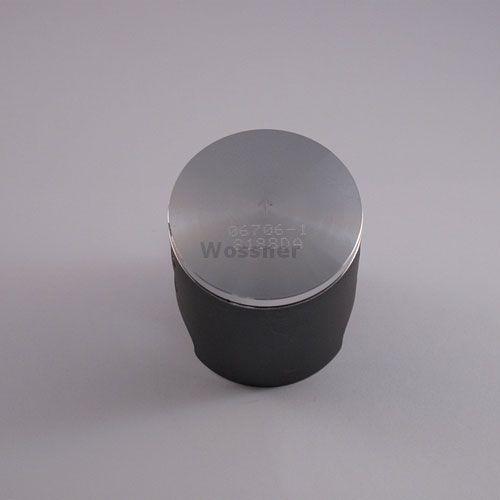

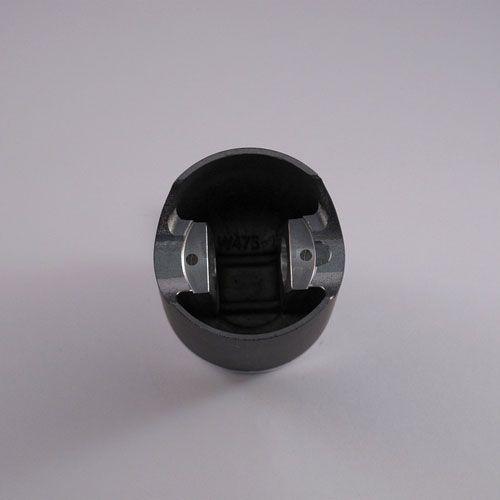

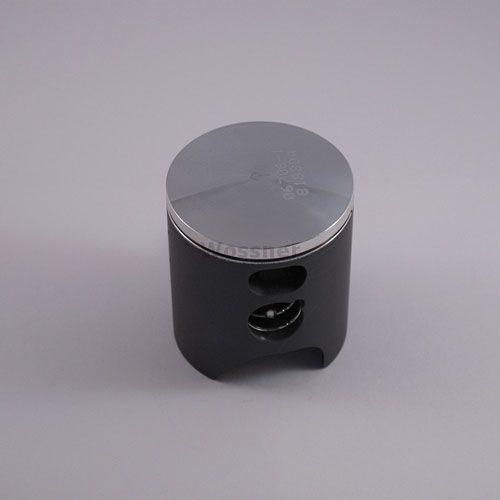

PISTON KIT YZ85 YZ80 49.00, WOSSNER 8188D200 YAMAHA MX
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner Piston Kit 8188D200 is a forged performance piston featuring a 49.00mm bore (+2.00 US Bore). This German-manufactured piston offers excellent thermal management and mechanical reliability. Its elliptical profile provides a consistent and uniform bearing surface during thermal expansion, minimising high-stress zones and reducing the risk of piston collapse during intense use. Forged construction delivers high durability and strength under extreme load. The elliptical design reduces localised pressure and distributes thrust evenly. Features enhanced heat dissipation from the combustion chamber to the cylinder walls and precision engineering and manufacturing in Germany. Specifications include a 49.00 mm bore, 48.95 mm actual piston diameter, 47.80 mm stroke, 82 cm³ displacement, 0.05 mm clearance, and 26.00 mm compression height. Compression ratio is 2-stroke for both Wossner and OEM. Cross-reference OEM part numbers include Wossner Piston: 8188D200, Lock: CW14, Pin: WP058, Ring Set: RSB4900, and Rod: P2008. Internal Part No: 56-W646+200.WO. Weight is 140g.
- SKU
- 56-W646+200.WO
- Brand
- Wossner
- Availability
- In Stock (2)
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 49.00mm
- Variant Id
- 257308
FULL DESCRIPTION
Wossner Performance Forged Piston Kit for Yamaha YZ80
Enhance the performance and reliability of your Yamaha YZ80 with this premium forged piston kit from Wossner. Engineered in Germany, this piston is designed for demanding off-road and racing applications. The advanced forged construction provides exceptional durability and strength, ensuring it can withstand the extreme loads of high-performance engines. Its innovative elliptical profile is meticulously crafted to maintain a consistent and uniform bearing surface throughout thermal expansion, effectively minimizing high-stress areas and significantly reducing the risk of piston collapse, even during intense use. This translates to improved engine longevity and consistent power delivery.
Key Features:
- Forged construction for superior durability and strength under extreme loads.
- Elliptical piston design to reduce localized pressure and evenly distribute thrust.
- Optimized for enhanced heat dissipation from the combustion chamber to the cylinder walls.
- Precision engineered and manufactured to exacting standards in Germany.
Specifications:
- Bore Size: 49.00 mm
- Actual Piston Diameter: 48.95 mm
- Stroke: 47.80 mm
- Displacement: 82 cm³
- Piston Clearance: 0.05 mm
- Compression Height: 26.00 mm
- Engine Type: 2-stroke

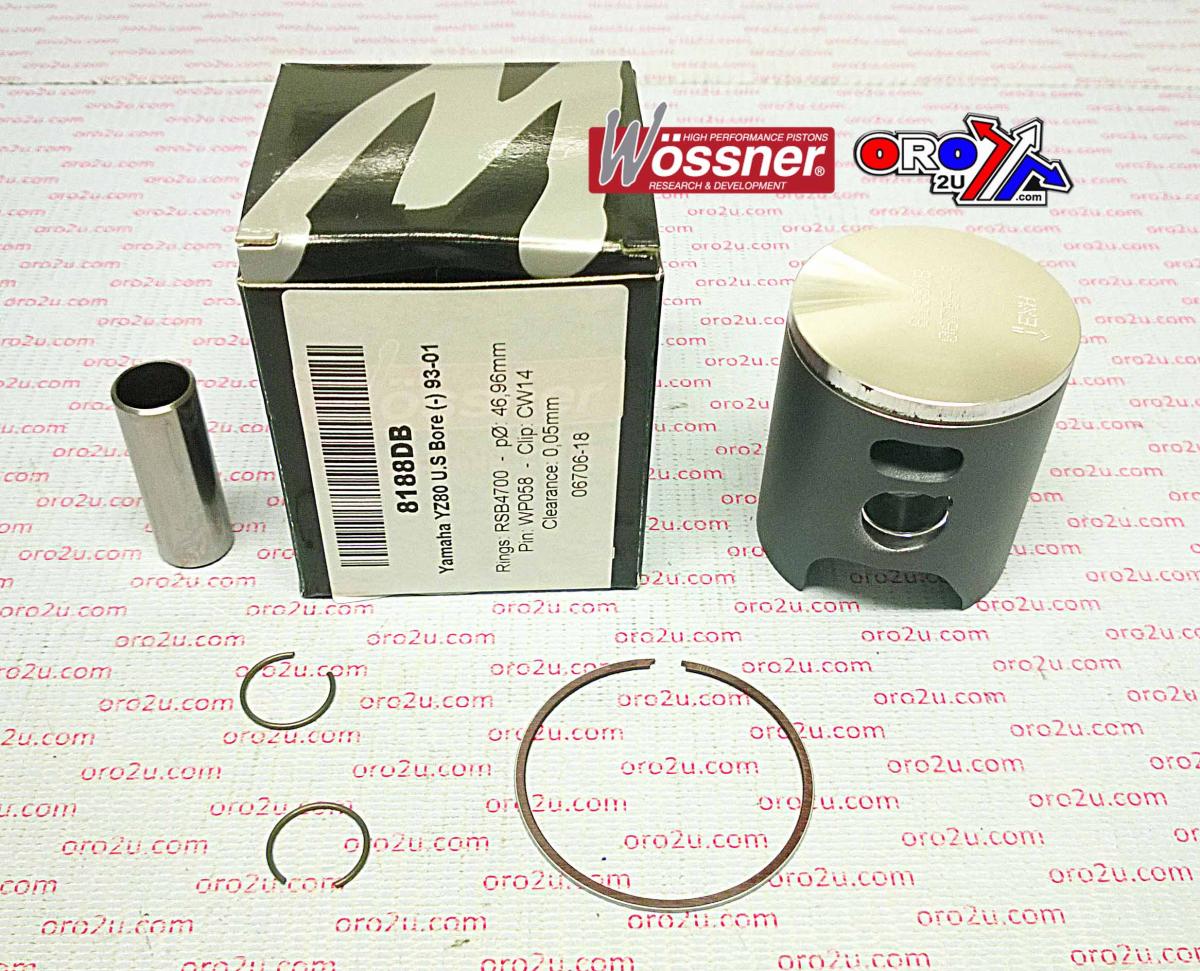

Included Components:
- Wossner Piston: 8188D200
- Lock Ring: CW14
- Piston Pin: WP058
- Ring Set: RSB4900
