PISTON KIT XR200 ATC200 80-02, WOSSNER 8813D050 66.00

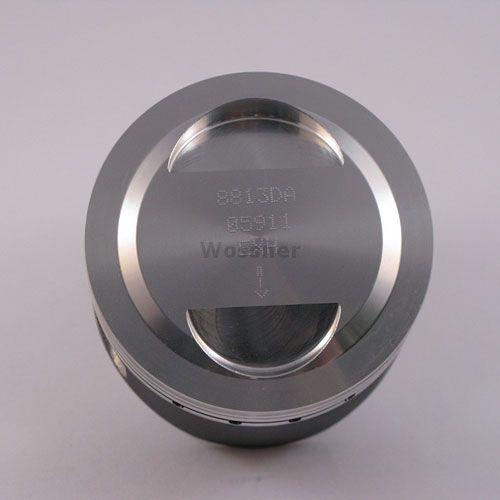

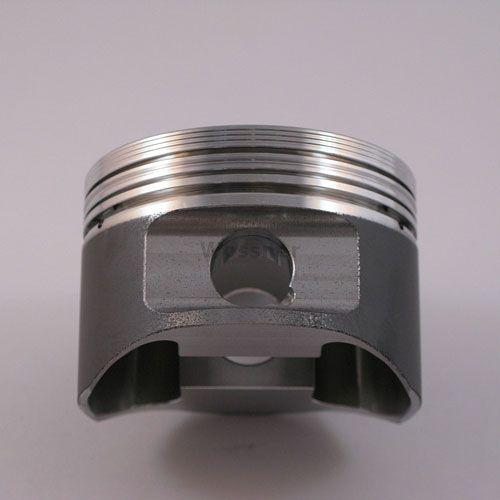

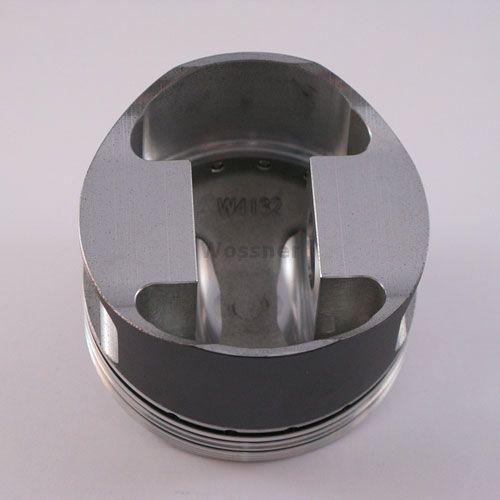

Wossner Forged Piston Kit for Honda XR200 and ATC200

Enhance the performance and durability of your motorcycle or ATV with this Wossner forged piston kit. Precision manufactured in Germany, this piston is engineered for superior strength and efficient heat transfer, ensuring reliable operation under demanding conditions.

The innovative elliptical design distributes load evenly across the bearing surface. This minimizes localized pressure points, significantly reducing wear and preventing potential piston collapse. This kit is designed for 4-stroke engines.

Key Features:

• Forged Construction: Provides exceptional strength and durability for extended engine life.
• Optimized Heat Transfer: Promotes efficient cooling, leading to improved engine performance and reliability.
• Elliptical Design: Ensures uniform load distribution and reduces wear for a more consistent and efficient piston function.
• High-Quality Manufacturing: Made in Germany to exacting standards.

Specifications:

• Bore Size: 66.00 mm
• Actual Bore: 65.96 mm
• Stroke: 57.80 mm
• Clearance: 0.04 mm
• Compression Height: 25.50 mm
• Dome Volume: +1.40 cm³
• Compression Ratio: 10.00:1 (OEM)
• Displacement: 195 cm³

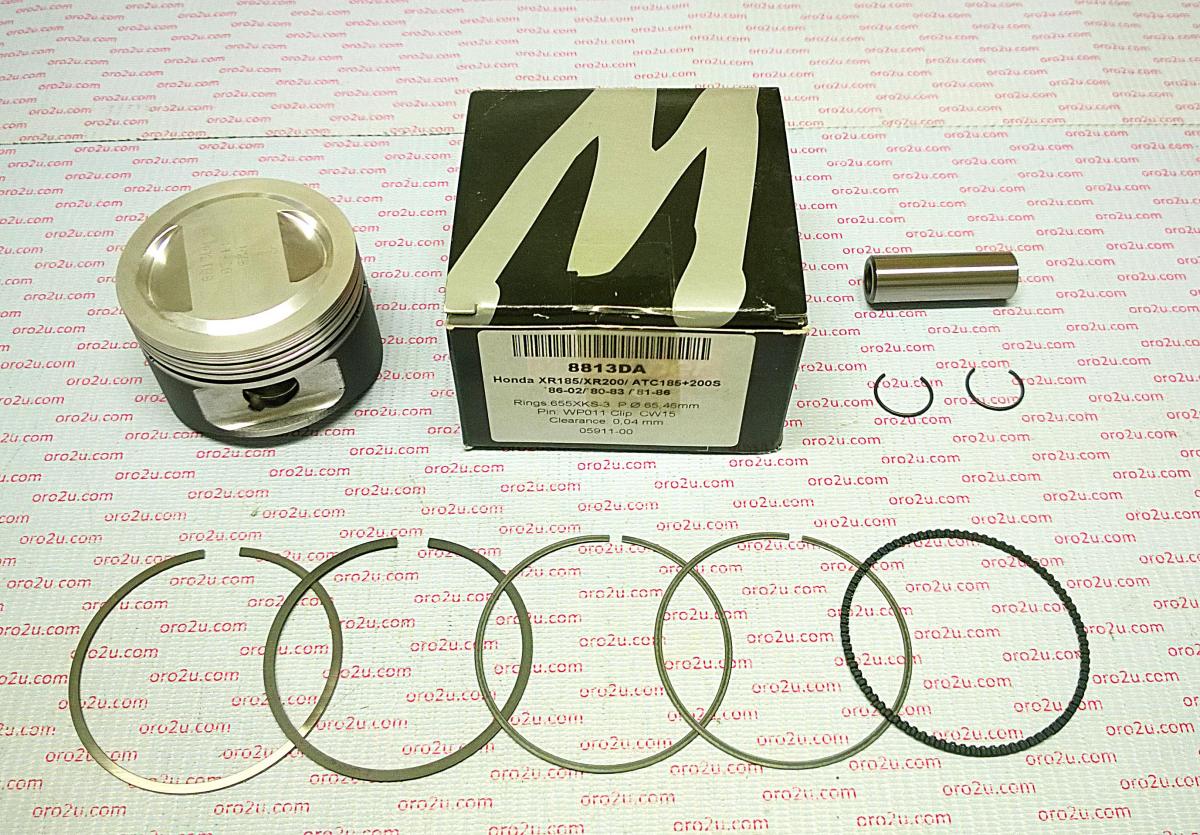

Component Part Numbers:

• Wossner Piston Part Number: 8813D050
• Lock Ring Part Number: CW15
• Wrist Pin Part Number: WP011
• Ring Set Part Number: 660XKS
