PISTON KIT VERTEX 66.4 B YAMAHA YZ/WR 250 99-22 PRO RACE, VERTEX 22645B SINGLE RING
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

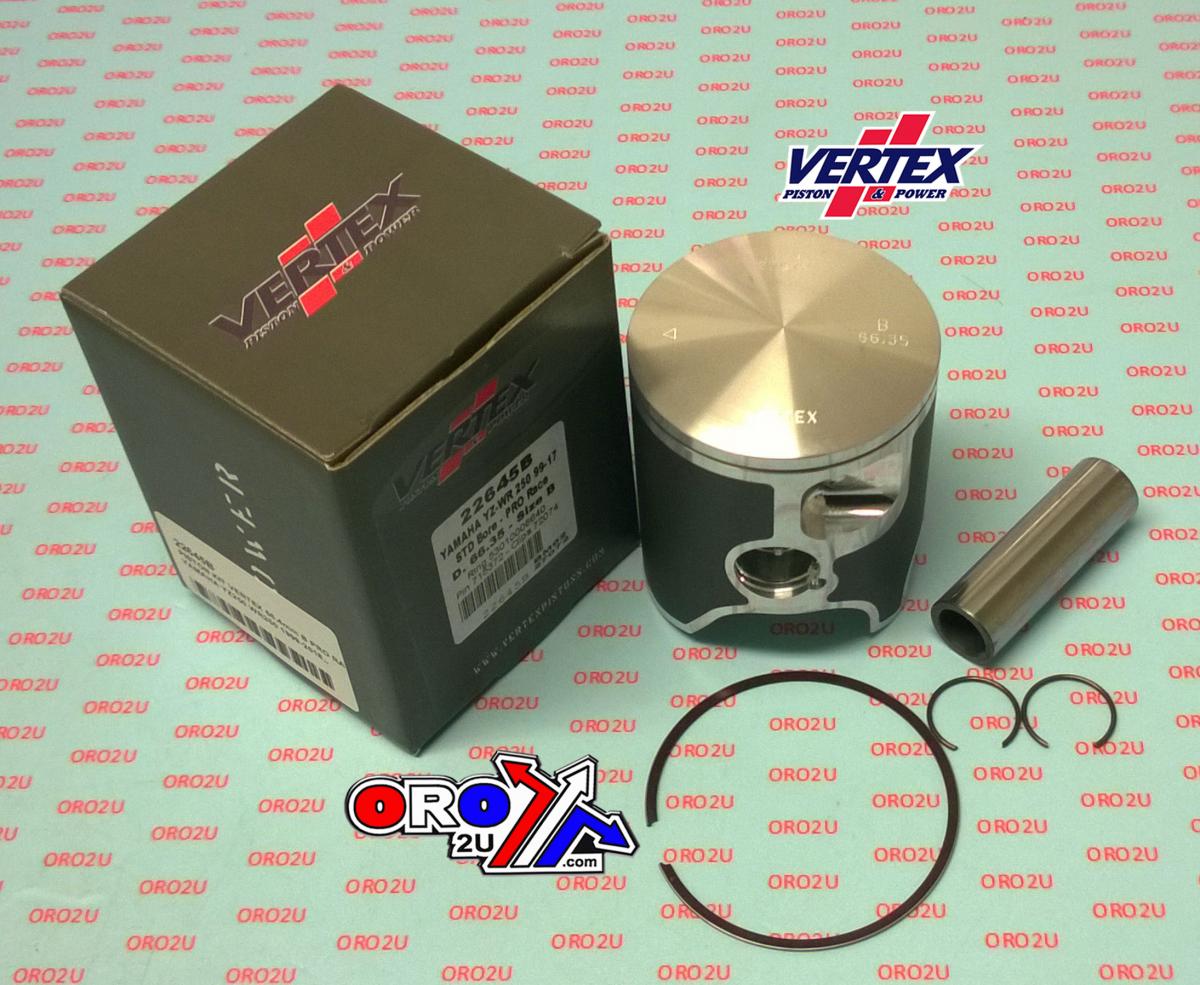

Vertex UK Piston Kit 22645B. Standard pistons and components are OEM replacements. Kits include piston, rings, wrist pin and circlips. All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle. Replacement rings are sold individually. Made in Italy. Fitted in many OEM bikes as STD. Specification: Bore size 66.40mm [B 66.36mm]. Replacement Parts: Rings 53010006640, Pin 715372, Clips 72074. Cross reference numbers ONLY. Piston (Std) UR RED 1P8-11631-00-A0, Piston (Std) UR ORANGE 1P8-11631-00-B0, Piston (Std) UR PURPLE 1P8-11631-00-D0, Piston (Std) UR GREEN 1P8-11631-00-C0, Piston Ring Set (Std) 5CU-11603-10-00, Pin, Piston 5UP-11633-00-00, Circlip 93450-19052-00.
- SKU
- 22645B
- Brand
- Vertex
- Availability
- In Stock (1)
Fitments (44)
| Make | Model | Year |
|---|---|---|
| YAMAHA | WR 250 | 1999 |
| YAMAHA | WR 250 | 2000 |
| YAMAHA | WR 250 | 2001 |
| YAMAHA | WR 250 | 2002 |
| YAMAHA | WR 250 | 2003 |
| YAMAHA | WR 250 | 2004 |
| YAMAHA | WR 250 | 2005 |
| YAMAHA | WR 250 | 2006 |
| YAMAHA | WR 250 | 2007 |
| YAMAHA | WR 250 | 2008 |
| YAMAHA | WR 250 | 2009 |
| YAMAHA | WR 250 | 2010 |
| YAMAHA | WR 250 | 2011 |
| YAMAHA | WR 250 | 2012 |
| YAMAHA | WR 250 | 2013 |
| YAMAHA | WR 250 | 2014 |
| YAMAHA | WR 250 | 2015 |
| YAMAHA | WR 250 | 2016 |
| YAMAHA | WR 250 | 2017 |
| YAMAHA | WR 250 | 2018 |
| YAMAHA | WR 250 | 2019 |
| YAMAHA | WR 250 | 2020 |
| YAMAHA | YZ 250 | 1999 |
| YAMAHA | YZ 250 | 2000 |
| YAMAHA | YZ 250 | 2001 |
| YAMAHA | YZ 250 | 2002 |
| YAMAHA | YZ 250 | 2003 |
| YAMAHA | YZ 250 | 2004 |
| YAMAHA | YZ 250 | 2005 |
| YAMAHA | YZ 250 | 2006 |
| YAMAHA | YZ 250 | 2007 |
| YAMAHA | YZ 250 | 2008 |
| YAMAHA | YZ 250 | 2009 |
| YAMAHA | YZ 250 | 2010 |
| YAMAHA | YZ 250 | 2011 |
| YAMAHA | YZ 250 | 2012 |
| YAMAHA | YZ 250 | 2013 |
| YAMAHA | YZ 250 | 2014 |
| YAMAHA | YZ 250 | 2015 |
| YAMAHA | YZ 250 | 2016 |
| YAMAHA | YZ 250 | 2017 |
| YAMAHA | YZ 250 | 2018 |
| YAMAHA | YZ 250 | 2019 |
| YAMAHA | YZ 250 | 2020 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 66.4mm
- Variant Id
- 282667
FULL DESCRIPTION
Vertex Single Ring Piston Kit - Pro Race
Enhance your motorcycle's performance with the Vertex Single Ring Piston Kit, designed for Pro Race applications. This kit is an OEM replacement, ensuring a precise fit and reliable operation.
Key Features:
- Complete kit includes piston, rings, wrist pin, and circlips.
- Pistons undergo a T-5 or T-6 hardening and tempering cycle for increased durability.
- Made in Italy to high-quality standards.
- Often fitted as standard equipment on OEM motorcycles.
- Bore Size: 66.40mm (specified as 'B' with a 66.36mm measurement).
Replacement Parts Available Separately:
- Rings: 53010006640
- Pin: 715372
- Clips: 72074
