PISTON KIT VERTEX 100.0 C HC KTM SX/XC 505 08-11, VERTEX 23417C HC ATV COMPR 12,5:1
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply

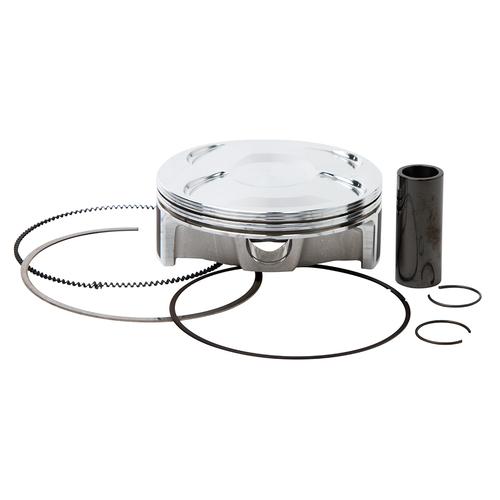

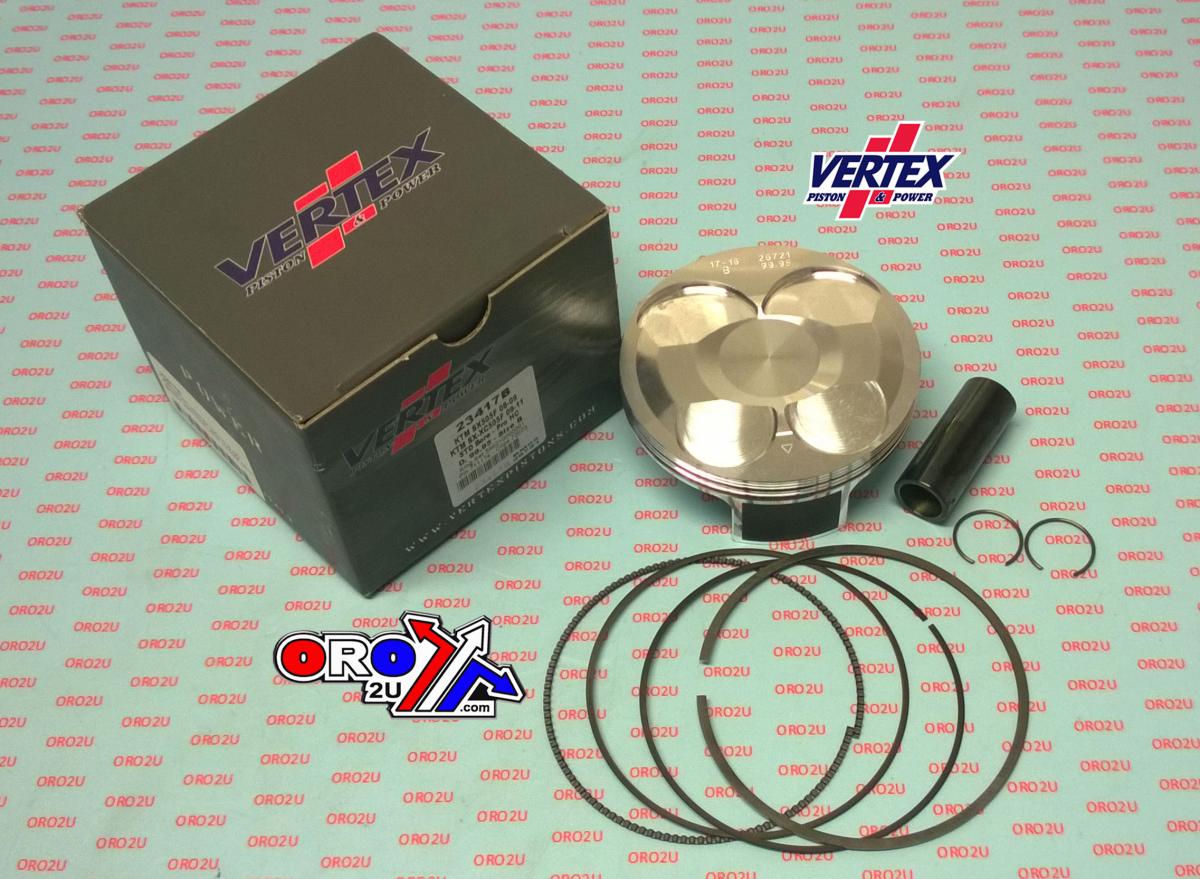

Vertex UK Piston Kit 23417C. High compression 12.5:1. Bore size 100.00mm (99.96mm). Features standard pistons and components as OEM replacements. Kits include piston, rings, wrist pin, and circlips. All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle. Replacement rings are sold individually. Made in Italy. Fitted in many OEM bikes as standard. Replacement parts include rings (590210000001 SET), pin (711174), and clips (72073). Cross reference numbers include Piston Pin 77630033000, Circlip 77630074000, Piston D=100 07 77630007000 I 77630007200 I, Piston D=100 07 77630007000 II 77630007300 II, Oil Scraper Ring 77630032000 77630032100, and Rectangular Ring D=100 07 77630030000.
- SKU
- 23417C
- Brand
- Vertex
- Availability
- In Stock (1)
Fitments (2)
| Make | Model | Year |
|---|---|---|
| KTM | 505 SX-F | 2008 |
| KTM | 505 SX-F | 2009 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 100mm
- Variant Id
- 282242
FULL DESCRIPTION
Vertex Piston Kit 23417C HC
This high-compression Vertex piston kit is designed for performance enthusiasts seeking to enhance their motorcycle or ATV's power output. Engineered with precision and quality in mind, this kit is a direct replacement for OEM specifications, ensuring a proper fit and reliable operation.
Key Features:
- High Compression Ratio: Features a 12.5:1 compression ratio for increased power and performance.
- OEM Replacement: Designed to meet or exceed original equipment manufacturer standards.
- Complete Kit: Includes piston, rings, wrist pin, and circlips for a comprehensive replacement solution.
- Heat Treated: All pistons undergo a T-5 or T-6 hardening and tempering cycle for enhanced durability and longevity.
- Made in Italy: Manufactured in Italy, a region known for its high-quality engine component production.
- Bore Size: Precisely machined to a 100.00mm bore size (actual dimension 99.96mm).
Specifications:
- Piston Bore Size: 100.00mm
- Compression Ratio: 12.5:1
Replacement Parts Included:
- Rings Set
- Wrist Pin
- Circlips
