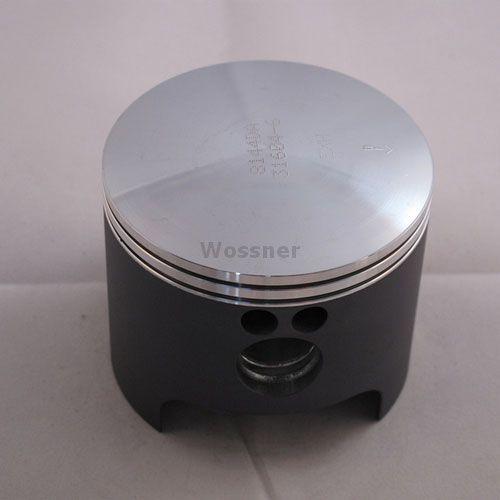

PISTON KIT TXT280 GASGAS 76mm, FORGED WOSSNER 8144DB
Wossner forged piston kit with a 76.01mm bore. Engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany for durability and precision. Features a forged piston for superior strength and design, optimized heat transfer to cylinder walls, and an elliptical design for uniform bearing surface and even thrust load distribution. Specifications include: Bore: 76.01mm (+0.01mm oversize), Standard size piston (PN# 8144DB), Lock Part Number: CA18, Pin Part Number: WP033, Ring Set Part Number: RSC7600 x2, Displacement: 272 cm³, Stroke: 60.00mm, Clearance: 0.04mm, Wossner Compression Ratio: 2-stroke, OEM Compression Ratio: 2-stroke, Compression Height: 28.75mm.
- SKU
- 56-W169.B.WO
- Brand
- Wossner
- Availability
- Out of Stock
FULL DESCRIPTION
Wossner Forged Piston Kit for Gas Gas TXT/MT 280 (76.01mm)
Enhance your Gas Gas TXT or MT 280 with this high-performance Wossner forged piston kit. Engineered with precision in Germany, this kit is designed for superior strength, durability, and optimal engine performance. The forged construction provides exceptional resilience, while the advanced design promotes efficient heat transfer and uniform bearing surface distribution under heat expansion. This reduces localized pressure and prevents piston collapse, ensuring consistent operation and longevity.
Key Features:
- Forged Piston: Offers superior strength and durability compared to cast pistons.
- Optimized Heat Transfer: Designed to efficiently transfer heat to the cylinder walls, aiding in temperature regulation.
- Elliptical Design: Features an elliptical shape for a uniform bearing surface, distributing thrust loads evenly and minimizing wear.
- Reduced Pressure and Collapse: Engineered to reduce localized pressure and prevent piston collapse under heat expansion.
- Precision Manufactured: Made in Germany to exacting standards for reliability and performance.
Specifications:
- Bore Size: 76.01mm (+0.01mm oversize)
- Standard Size Piston Part Number: 8144DB
- Lock Part Number: CA18
- Pin Part Number: WP033
- Ring Set Part Number: RSC7600 (quantity of 2)
- Engine Displacement: 272 cm³
- Stroke: 60.00mm
- Piston Clearance: 0.04mm
- Compression Height: 28.75mm
- Compression Ratio (Wossner): 2-stroke
- Compression Ratio (OEM): 2-stroke
