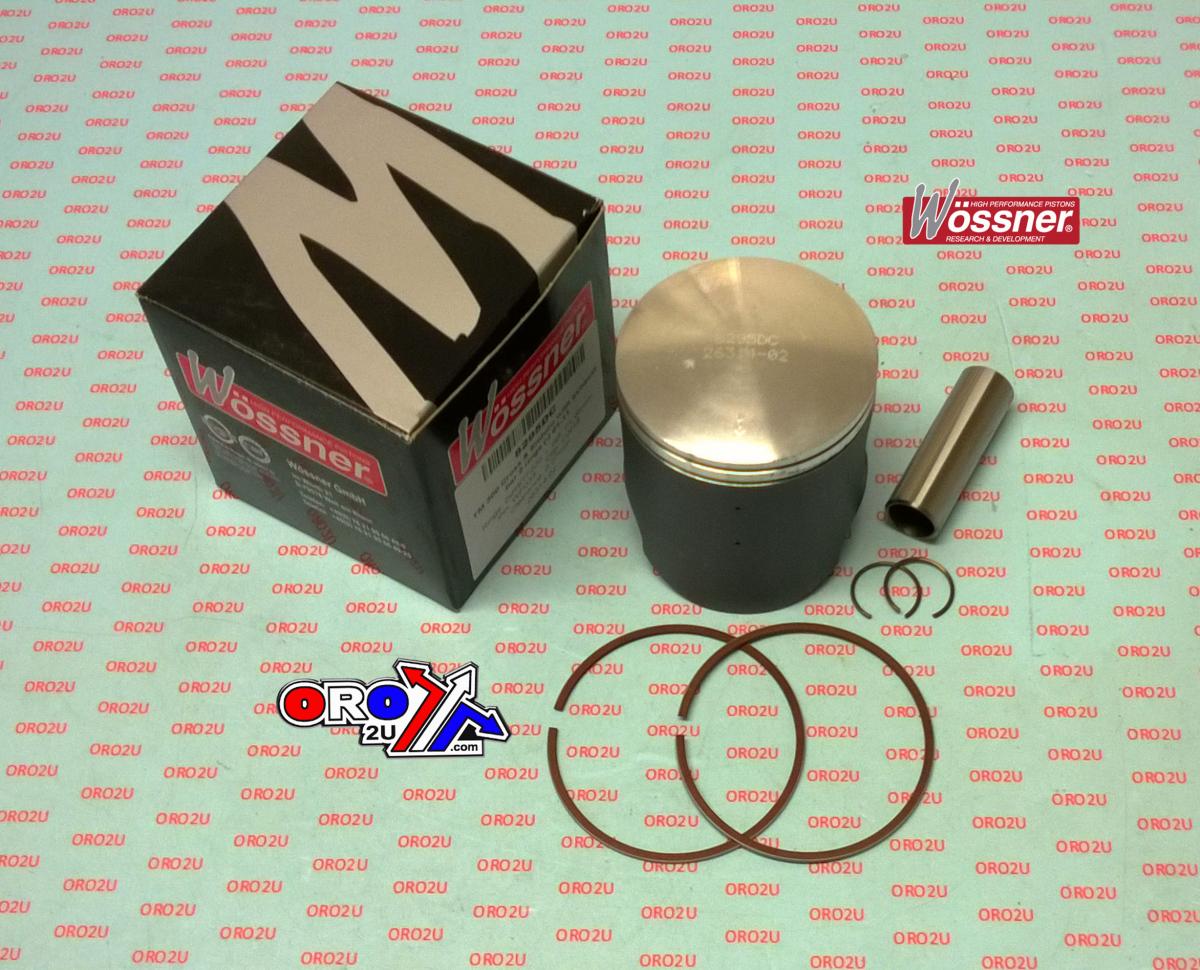

PISTON KIT TM 300 01-06 72.00, FORGED WOSSNER 8295DB
Wossner 8295DB forged piston kit with a 72.01mm bore and 71.94mm diameter, offering +0.01mm oversize fitment. Features two-ring design for two-stroke engines. Forged construction for durability and strength, engineered for effective heat transfer, and designed with an elliptical shape for uniform bearing surface under heat expansion. Minimizes localized pressure, evenly distributes thrust loads, and prevents piston collapse under stress. Manufactured in Germany. Specifications include: Bore 72.01mm, Diameter 71.94mm, Stroke 73.70mm, Clearance 0.07mm, Compression Ratio (Wossner/OEM) 2-stroke, Compression Height 38.00mm, Ring Type Two Ring, Clips P/N CW18, Pin P/N WP033, Ring Set P/N RST7200 x 2. Cross-reference OEM Part Numbers: 56-W9920.00B.WO, Wossner Piston 8295DB. Weight 358g.
- SKU
- 56-W9920.00B.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit for TM 300 (2001-2006)
Enhance the performance and durability of your TM 300 MX or Enduro motorcycle with this high-quality forged piston kit from Wossner. Engineered for two-stroke engines, this piston features advanced construction for superior strength, heat management, and longevity.
Key Features:
- Forged Construction: Provides exceptional durability and strength, crucial for demanding off-road conditions.
- Optimized Heat Management: Designed for effective heat transfer from the combustion chamber to the cylinder walls, preventing overheating.
- Elliptical Shape: Ensures a uniform bearing surface that adapts to heat expansion, maintaining consistent performance.
- Load Distribution: Minimizes localized pressure and evenly distributes thrust loads for reduced wear and extended engine life.
- Prevents Piston Collapse: Built to withstand high stresses without collapsing under pressure.
- German Manufacturing: Precision crafted in Germany for guaranteed quality and reliability.
Specifications:
- Bore: 72.01mm
- Diameter: 71.94mm
- Stroke: 73.70 mm
- Clearance: 0.07 mm
- Compression Ratio (Wossner): 2-stroke
- Compression Ratio (OEM): 2-stroke
- Compression Height: 38.00 mm
- Ring Type: Two Ring
- Clips P/N: CW18
- Pin P/N: WP033
- Ring Set P/N: RST7200 x 2
This Wossner piston kit is designed as a +0.01mm oversize replacement, ensuring a precise fit for optimal engine function.
