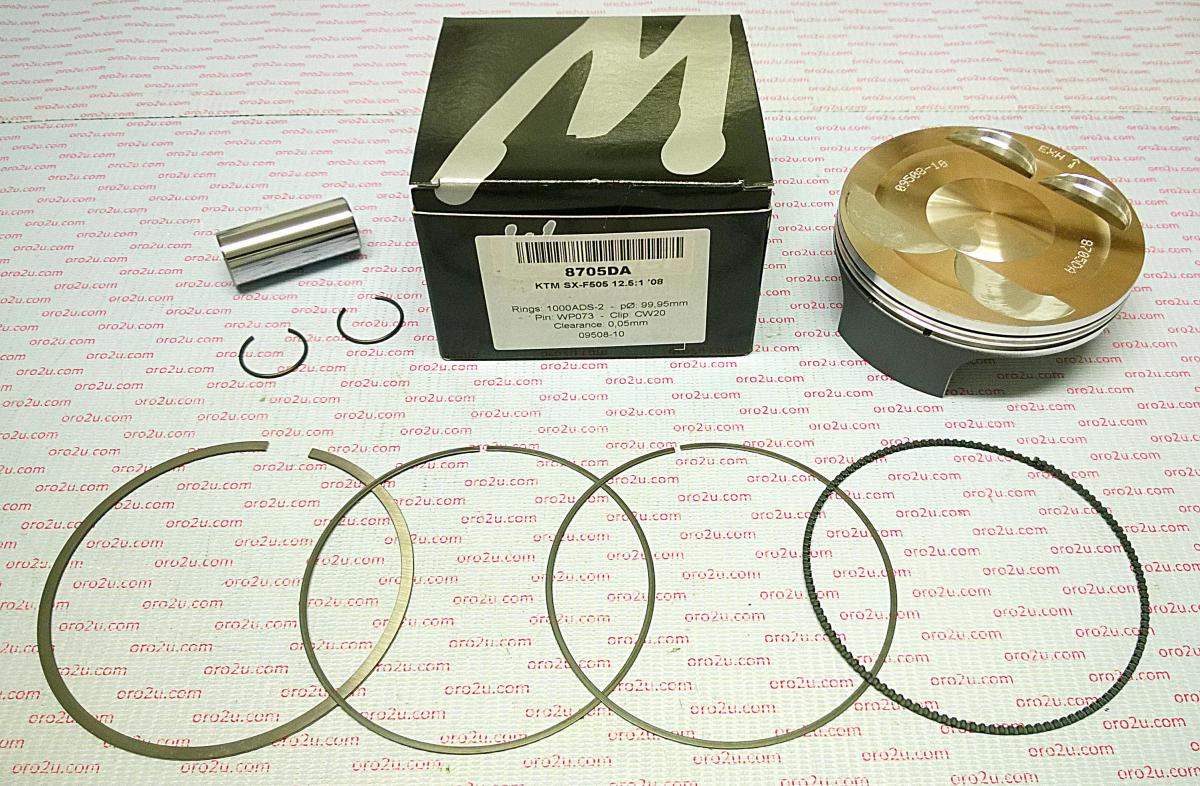

PISTON KIT SX-F505 KTM 100mm, FORGED WOSSNER 8705DA 776300073000
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply
Wossner forged piston kit with a 100.00mm bore and 99.95mm diameter. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Features: forged construction for superior strength, optimized heat transfer for efficient combustion, elliptical design for uniform load distribution, manufactured in Germany. Specifications: bore 100.00mm, diameter 99.95mm, display 477 cm³, stroke 68.80mm, clearance 0.05mm, Wossner compression ratio OEM, OEM compression ratio 12.50:1, dome volume -3.00 cm³, compression height 21.40mm. Cross-reference OEM part numbers: Wossner Piston KTM SX-F505 (PN# 8705DA), Lock P/N: CW20, Pin P/N: WP038, Ring Set P/N: 1000ADS-2, OEM References: 776300073000, 4947M01000.
- SKU
- 56-W245.A
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (5)
| Make | Model | Year |
|---|---|---|
| KTM | 505 SX | 2009 |
| KTM | 505 SX | 2010 |
| KTM | 505 SX-F | 2007 |
| KTM | 505 SX-F | 2008 |
| KTM | 505 SX-F | 2009 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 100mm
- Variant Id
- 255183
FULL DESCRIPTION
Wossner Forged Piston Kit for KTM SX-F505
This Wossner forged piston kit is engineered for optimal performance and durability for your KTM SX-F505. Manufactured in Germany, this high-quality piston features a 100.00mm bore and a 99.95mm diameter, designed to deliver superior strength and efficiency. Its advanced elliptical design ensures a uniform bearing surface even under extreme heat expansion, effectively reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.
Key Features:
- Forged construction provides exceptional strength and resilience.
- Engineered for optimized heat transfer to cylinder walls, promoting efficient combustion.
- Elliptical design facilitates uniform load distribution, enhancing durability.
- Precision manufacturing standards from Germany ensure premium quality.
Specifications:
- Bore: 100.00mm
- Diameter: 99.95mm
- Stroke: 68.80mm
- Clearance: 0.05mm
- Compression Height: 21.40mm
- Dome Volume: -3.00 cm³
- OEM Compression Ratio: 12.50:1
