PISTON KIT SET/4 HAYABUSA 83, WOSSNER K8733D200-4 SUZUKI, 2008-2016 DISPL. 1406cc
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply

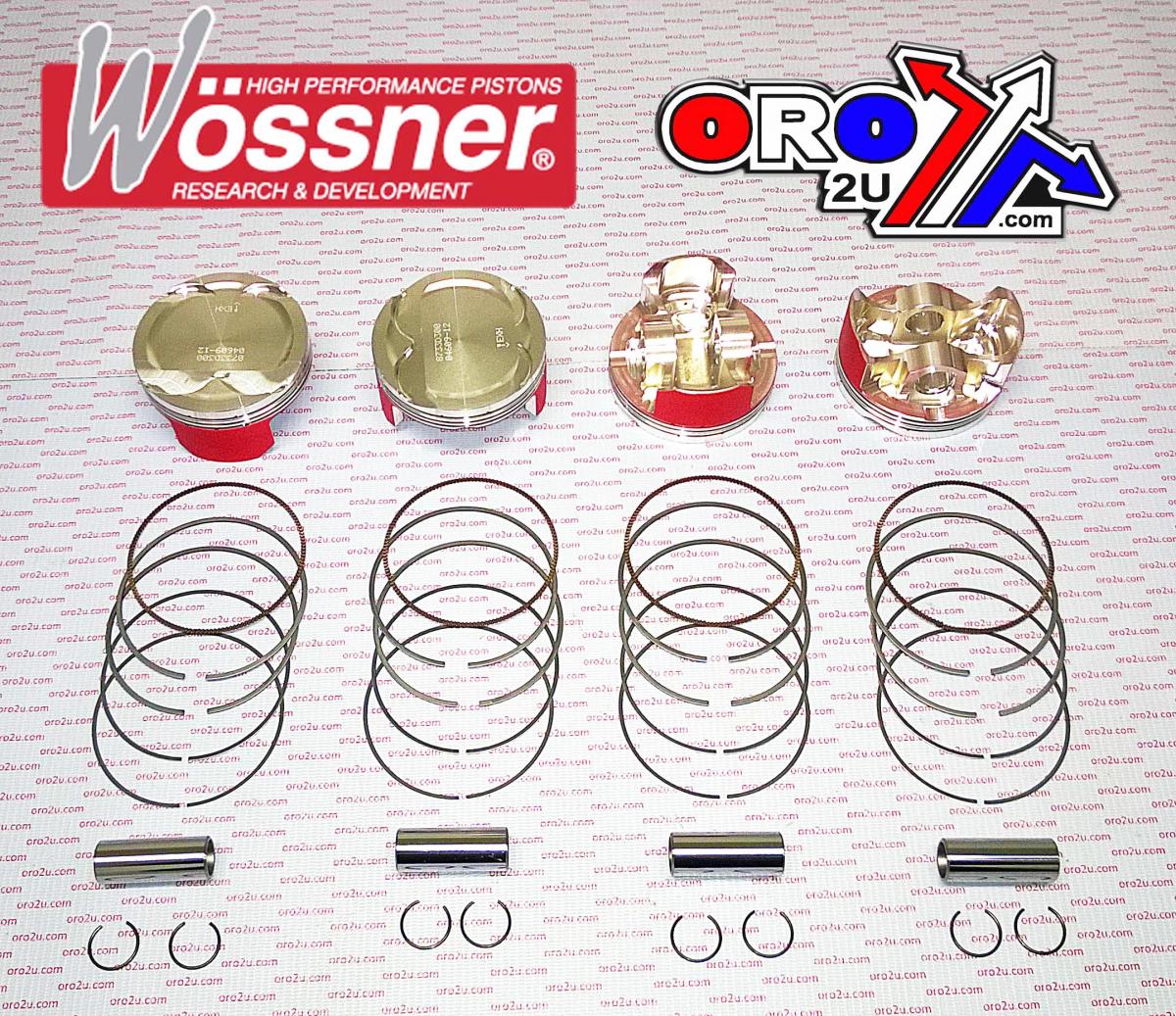

Wossner forged piston kit K8733D200-4 features an 83.00mm bore (+2.00mm oversize) and is engineered for SUZUKI HAYABUSA GSX R 1300 models from 2008 to 2016. Supplied as a set of four high-compression 3-ring pistons from the Pro Series, this kit is designed to support increased displacement and turbo or high-performance naturally aspirated setups. Manufactured in Germany, it delivers outstanding structural integrity, thermal performance, and dimensional precision. Features a forged 3-ring piston design for enhanced durability, engineered for optimal heat transfer, elliptical shape for even expansion and balanced thrust load distribution, minimizes localised stress to prevent piston collapse, and is manufactured in Germany. Specifications include bore 83.00mm (+2.00mm oversize), piston code Wossner K8733D200-4, clip part number CW18, piston pin WP054, ring set RIK83.00A, displacement options 1340 / 1406 / 1440 / 1474 cm³, stroke 63.00 mm, clearance 0.07 mm, Wossner compression ratio 9.00:1, OEM compression ratio 11.00:1, dome volume -17.80 cm³, and compression height 26.80 mm. Cross-reference OEM Part Number 56-W9895.200.WO.
- SKU
- 56-W9895.200.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (16)
| Make | Model | Year |
|---|---|---|
| SUZUKI | GSX R HAYABUSA 1300 | 2008 |
| SUZUKI | GSX R HAYABUSA 1300 | 2009 |
| SUZUKI | GSX R HAYABUSA 1300 | 2010 |
| SUZUKI | GSX R HAYABUSA 1300 | 2011 |
| SUZUKI | GSX R HAYABUSA 1300 | 2012 |
| SUZUKI | GSX R HAYABUSA 1300 | 2013 |
| SUZUKI | GSX R HAYABUSA 1300 | 2014 |
| SUZUKI | GSX R HAYABUSA 1300 | 2015 |
| SUZUKI | GSX1300R Hayabusa | 2008 |
| SUZUKI | GSX1300R Hayabusa | 2009 |
| SUZUKI | GSX1300R Hayabusa | 2010 |
| SUZUKI | GSX1300R Hayabusa | 2011 |
| SUZUKI | GSX1300R Hayabusa | 2012 |
| SUZUKI | GSX1300R Hayabusa | 2013 |
| SUZUKI | GSX1300R Hayabusa | 2014 |
| SUZUKI | GSX1300R Hayabusa | 2015 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 83.00mm
- Variant Id
- 259091
FULL DESCRIPTION
Wossner Forged Piston Kit for Suzuki Hayabusa
Upgrade your Suzuki Hayabusa's performance with this Wossner forged piston kit. Engineered for high-performance applications, including turbocharging and naturally aspirated setups, this kit is designed to handle increased displacement and deliver exceptional durability. Manufactured in Germany, Wossner pistons are renowned for their precision engineering and superior thermal performance.
This kit features a 3-ring piston design for enhanced strength and reliability under demanding conditions. The pistons are forged for maximum structural integrity and undergo precise machining for optimal performance. The elliptical shape of the piston supports even expansion and balanced thrust load distribution, minimizing localized stress and preventing piston collapse. This ensures longevity and consistent performance even in extreme operating environments.
Key Features:
- Forged 3-ring piston design for superior durability.
- Engineered for optimal heat transfer.
- Elliptical piston shape for balanced expansion and thrust load distribution.
- Minimizes localized stress to prevent piston failure.
- Manufactured to exacting standards in Germany.
Specifications:
- Bore: 83.00mm (+2.00mm oversize)
- Piston Code: Wossner K8733D200-4
- Clip Part Number: CW18
- Piston Pin: WP054
- Ring Set: RIK83.00A
- Possible Displacement Options: 1340 / 1406 / 1440 / 1474 cm³
- Stroke: 63.00 mm
- Clearance: 0.07 mm
- Wossner Compression Ratio: 9.00:1
- OEM Compression Ratio: 11.00:1
- Dome Volume: -17.80 cm³
- Compression Height: 26.80 mm
