PISTON KIT SET/4 84 NC 1999-2007 SUZUKI HAYABUSA WOSSNER K4017D300-4
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

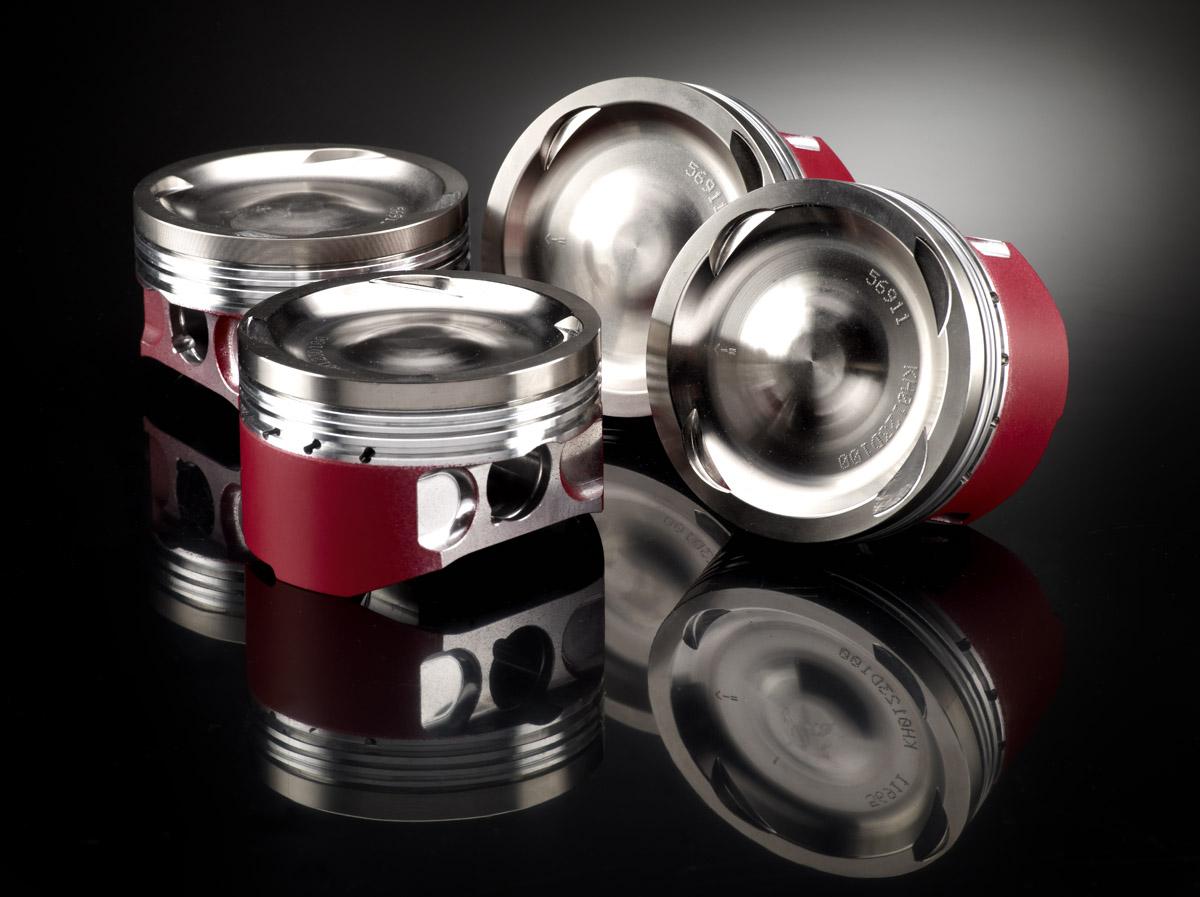

Set of 4 Wossner forged Pro Series pistons with a +3.00mm oversize bore of 84.00mm. Features an elliptical piston design for heat expansion management and even thrust load distribution, optimizing heat transfer and mechanical strength. Includes a 3-ring design, piston pin, and clips. Manufactured in Germany. Part number K4017D300-4. Bore size 84.00mm (actual piston diameter 83.95mm), stroke 63.00mm, clearance 0.05mm, compression ratio 12.00:1, compression height 25.25mm, theoretical weight 253g. Replacement ring set RIK84.00B.
- SKU
- 56-W9897.300.NC.WO
- Brand
- Wossner
- Availability
- In Stock (2)
Fitments (9)
| Make | Model | Year |
|---|---|---|
| SUZUKI | GSX R HAYABUSA 1300 | 1999 |
| SUZUKI | GSX R HAYABUSA 1300 | 2000 |
| SUZUKI | GSX R HAYABUSA 1300 | 2001 |
| SUZUKI | GSX R HAYABUSA 1300 | 2002 |
| SUZUKI | GSX R HAYABUSA 1300 | 2003 |
| SUZUKI | GSX R HAYABUSA 1300 | 2004 |
| SUZUKI | GSX R HAYABUSA 1300 | 2005 |
| SUZUKI | GSX R HAYABUSA 1300 | 2006 |
| SUZUKI | GSX R HAYABUSA 1300 | 2007 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- Variant Id
- 309140
FULL DESCRIPTION
Wossner Piston Kit Set - 4 Pistons, 84mm Bore, +3.00mm Oversize
Elevate your engine's performance with this premium Wossner Piston Kit, engineered for durability and power. This set includes four forged pistons from Wossner's Pro Series, specifically designed for high-performance applications. The elliptical piston design is a key feature, meticulously crafted to manage heat expansion effectively and distribute thrust loads evenly. This reduces stress on the piston and helps prevent piston collapse, ensuring reliable operation even under demanding conditions. Manufactured in Germany, these pistons represent the pinnacle of quality and precision engineering.
Key Features:
- Set of 4 forged Wossner Pro Series pistons
- +3.00mm oversized bore for increased displacement
- 84.00mm bore size (actual piston diameter 83.95mm)
- Durable 3-ring design
- Elliptical construction for superior heat expansion management and load distribution
- Optimised for efficient heat transfer and robust mechanical strength
- Made in Germany to exacting standards
Specifications:
- Part Number: K4017D300-4
- Bore Size: 84.00mm (83.95mm piston diameter)
- Oversize: +3.00mm
- Stroke: 63.00mm
- Clearance: 0.05mm
- Wossner Compression Ratio: 12.00:1
- Compression Height: 25.25mm
- Theoretical Weight: 253g per piston
Related Components:
- Clip: CW20
- Piston Pin: WP029-SP
- Replacement Ring Set: RIK84.00B
