PISTON KIT LTZ400 90.00, FORGED WOSSNER 8563DA 13001-S006 12111-29F00-0F0

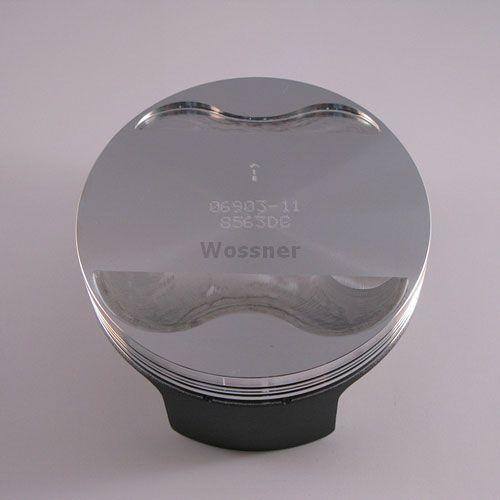

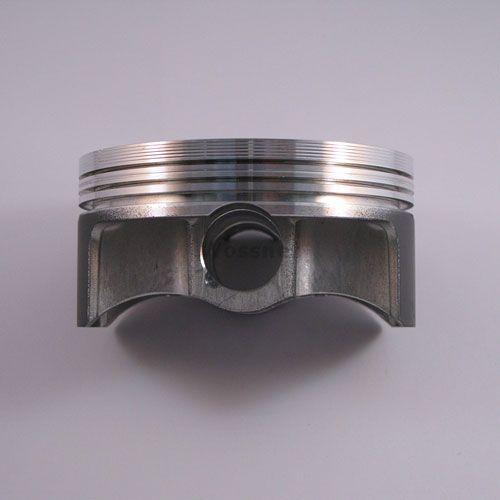

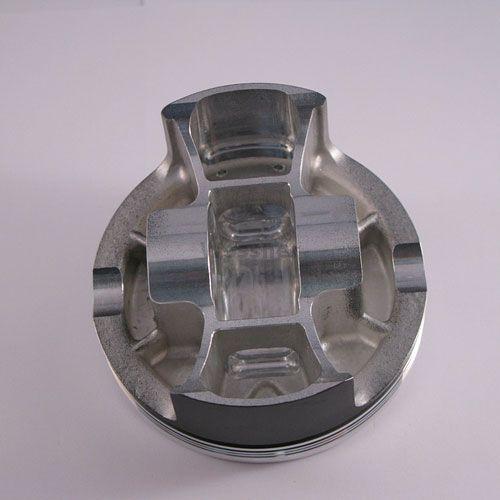

Wossner Forged Piston Kit - 90.00mm Bore

Upgrade your engine's performance and durability with this Wossner forged piston kit. Engineered for strength and optimal heat transfer, this piston kit is designed to meet OEM compression specifications. The elliptical piston design ensures even load distribution, reducing localized pressure and preventing piston collapse, leading to a more reliable and efficient engine.

Key Features:

• Forged Construction: Provides superior strength and durability for high-performance applications.
• Optimized Heat Transfer: Enhances efficiency by ensuring effective heat transfer to cylinder walls.
• Elliptical Design: Guarantees a uniform bearing surface, preventing localized stress and piston collapse.
• High-Quality Manufacturing: Proudly manufactured in Germany to exacting standards.
• OEM Compression Ratio: Maintains original specifications for seamless integration.

Specifications:

• Actual Bore Size: 89.94mm
• Nominal Bore Size: 90.00mm
• Displacement: 398 cm³
• Stroke: 62.60mm
• Piston Clearance: 0.06mm
• Compression Height: 25.30mm
• Dome Volume: -2.00 cm³
• Compression Ratio: 12.20:1 (OEM Specification)

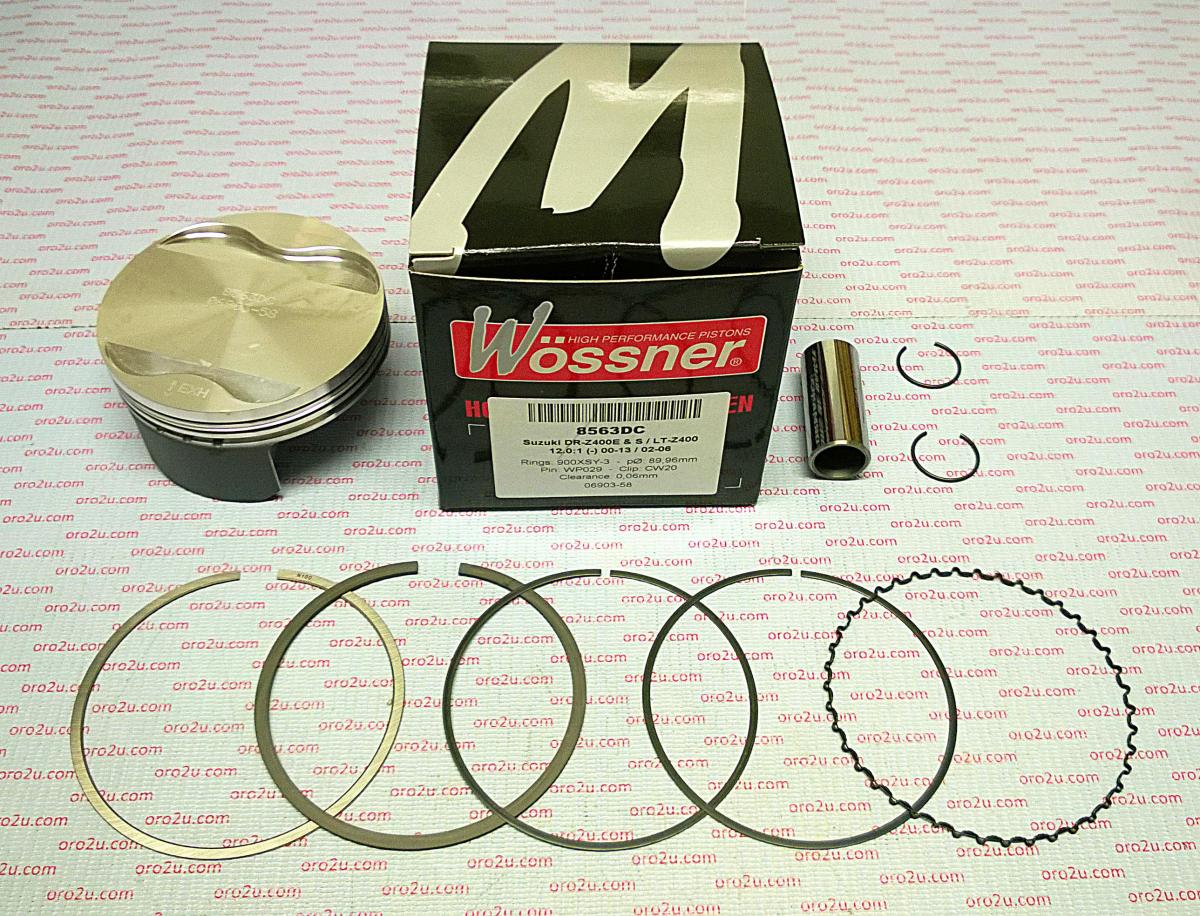

Included Components:

• Piston Kit P/N: 8563DA
• Piston Lock P/N: CW20
• Piston Pin P/N: WP029
• Ring Set P/N: 900XSY
• Rod P/N: P4009

Cross-Reference OEM Part Numbers:

• 13001-S006
• 4713M09000
• 12111-29F00-0F0
