PISTON KIT LTR450 HC 95.50 C, WOSSNER 8699DC 13.3:1 COMP, SUZUKI

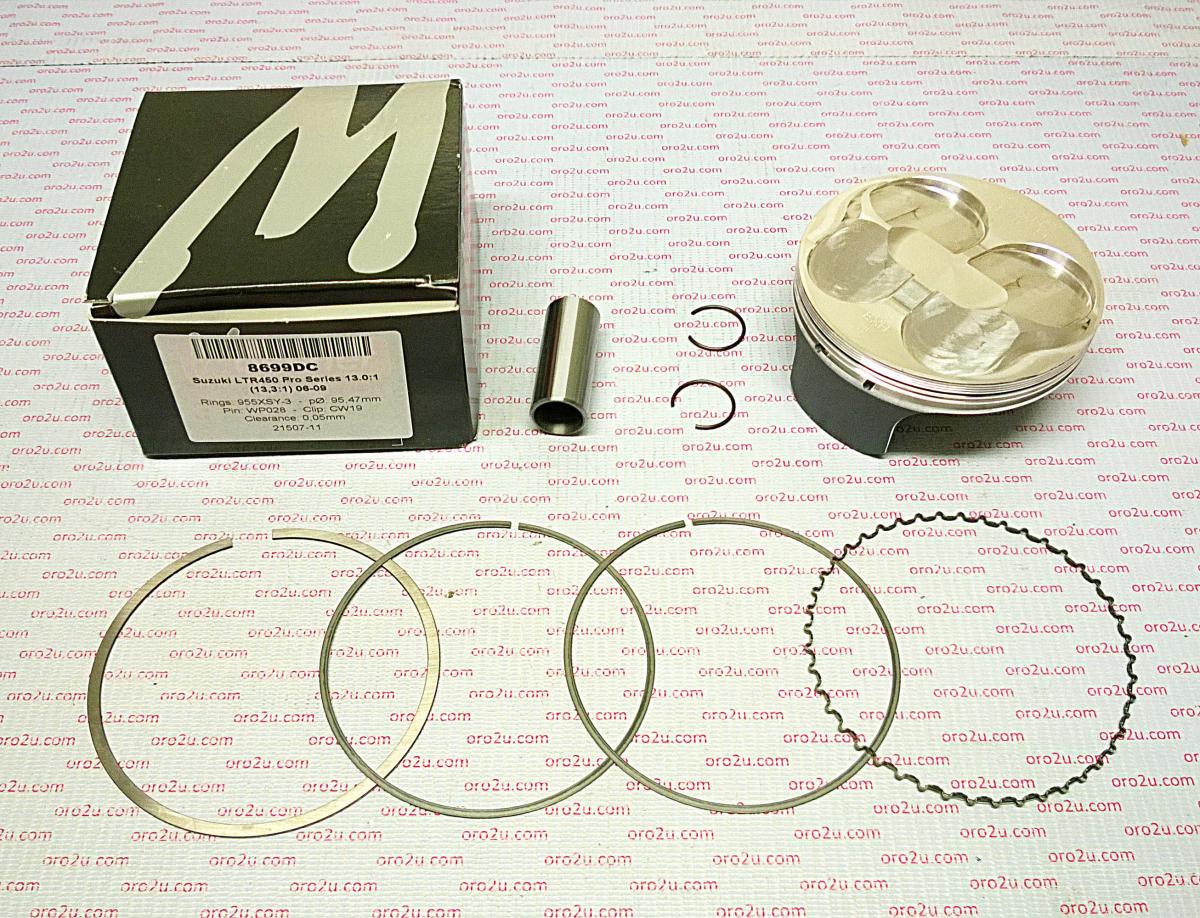

Wossner 8699DC forged piston kit with a 95.52mm bore and 13.3:1 compression ratio, designed for high-compression performance. Engineered in Germany, this piston provides superior heat transfer, strength, and reliability. Its elliptical shape ensures even load distribution under heat expansion, reducing localized stress and the risk of piston failure. Specifications include an actual bore diameter of 95.46mm, 450cm³ displacement, 62.80mm hub stroke, 0.05mm clearance, 24.50mm compression height, and +2.30cm³ dome volume. The OEM compression ratio is 11.70:1. Kit includes piston, lock, pin, ring set, and rod. Part number 56-W4912.WO.C.
- SKU
- 56-W4912.WO.C
- Brand
- Wossner
- Availability
- In Stock (6)
FULL DESCRIPTION
Wossner High Compression Piston Kit for LTR450
Upgrade your Suzuki LTR450 with this Wossner 8699DC forged piston kit, engineered for high-compression performance and exceptional durability. Designed and manufactured in Germany, this piston kit is built to withstand the demands of high-performance riding.
Key Features:
- Forged high-compression piston for enhanced engine performance and longevity.
- Optimized for superior heat transfer, strength, and reliability.
- Features an elliptical profile designed to distribute pressure uniformly under heat expansion.
- Reduces localized stress and the risk of piston failure for a more dependable engine.
- Precision manufactured in Germany to exacting standards.
Specifications:
- Bore: 95.52 mm
- Actual Bore Diameter: 95.46 mm
- Engine Displacement: 450 cm³
- Stroke: 62.80 mm
- Piston Clearance: 0.05 mm
- Compression Height: 24.50 mm
- Dome Volume: +2.30 cm³
- Wossner Compression Ratio: 13.30:1
- OEM Compression Ratio: 11.70:1
