PISTON KIT KXF250 2017 77mm B, WOSSNER 8935DB HC 14.5:1
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply

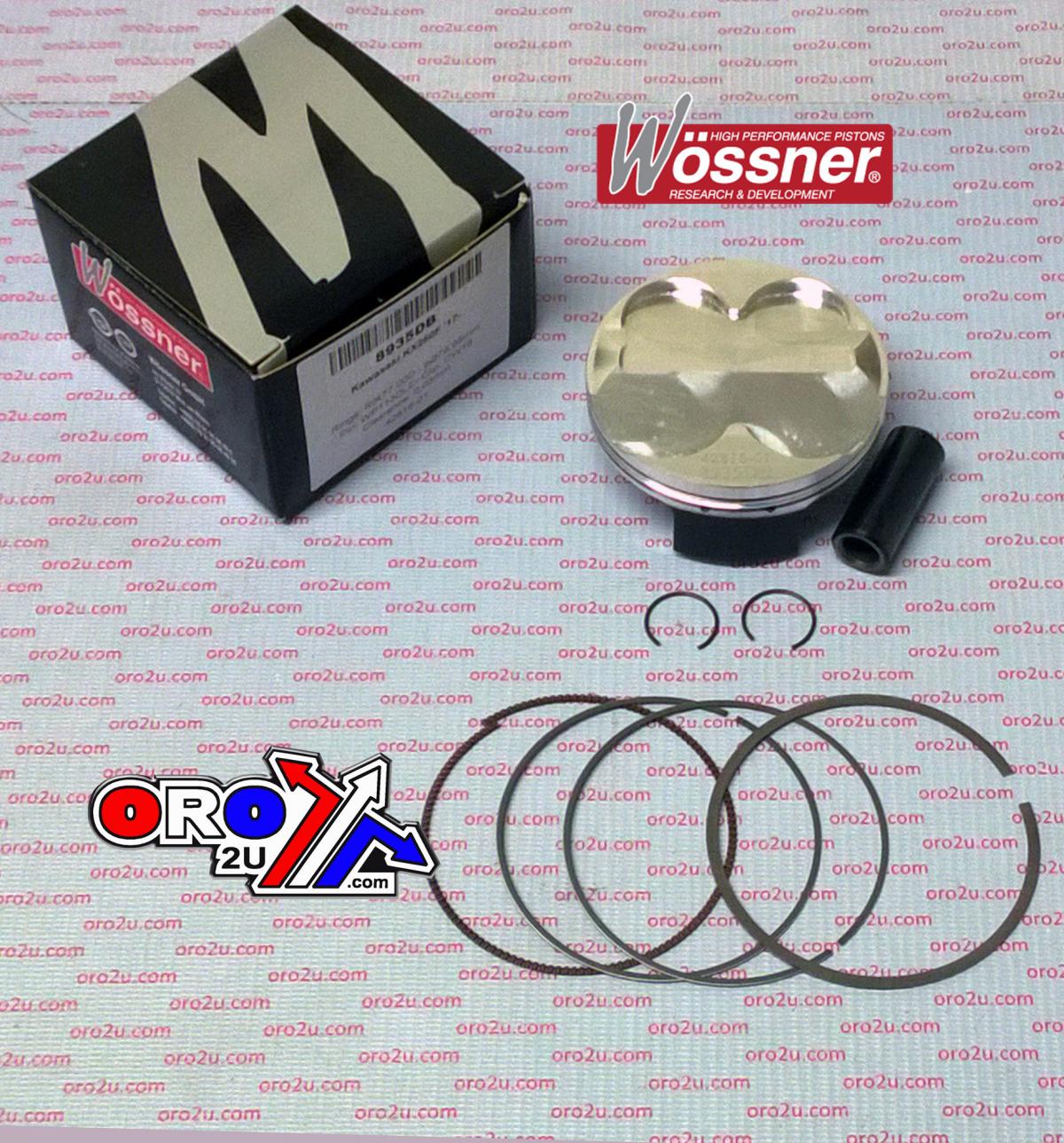

Wossner 8935DB piston kit features a 77.00mm standard bore and a 76.98mm diameter with a B (+0.01mm) sizing. This high-compression forged piston has a 14.5:1 compression ratio for improved engine performance and is designed for optimal heat transfer and mechanical reliability. Manufactured in Germany, it includes a RIK77.00D ring set, WP070 pin, and CW16 circlips.
- SKU
- 56-W9952.B.WO.H
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (6)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 250 | 2017 |
| KAWASAKI | KX 250 | 2018 |
| KAWASAKI | KX 250 | 2019 |
| KAWASAKI | KX 250F | 2017 |
| KAWASAKI | KX 250F | 2018 |
| KAWASAKI | KX 250F | 2019 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 77.00mm
- Variant Id
- 259303
FULL DESCRIPTION
Wossner 77mm High Compression Forged Piston Kit for Kawasaki KXF250
This Wossner piston kit is meticulously engineered for the Kawasaki KXF250, providing a significant upgrade in performance and durability. Crafted from forged aluminum, this piston is built to withstand the rigors of high-performance riding, offering superior strength and reliability. The kit includes all necessary components for a complete installation, ensuring a seamless fit and optimal engine function. Manufactured in Germany, Wossner is renowned for its commitment to precision engineering and quality materials.
Key Features
- Forged Construction: Utilizes a forged aluminum alloy for exceptional strength, durability, and resistance to thermal stress, ensuring longevity under demanding conditions.
- High Compression Ratio: Features a 14.5:1 compression ratio designed to maximize power output and throttle response by increasing combustion efficiency.
- Optimized Diameter and Sizing: With a 77.00mm standard bore and a 76.98mm piston diameter, this 'B' size (+0.01mm) offers a precise fit for enhanced sealing and performance.
- Elliptical Design: The piston's elliptical skirt design promotes even expansion and contraction with temperature changes, minimizing friction and reducing stress on critical components.
- Superior Heat Dissipation: Engineered for efficient transfer of heat from the piston crown to the cylinder walls, helping to prevent overheating and maintain optimal operating temperatures.
- Complete Kit: Includes the high-compression forged piston, RIK piston rings, WP070 piston pin, and CW16 circlips for a comprehensive solution.
Specifications
- Bore Size: 77.00mm (STD)
- Piston Diameter: 76.98mm
- Sizing Designation: B (+0.01mm)
- Compression Ratio: 14.5:1
- Wossner Part Number: 8935DB
- Kit Part Number:.H
- Manufacturer: Wossner
- Origin: Made in Germany
