PISTON KIT KXF250 2017 77mm A, WOSSNER 8935DA HC 14.5:1 13001-0793
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

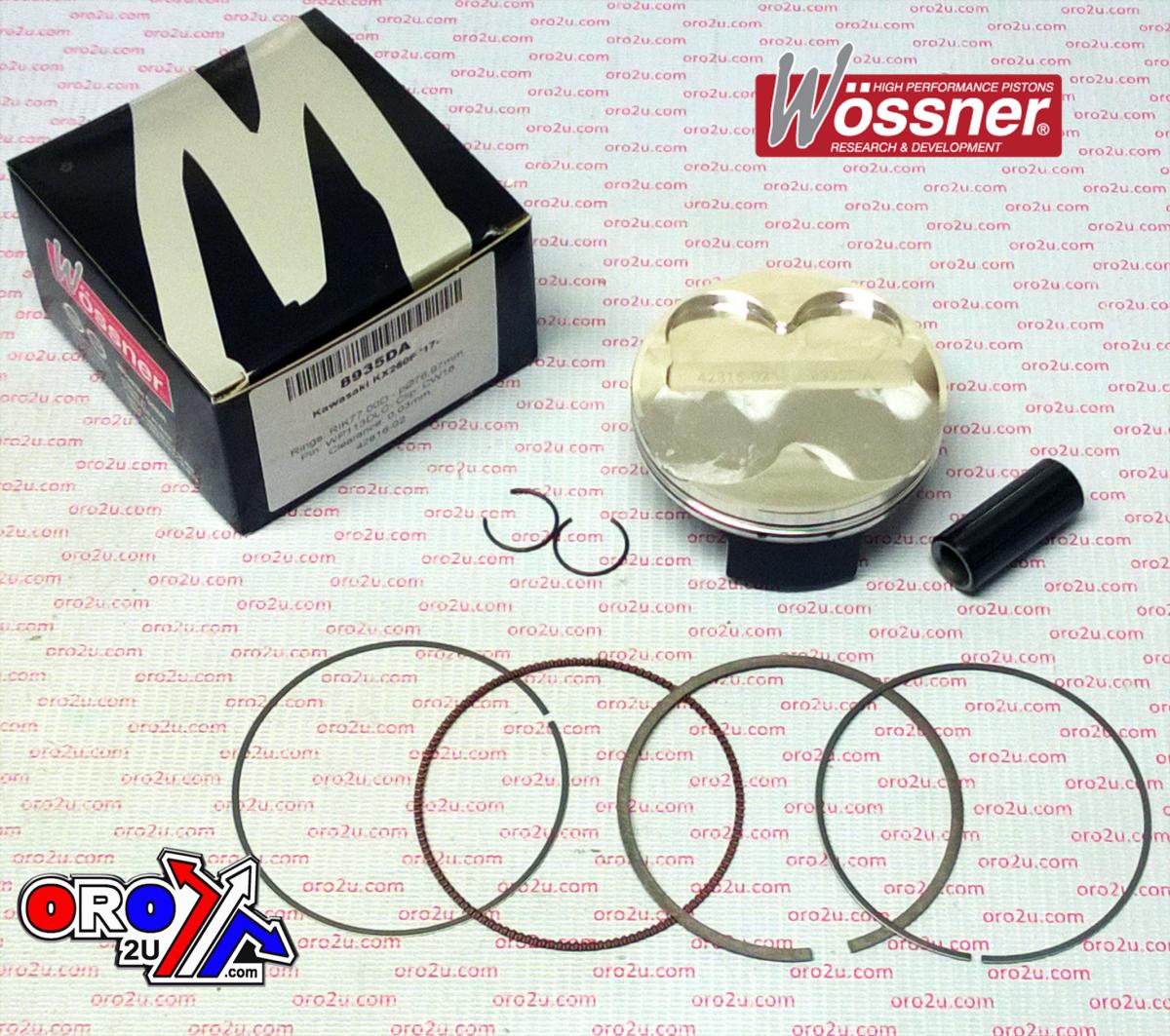

Wossner 8935DA high-compression forged piston kit with a 77.00mm standard bore and 76.97mm diameter. Features a 14.5:1 compression ratio, forged construction for strength, and engineered heat dissipation. Includes piston, RIK77.00D ring set, WP070 pin, and CW16 circlips. Specifications include 77.00mm bore, 76.97mm diameter, 14.5:1 compression ratio. Wossner Part Number: 8935DA. Kit Part Number: 56-W9952.A.WO.H. Made in Germany. Cross-reference OEM Part Numbers: 13001-0785, 13002-0048, 13008-0028, 92033-1161, 13001-0793, 40178M07700, RIK77.00D, WP070, CW16.
- SKU
- 56-W9952.A.WO.H
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (6)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 250 | 2017 |
| KAWASAKI | KX 250 | 2018 |
| KAWASAKI | KX 250 | 2019 |
| KAWASAKI | KX 250F | 2017 |
| KAWASAKI | KX 250F | 2018 |
| KAWASAKI | KX 250F | 2019 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 77.00mm
- Variant Id
- 259300
FULL DESCRIPTION
Wossner 8935DA High Compression Forged Piston Kit
Elevate your engine's performance with the Wossner 8935DA piston kit, a premium, German-engineered component designed for demanding riders. This high-compression forged piston is built for strength and durability, offering a significant boost in power output for compatible motorcycles.
Key Features:
- Forged Construction: Provides superior strength and longevity, capable of withstanding high performance demands.
- High Compression Ratio: Features a 14.5:1 compression ratio for increased engine power and responsiveness.
- Optimized Thermal Management: Engineered to effectively dissipate heat to cylinder walls, ensuring stable operation under stress.
- Elliptical Piston Profile: Designed for even load distribution, accommodating thermal expansion for optimal performance and reduced wear.
- Complete Kit: Includes the piston, a high-quality ring set (RIK77.00D), pin (WP070), and circlips (CW16) for a seamless installation.
Specifications:
- Standard Bore: 77.00mm
- Measured Diameter: 76.97mm
- Compression Ratio: 14.5:1
- Wossner Part Number: 8935DA
- Made in Germany
