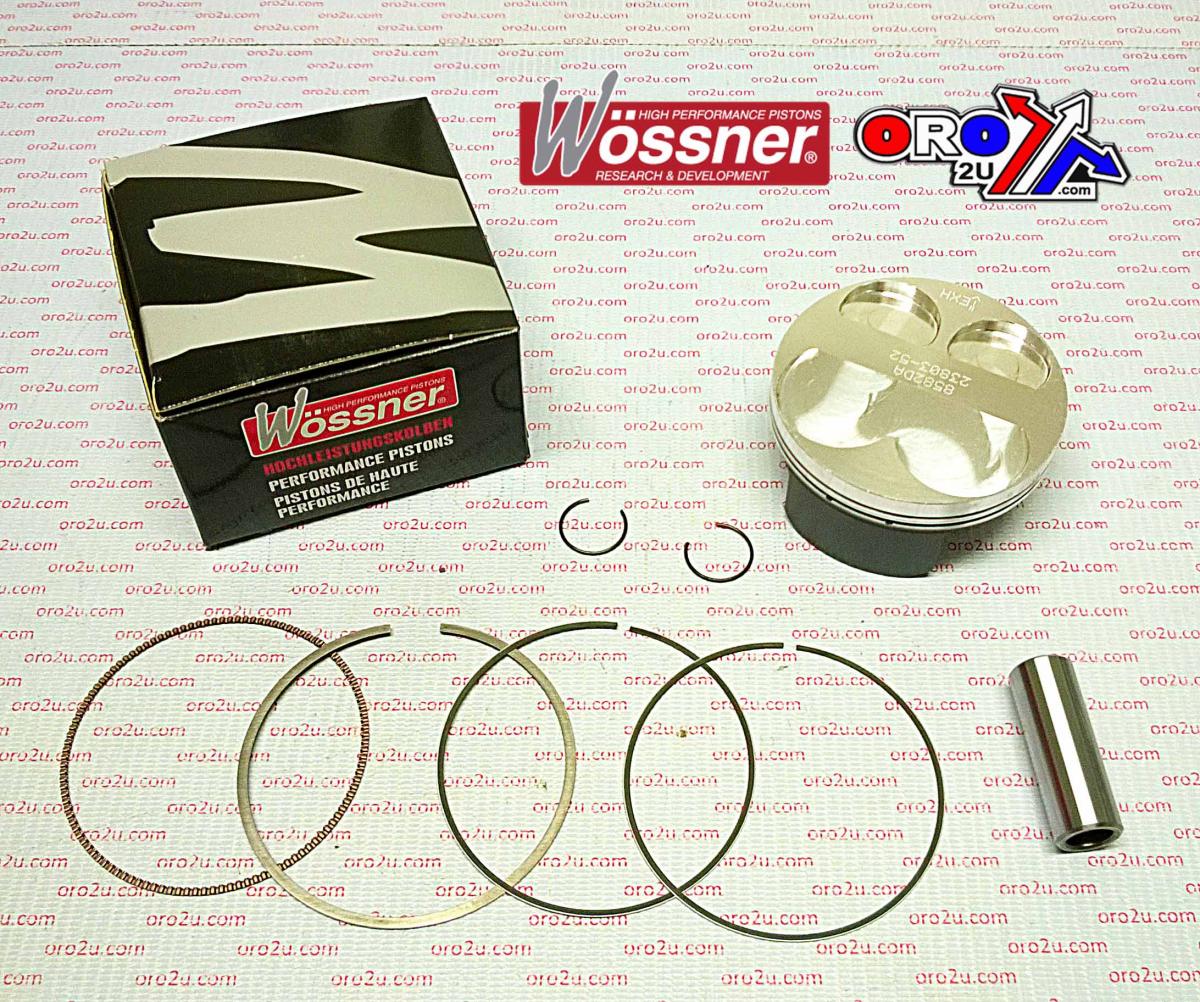

PISTON KIT KXF RMZ 250 77.00 B, FORGED WOSNER 8582DB
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner 77.01mm forged piston kit engineered for strength and durability with optimal heat transfer for efficient combustion chamber cooling. The elliptical design ensures a uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany for precision and reliability. Features forged construction for enhanced strength and longevity, optimized heat transfer for improved engine performance, and an elliptical design that prevents piston collapse and ensures even load distribution. Specifications include a bore size of 77.01mm, actual bore diameter of 76.97mm, displacement of 249 cm³, stroke of 53.60mm, clearance of 0.04mm, Wossner compression ratio of 12.10:1, OEM compression ratio of 12.60:1, dome volume of -5.90 cm³, compression height of 19.60mm, gasket part number D4013, lock part number CW16, pin part number WP059, ring set part number 770XAS, and rod part number P4002. Cross-reference OEM part numbers include 56-W4842.B.WO and Wossner part number 8582DB.
- SKU
- 56-W4842.B.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (12)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 250F | 2004 |
| KAWASAKI | KX 250F | 2005 |
| KAWASAKI | KX 250F | 2006 |
| KAWASAKI | KX 250F | 2007 |
| KAWASAKI | KX 250F | 2008 |
| KAWASAKI | KX 250F | 2009 |
| SUZUKI | RM-Z 250 | 2004 |
| SUZUKI | RM-Z 250 | 2005 |
| SUZUKI | RM-Z 250 | 2006 |
| SUZUKI | RM-Z 250 | 2007 |
| SUZUKI | RM-Z 250 | 2008 |
| SUZUKI | RM-Z 250 | 2009 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 77mm
- Variant Id
- 256241
FULL DESCRIPTION

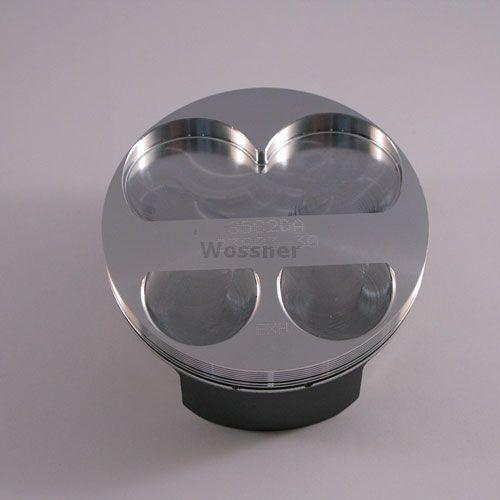

Wossner 77.01mm Forged Piston Kit
This Wossner forged piston kit is engineered for superior strength and durability, offering optimal performance for your motorcycle. Its design focuses on efficient heat transfer for improved combustion chamber cooling. The unique elliptical shape ensures a uniform bearing surface, effectively distributing thrust loads and preventing piston collapse for enhanced longevity.
Key Features:
- Forged Construction: Provides exceptional strength and extended lifespan.
- Optimized Heat Transfer: Promotes efficient cooling of the combustion chamber, leading to better performance.
- Elliptical Design: Prevents piston collapse by distributing loads evenly and creating a uniform bearing surface.
- Precision Manufacturing: Made in Germany to ensure high-quality standards and reliability.
Specifications:
- Bore Size: 77.01mm
- Actual Bore Diameter: 76.97mm
- Displacement: 249 cm³
- Stroke: 53.60mm
- Clearance: 0.04mm
- Wossner Compression Ratio: 12.10:1
- OEM Compression Ratio: 12.60:1
- Dome Volume: -5.90 cm³
- Compression Height: 19.60mm
- Gasket Part Number: D4013
- Lock Part Number: CW16
- Pin Part Number: WP059
- Ring Set Part Number: 770XAS
- Rod Part Number: P4002
Product Identifiers:
- Part Number:
- Wossner Part Number: 8582DB
