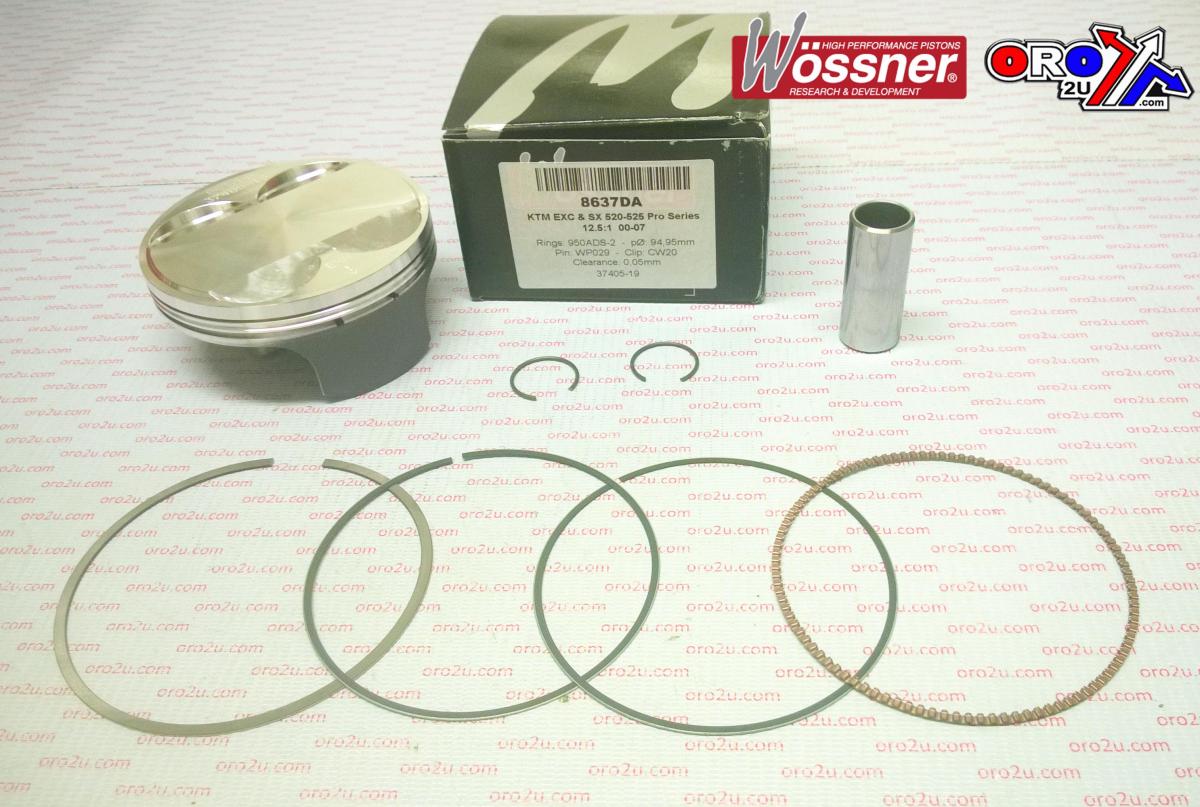

PISTON KIT KTM 520 525 EXC SX, WOSSNER 8637DB KTM 00-09 HC

£203.33Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

Wossner high-compression forged piston kit. Features optimized heat transfer for efficient combustion chamber performance and an elliptical design for even thrust load distribution and reduced piston collapse. Manufactured in Germany. Specifications include a bore size of 95.01mm, actual bore diameter of 94.96mm, displacement of 510 cm³, stroke of 72.00mm, clearance of 0.05mm, Wossner compression ratio of 12.50:1, OEM compression ratio of 11.00:1, dome volume of +4.60 cm³, compression height of 23.50mm, lock part number CW20, pin part number WP029, and ring set part number 950ADS-2.

Specifications
SKU
56-W216+00B.WO
Brand
Wossner
Availability
In Stock (1)

Fitments (5)

MakeModelYear
BETARR 525 Enduro2005
BETARR 525 Enduro2006
BETARR 525 Enduro2007
BETARR 525 Enduro2008
BETARR 525 Enduro2009
General Product Group
Engine
General Product Type
Pistons & Kits
Variant Id
255045
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Wossner High Compression Forged Piston Kit

Enhance your KTM or Beta motorcycle's performance with this Wossner high-compression forged piston kit. Engineered for superior strength and optimal heat transfer, this piston is designed to deliver increased power and efficiency. The advanced elliptical design ensures uniform bearing surface under heat expansion, effectively reducing localized pressure and preventing piston collapse for improved durability. This premium piston kit is manufactured in Germany to exacting standards.

Key Features:

  • High-compression forged piston for significantly increased performance
  • Engineered for optimized heat transfer, leading to more efficient combustion
  • Elliptical piston design promotes even thrust load distribution
  • Reduces the risk of piston collapse under extreme operating conditions
  • Precision manufactured in Germany for exceptional quality and reliability

Specifications:

  • Bore Size: 95.01mm
  • Actual Bore Diameter: 94.96mm
  • Displacement: 510 cm³
  • Stroke: 72.00mm
  • Clearance: 0.05mm
  • Wossner Compression Ratio: 12.50:1
  • OEM Compression Ratio: 11.00:1
  • Dome Volume: +4.60 cm³
  • Compression Height: 23.50mm
  • Lock Part Number: CW20
  • Pin Part Number: WP029
  • Ring Set Part Number: 950ADS-2
