PISTON KIT KTM 105 SX XC 52.00, FORGED WOSSNER 8224DC 03-08
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days

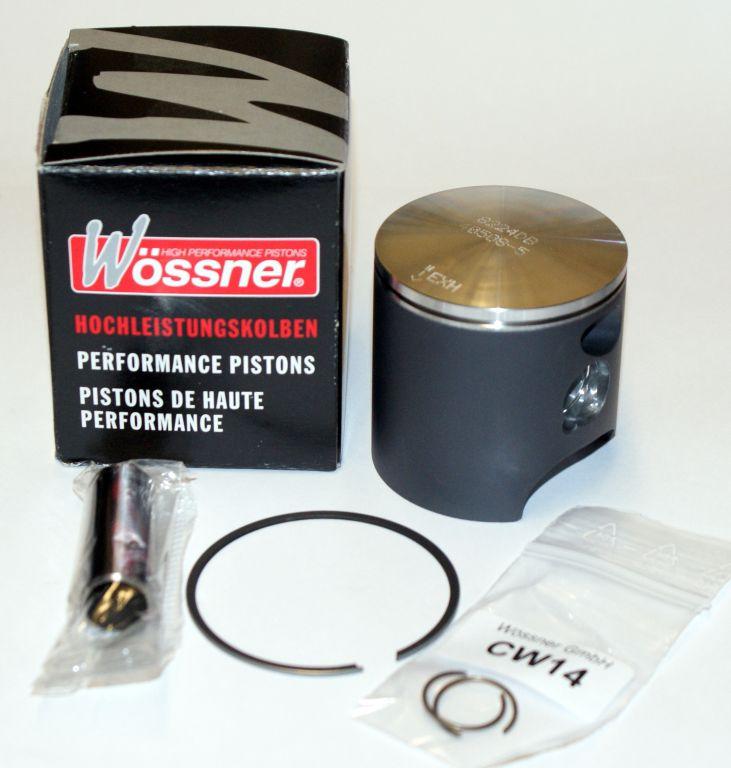

Wossner forged piston kit with a 52.02mm bore (51.96mm). Features a single-ring design for reduced friction and improved performance. Optimized heat transfer for enhanced efficiency. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany. Specifications include bore size 52.02mm (51.96mm), part number 8224DC, lock part number CW14, pin part number WP058, ring set part number RSB5200, rod part number P2006, displacement 104 cm³, stroke 49.00mm, clearance 0.06mm, compression ratio 2-stroke, and compression height 24.00mm.
- SKU
- 56-W314.C.WO
- Brand
- Wossner
- Availability
- Out of Stock
Fitments (15)
| Make | Model | Year |
|---|---|---|
| KTM | 105 SX | 2004 |
| KTM | 105 SX | 2005 |
| KTM | 105 SX | 2006 |
| KTM | 105 SX | 2007 |
| KTM | 105 SX | 2008 |
| KTM | 105 SX | 2009 |
| KTM | 105 SX | 2010 |
| KTM | 105 SX | 2011 |
| KTM | 105 SX | 2012 |
| KTM | 105 SX | 2013 |
| KTM | 105 SX | 2014 |
| KTM | 105 SX | 2015 |
| KTM | 105 SX | 2016 |
| KTM | 105 XC | 2008 |
| KTM | 105 XC | 2009 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 52mm
- Variant Id
- 255409
FULL DESCRIPTION
Wossner Forged Piston Kit - 52.02mm Bore
Enhance your engine's performance and durability with this high-quality Wossner forged piston kit. Engineered for superior strength and efficient heat transfer, this piston is designed to optimize combustion and withstand demanding conditions.
Key Features:
- Forged Construction: Provides exceptional strength and durability for increased engine life.
- Single-Ring Design: Minimizes friction and contributes to improved overall performance.
- Optimized Heat Transfer: Ensures efficient heat management for enhanced operational efficiency.
- Elliptical Design: Features an elliptical shape that maintains a uniform bearing surface under heat expansion, ensuring even thrust load distribution and preventing piston collapse.
- German Manufacturing: Crafted with precision and quality in Germany.
Specifications:
- Bore Size: 52.02mm (actual measured 51.96mm)
- Piston Part Number: 8224DC
- Lock Ring Part Number: CW14
- Piston Pin Part Number: WP058
- Ring Set Part Number: RSB5200
- Connecting Rod Part Number: P2006
- Engine Displacement: 104 cm³
- Stroke: 49.00mm
- Piston Clearance: 0.06mm
- Compression Height: 24.00mm
