PISTON KIT HONDA CR125 92-99 54.50, WOSSNER 8020D050,

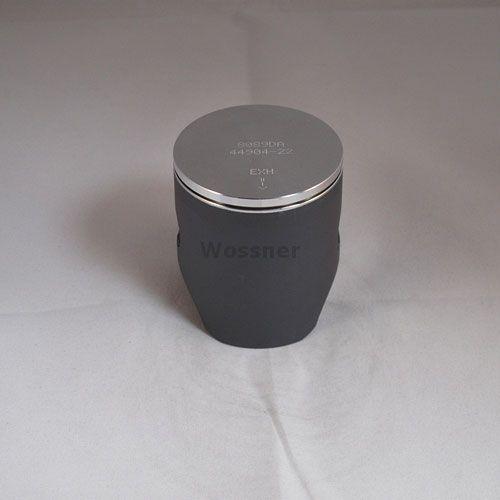

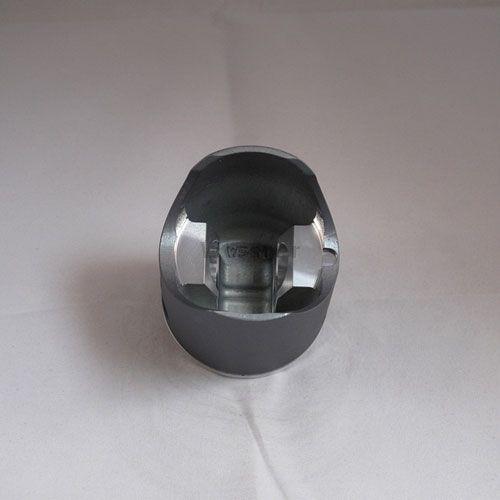

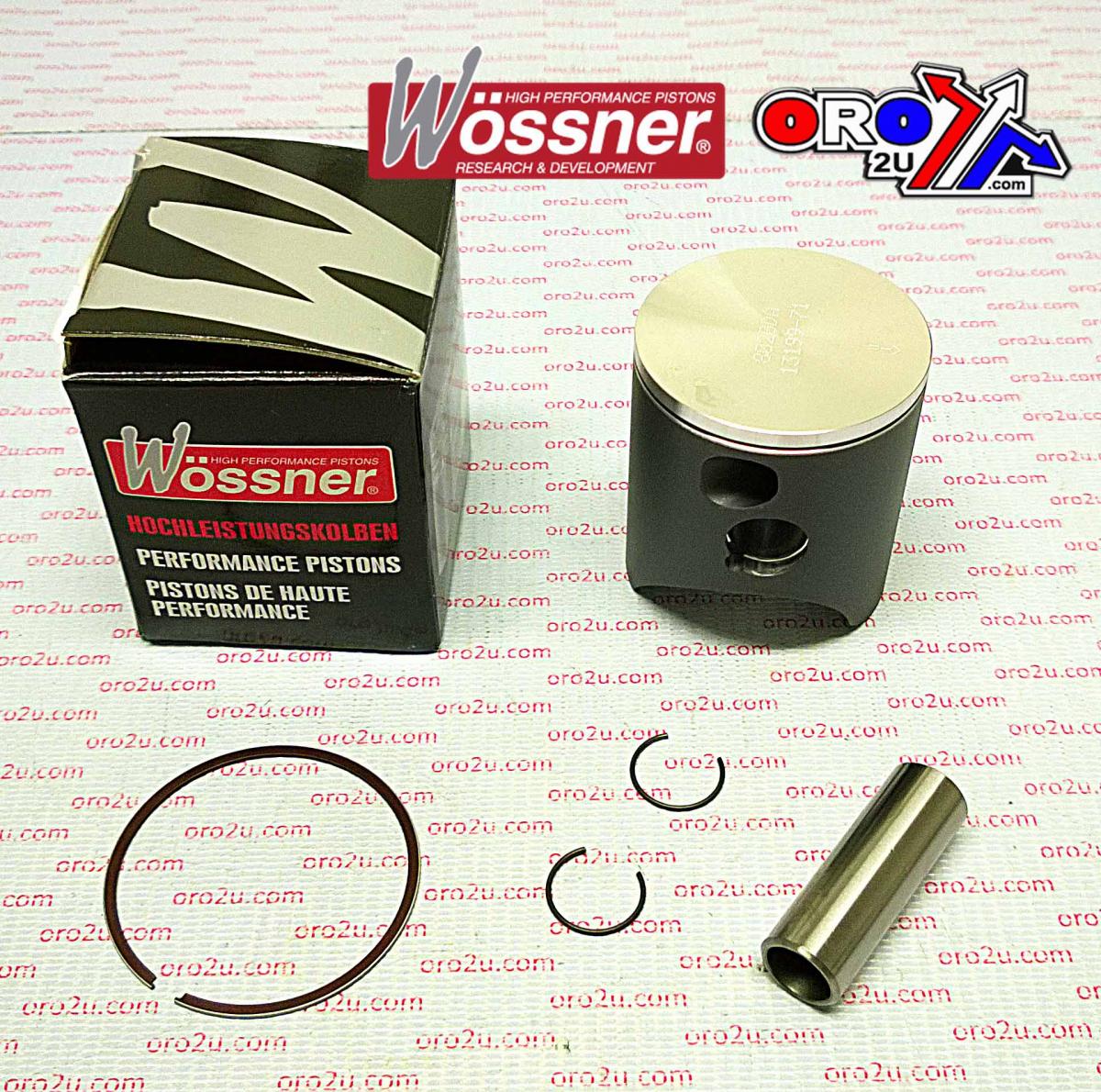

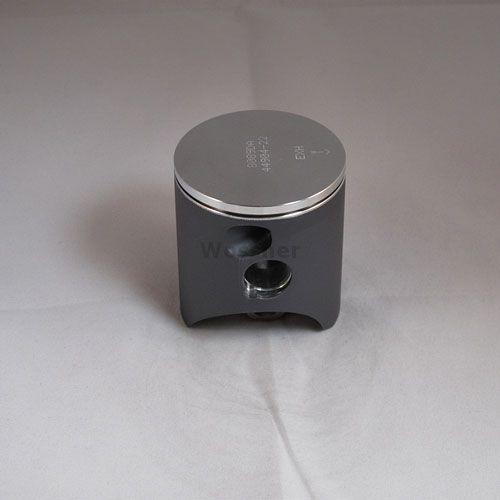

Wossner Forged Piston Kit 54.50mm Bore for Honda CR125 (1992-1999)

Enhance the performance and durability of your Honda CR125 with this premium Wossner forged piston kit. Engineered in Germany, this piston kit is designed to meet the demands of high-performance engines.

Key Features:

• Forged Piston Construction: Offers superior strength and reliability compared to cast pistons, providing increased resistance to thermal and mechanical stresses.
• Precision Engineering: Manufactured with exacting tolerances for consistent quality and optimal fitment.
• Advanced Design: Features an elliptical piston design that promotes even thrust load distribution and minimizes localized stress for extended component life.
• Enhanced Heat Transfer: Designed for superior heat transfer capability to cylinder walls, aiding in efficient engine operation.
• Oversize Application: With a 54.50 mm bore and 54.45 mm piston diameter (+0.50 mm oversize), this kit is ideal for cylinders requiring significant oversizing.

Specifications:

• Bore Size: 54.50 mm
• Piston Diameter: 54.45 mm
• Engine Displacement: 125 cm³
• Stroke: 54.50 mm
• Clearance: 0.05 mm
• Compression Height: 28.00 mm
• Compression Ratio: 2-stroke (compatible with Wossner and OEM specifications)

Wossner Component Reference Numbers:

• Piston Kit: 8020D050
• Lock: CW15
• Pin: WP032
• Ring Set: RSB5450
• Rod: P2009
