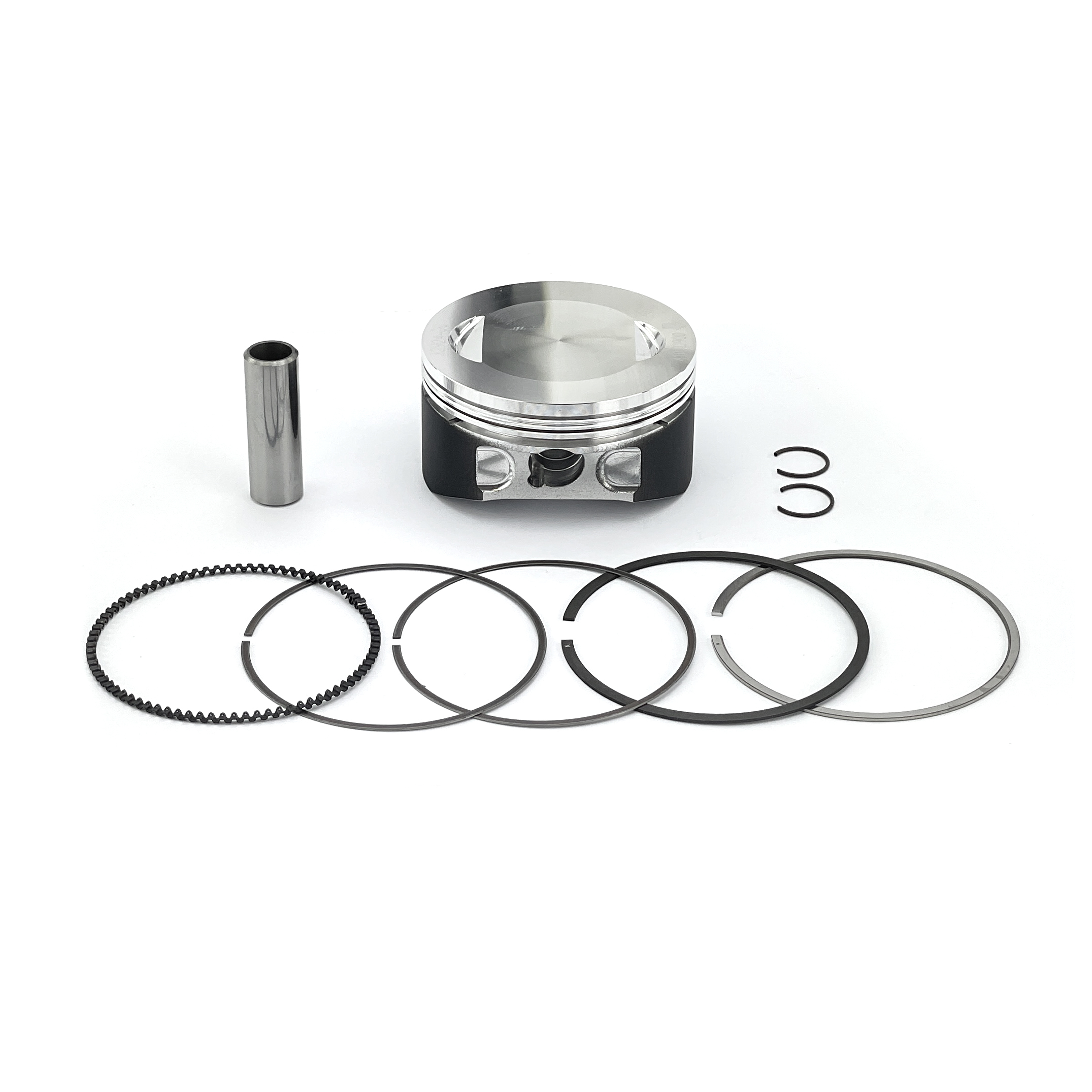

PISTON KIT HONDA CBR125R 2004-2015, WOSSNER 4101D900
High-performance piston designed for exceptional reliability and precision, engineered to meet the demands of competitive environments while maintaining optimal engine performance. Features a compression ratio of 11.5:1, bore size of 67.00 mm, and piston size of 66.96 mm for a precise fit with a clearance of 0.04 mm. Specifications include 1 cylinder, 47.20mm stroke, 166.4 displacement, 18.5mm compression distance, estimated weight of 123g, ring set 670XKS-3, wrist pin WP157-SP, and retaining clip CW13. Part number 4101D900.
- SKU
- 56-W4101.+9.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Piston Kit for Honda CBR125R
This high-performance Wossner piston kit is engineered for Honda CBR125R models, providing exceptional reliability and precision. Designed to meet the demands of competitive riding, this piston maintains optimal engine performance.
Key Features:
- Compression Ratio: 11.5:1 for enhanced engine efficiency.
- Bore Size: 67.00 mm.
- Piston Size: 66.96 mm for a precise fit.
- Manufacturing Clearance: 0.04 mm for optimal operation.
Specifications:
- Number of Cylinders: 1
- Stroke: 47.20mm
- Displacement: 166.4
- Compression Distance: 18.5mm
- Estimated Weight: 123g
- Ring Set: 670XKS-3
- Wrist Pin: WP157-SP
- Retaining Clip: CW13
Part Number: 4101D900
