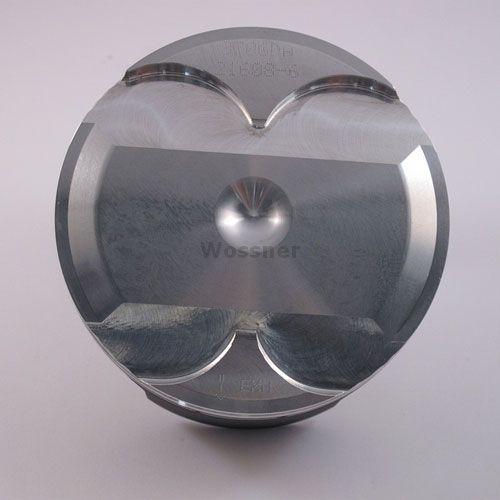

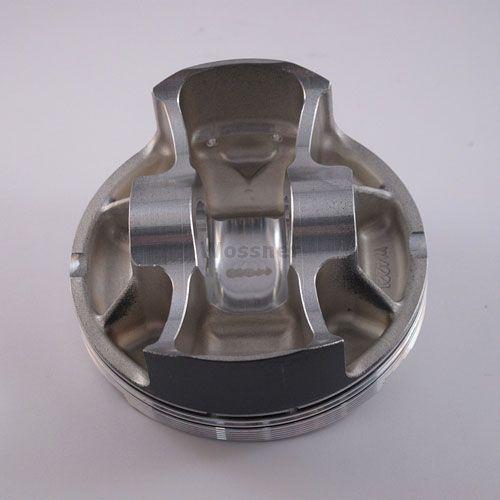

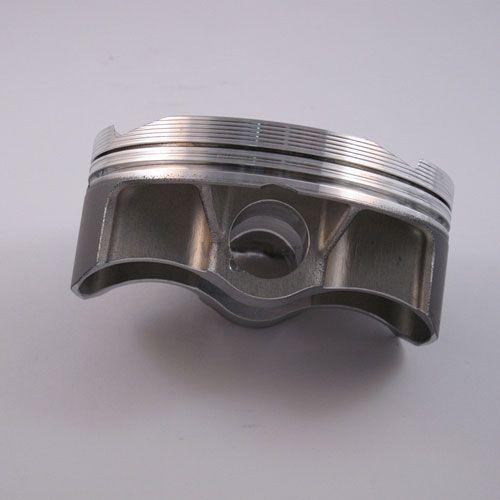

PISTON KIT EXC-R530 KTM HC 95, FORGED WOSSNER 8706DB
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged piston kit with a 100.01mm bore and 99.96mm diameter. This high-compression piston has a 12.50:1 ratio for enhanced performance and durability. Manufactured in Germany, it ensures optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Features forged construction for superior strength, optimized heat transfer for efficient combustion, and an elliptical design for uniform load distribution. Specifications include: Bore 100.01mm, Diameter 99.96mm, Display (cm³) 510, Stroke (mm) 72.00, Clearance (mm) 0.04, Wossner Compression Ratio 12.50:1, OEM Compression Ratio 11.90:1, Dome Volume (cm³) -2.80, Compression Height (mm) 24.40. Includes Lock P/N: CW19, Pin P/N: WP037, and Ring Set P/N: 950ADS. OEM References: PROX 01.6528, WOSSNER 8706.
- SKU
- 56-W246.B
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (5)
| Make | Model | Year |
|---|---|---|
| KTM | 530 EXC R | 2008 |
| KTM | 530 EXC R | 2009 |
| KTM | 530 EXC R | 2010 |
| KTM | 530 EXC R | 2011 |
| KTM | 530 EXC R | 2012 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 95mm
- Variant Id
- 255189
FULL DESCRIPTION
Wossner Forged Piston Kit for KTM EXC-R530
Enhance the performance and durability of your KTM EXC-R530 with this Wossner forged piston kit. Engineered for high-compression applications, this piston offers superior strength and efficiency.
Key Features:
- Forged construction ensures exceptional strength and resilience.
- High-compression ratio of 12.50:1 for increased engine performance.
- Optimized heat transfer to cylinder walls for efficient combustion.
- Elliptical design promotes uniform bearing surfaces under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.
- Manufactured in Germany to exacting standards.
Specifications:
- Bore: 100.01mm
- Diameter: 99.96mm
- Display (cm³): 510
- Stroke (mm): 72.00
- Clearance (mm): 0.04
- Wossner Compression Ratio: 12.50:1
- OEM Compression Ratio: 11.90:1
- Dome Volume (cm³): -2.80
- Compression Height (mm): 24.40

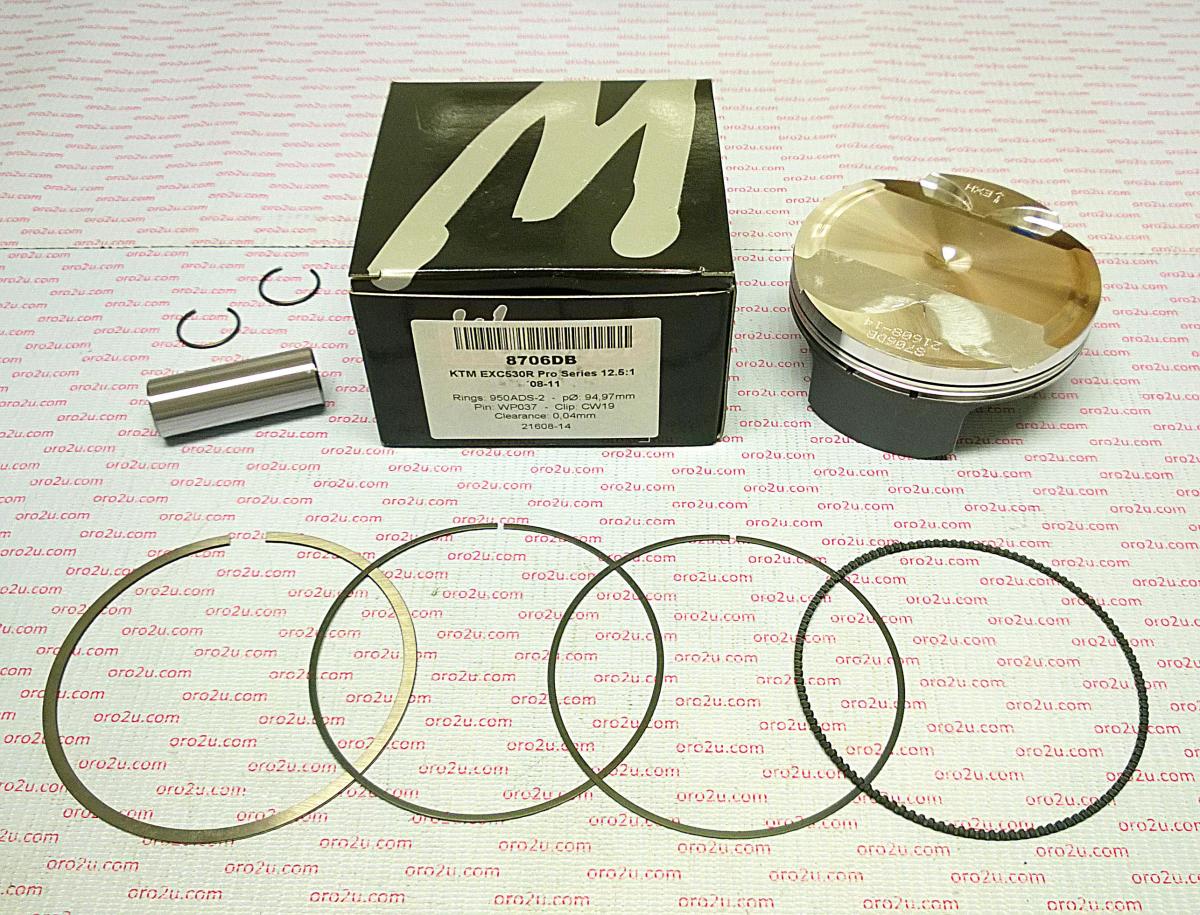

Included Components:
- Piston
- Lock P/N: CW19
- Pin P/N: WP037
- Ring Set P/N: 950ADS
Cross-Reference OEM Part Numbers:
- PROX 01.6528
- WOSSNER 8706
