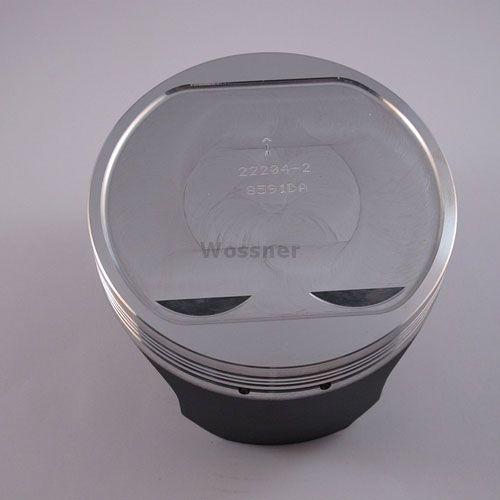

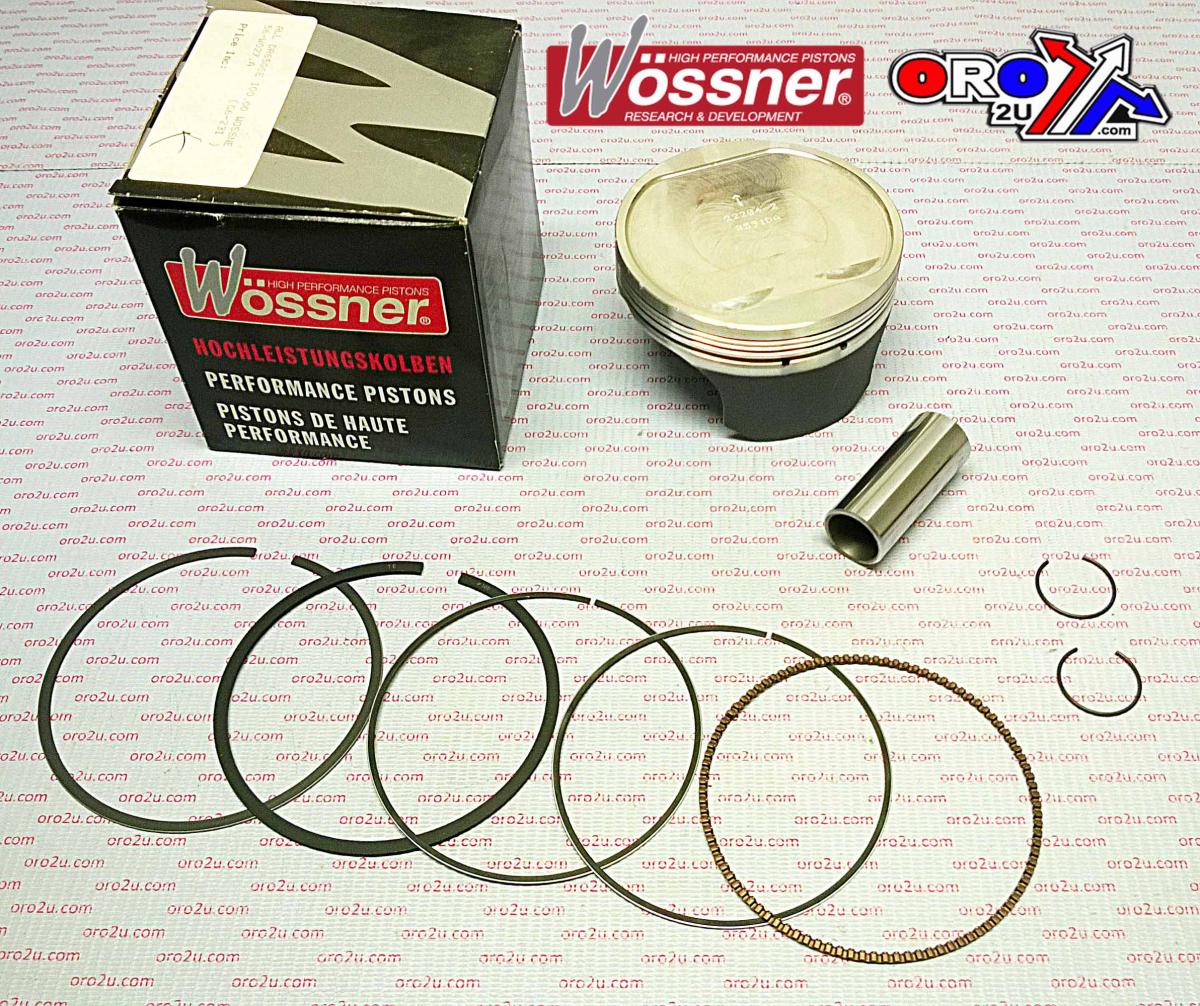

PISTON KIT DR650SE 100.00 A, SUZUKIWOSSNER 8591DA

Wossner High Compression Piston Kit for Enhanced Performance

Upgrade your engine with the Wossner forged piston kit, meticulously engineered for superior strength and high compression performance. This piston is designed to optimize heat transfer from the combustion chamber directly to the cylinder walls, ensuring efficient operation and longevity. Its innovative elliptical design provides a uniform bearing surface even under extreme heat expansion. This intelligent design minimizes localized pressure and distributes thrust loads evenly, effectively preventing piston collapse and maintaining structural integrity.

Manufactured in Germany, this Wossner piston kit represents precision engineering and exceptional quality.

Key Features:

• Forged Construction: Offers enhanced durability and resistance to extreme operating conditions.
• Optimized Heat Transfer: Promotes efficient cooling and improved overall engine performance.
• Elliptical Design: Prevents localized pressure points and eliminates the risk of piston collapse by distributing loads evenly.
• High Compression: Designed for increased engine efficiency and power output.

Specifications:

• Bore: 99.94 mm
• Piston Size: 100.00 mm
• Displacement: 644 cm³
• Stroke: 82.00 mm
• Clearance: 0.06 mm
• Wossner Compression Ratio: High Compression (HC)
• OEM Compression Ratio: 9.50:1
• Dome Volume: -6.70 cm³
• Compression Height: 28.70 mm

Component Cross-References:

• Lock: CW23
• Pin: WP024
• Ring Set: 1000XSY
